    Simrad AP48 Autopilot Controller — 000-13894-001, view 1
    Simrad

    Simrad AP48 Autopilot Controller

    SKU SIM-000-13894-001

    Our Price$1,209.00
    Low stock · 1 left
    Display resolution
    320 x 240, 4:3
    Display brightness
    600 nits
    Dimensions (W x H x D)
    177 x 115 x 56 mm (7 x 4.5 x 2.2 in)
    Supply voltage
    12 V DC (10.8-15.6 V DC)
    Maximum power consumption
    3 W (typical 2.3 W)
    Environmental rating
    IPx7; operating -25 to +65 C; storage -40 to +85 C
    NMEA 2000
    1 x NMEA 2000 Micro-C port, 5 LEN
    Weight
    0.51 kg (1.13 lbs)

    Stocked items typically ship the next business day from our US warehouse. 30-day returns on unused stocked items. Exclusions apply. Return policy · Shipping policy

    Shopping as a guest. Sign in to save your cart and check out as a dealer.

    About this product

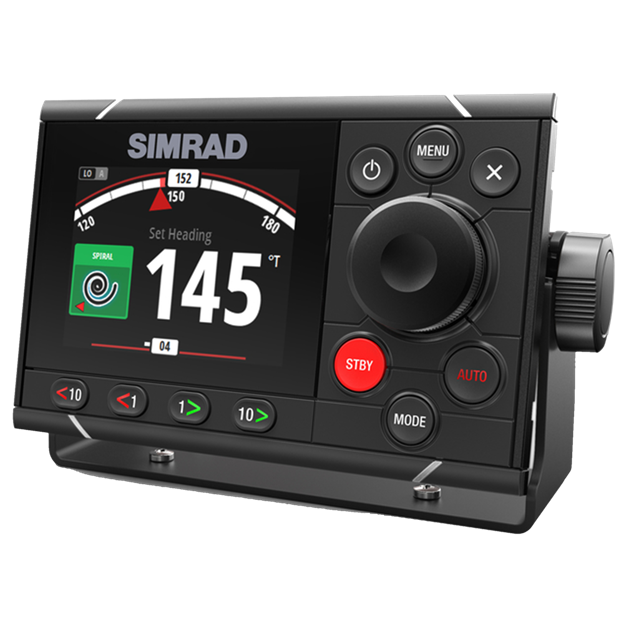

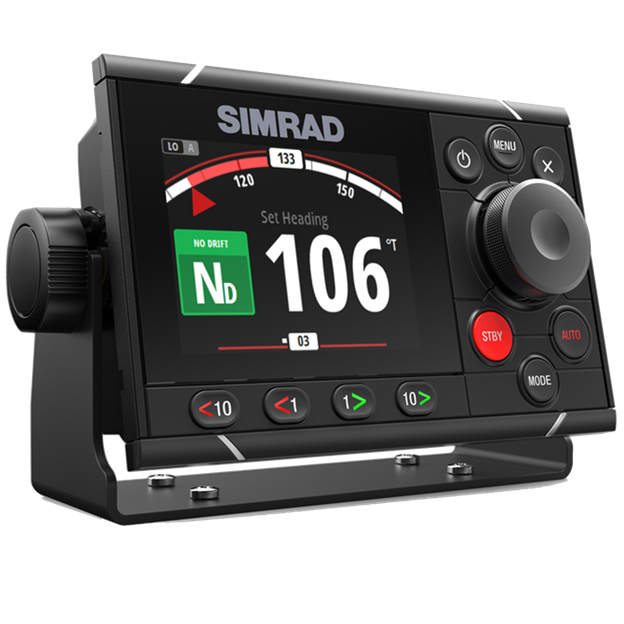

    Commercial-grade rotary autopilot controller with an optically bonded 4.1-inch colour display, large aluminium rotary dial, dedicated dodge keys, and controls designed for wet or gloved hands.

    • Optically bonded colour display
    • Large aluminium rotary control dial
    • Dedicated one-degree and ten-degree dodge keys
    • Flush or optional bracket mounting
    • IPx7 waterproof rating
    • NMEA 2000 connectivity

    Manufacturer part number: 000-13894-001.

    Verified product information

    Display resolution
    320 x 240, 4:3
    Display brightness
    600 nits
    Dimensions (W x H x D)
    177 x 115 x 56 mm (7 x 4.5 x 2.2 in)
    Supply voltage
    12 V DC (10.8-15.6 V DC)
    Maximum power consumption
    3 W (typical 2.3 W)
    Environmental rating
    IPx7; operating -25 to +65 C; storage -40 to +85 C
    NMEA 2000
    1 x NMEA 2000 Micro-C port, 5 LEN

    Product details

    Weight
    0.51 kg (1.13 lbs)
