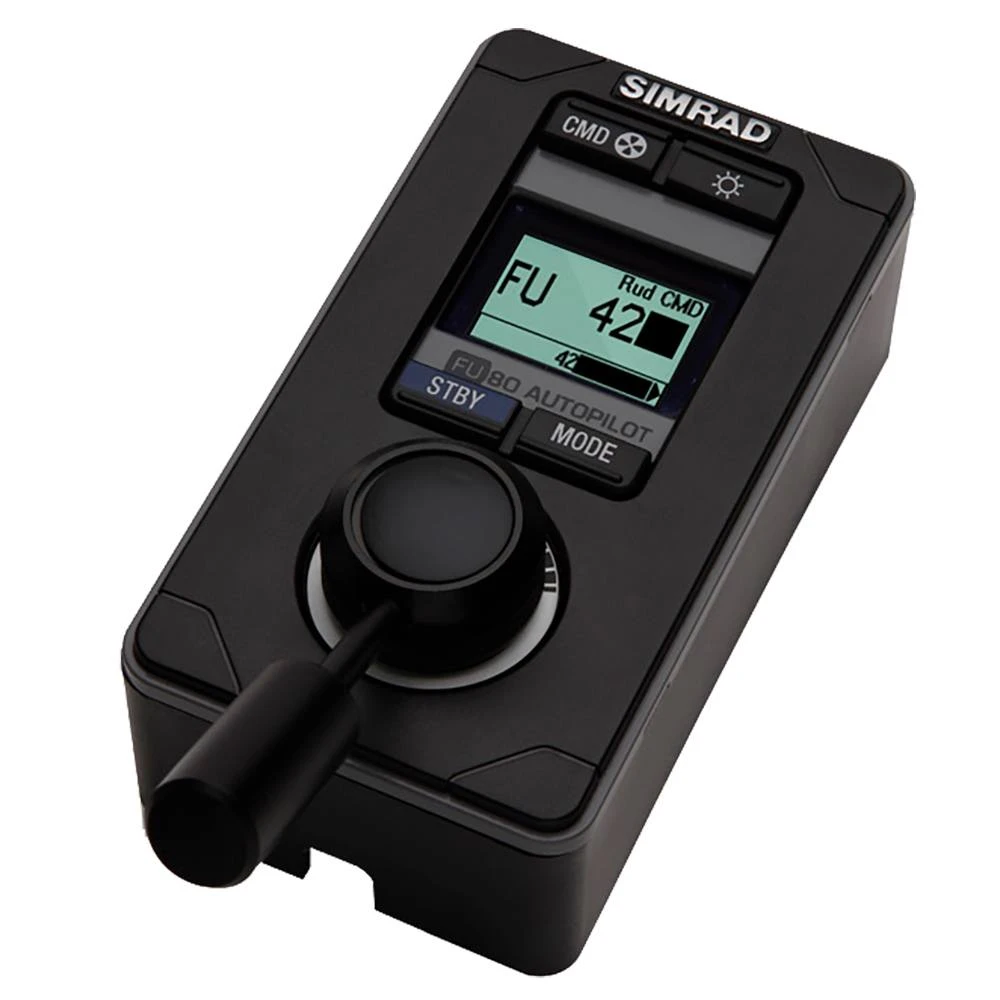

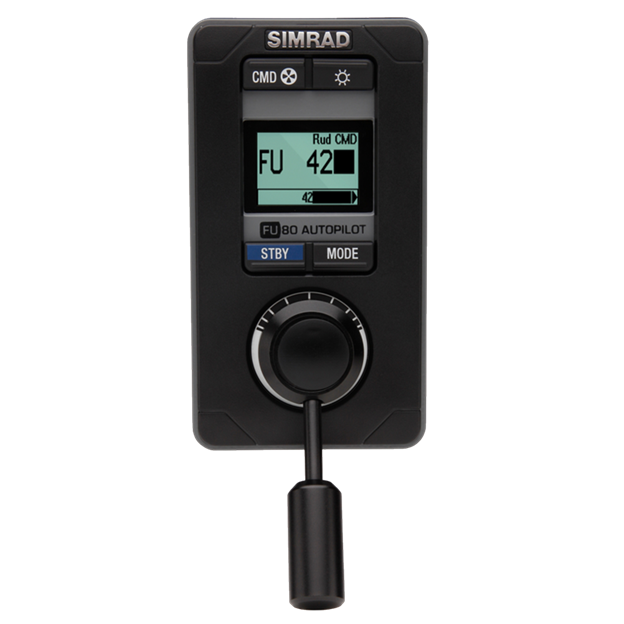

Simrad FU80 Remote Control with Display
SKU SIM-000-10183-001
- Function
- Follow-up steering; lever can be rotated 70 degrees to port or starboard from centre and rudder moves to the corresponding commanded angle.
- Viewing direction
- 6 o'clock.
- Interface and cable
- Factory-connected 6 m (19.7 ft) Micro-C drop cable; CAN/NMEA 2000. SimNet via optional SimNet-to-Micro-C cable.
- Power/current
- Powered via CAN bus or SimNet; off network current <20 mA (NMEA 2000 LEN 1), on at maximum illumination <110 mA (LEN 3).
- Weight
- 0.5 kg (1.10 lb).
- Environment
- -25 to +55 C (-13 to +131 F); exposed front weather protection corresponding to IPX6; compass-safe distance 0.4 m.
- Mounting/dimensions
- Flush panel or optional bulkhead/desktop frame. Installation drawing identifies the remote envelope as 205 mm x 80 mm x 40 mm (8.05 x 3.15 x 1.55 in); mounting template is the controlling cutout source.
- Display
- 1.7-inch integrated display; 128 x 64 pixels; black and white
Contact us to confirm availability and shipping time. 30-day returns on unused stocked items. Exclusions apply. Return policy · Shipping policy
Shopping as a guest. Sign in to save your cart and check out as a dealer.
About this product
FU80 wired Follow Up steering remote for Simrad autopilot systems, with direct rudder-angle control through a lever and an integrated display.
- Follow Up steering lever angle directly corresponds to rudder angle
- Integrated 1.7-inch display
- Lever and rudder hold the commanded angle when released
- Flush-mount or desktop/bulkhead mounting
- Plug-and-play NMEA 2000 connectivity
Manufacturer part number: 000-10183-001.
Verified product information
- Function
- Follow-up steering; lever can be rotated 70 degrees to port or starboard from centre and rudder moves to the corresponding commanded angle.
- Viewing direction
- 6 o'clock.
- Interface and cable
- Factory-connected 6 m (19.7 ft) Micro-C drop cable; CAN/NMEA 2000. SimNet via optional SimNet-to-Micro-C cable.
- Power/current
- Powered via CAN bus or SimNet; off network current <20 mA (NMEA 2000 LEN 1), on at maximum illumination <110 mA (LEN 3).
- Weight
- 0.5 kg (1.10 lb).
- Environment
- -25 to +55 C (-13 to +131 F); exposed front weather protection corresponding to IPX6; compass-safe distance 0.4 m.
- Mounting/dimensions
- Flush panel or optional bulkhead/desktop frame. Installation drawing identifies the remote envelope as 205 mm x 80 mm x 40 mm (8.05 x 3.15 x 1.55 in); mounting template is the controlling cutout source.
Product details
- Display
- 1.7-inch integrated display; 128 x 64 pixels; black and white
- Lever Travel
- 70 degrees to port or starboard from mid-position
- Water Resistance
- IPX6
- Storage Temperature
- -32 to +70 C
- Operating Temperature
- 0 to +55 C
