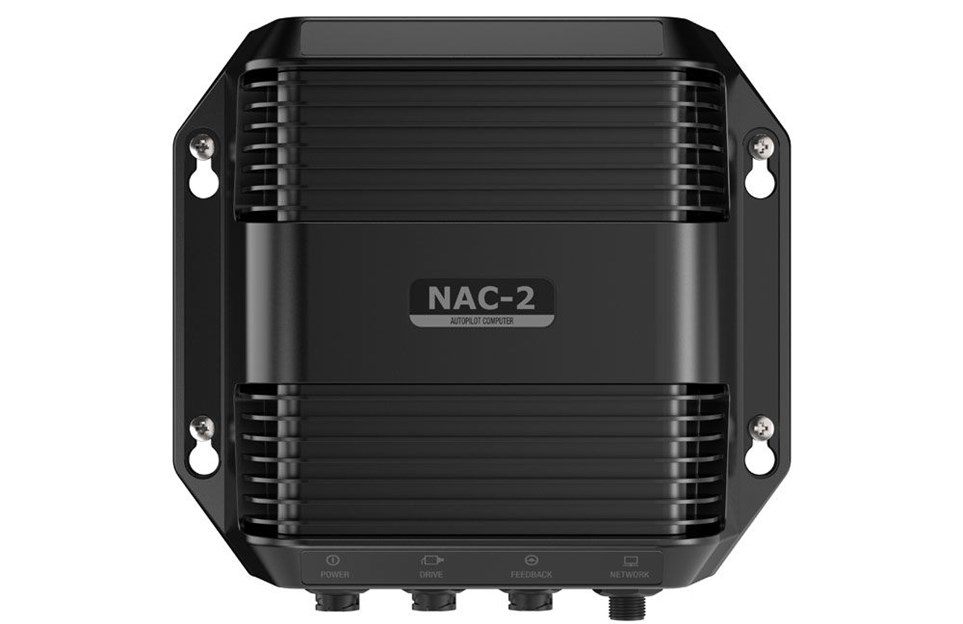

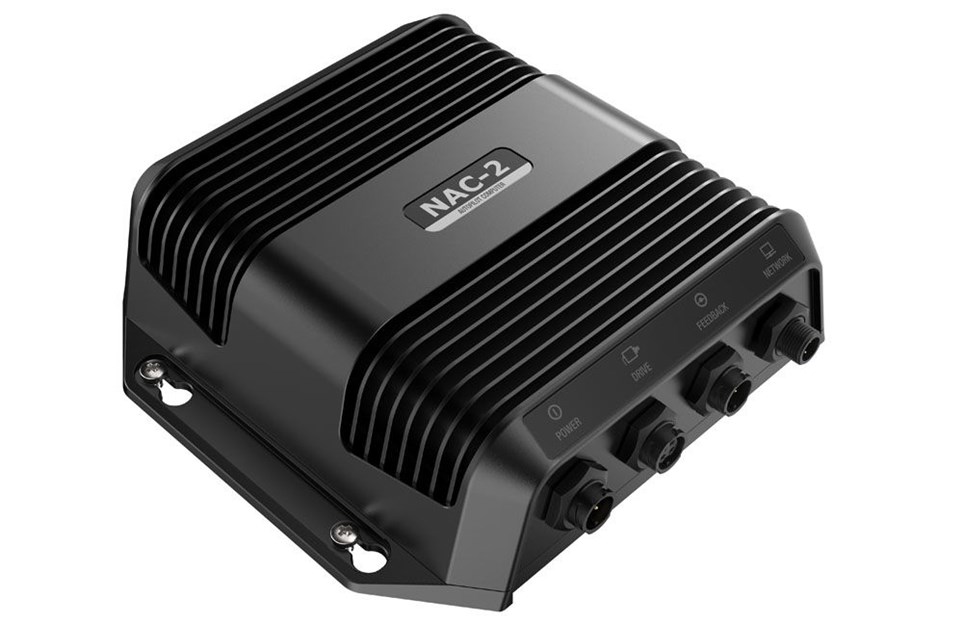

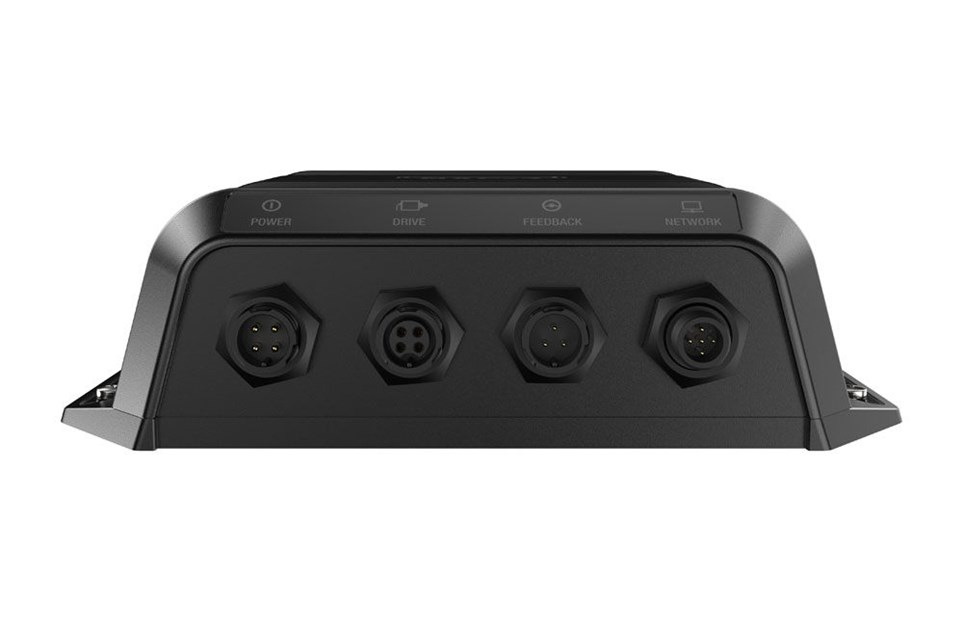

Simrad NAC-2 Autopilot Computer
SKU SIM-000-13249-001
- Recommended vessel size
- Up to 10 m (35 ft)
- Drive compatibility
- Low-current hydraulic steering pumps (including RPU80), mechanical drives (including SD10), hydraulic linear drives (including HLD350), and solenoid valves
- Feedback support
- Simrad VRF; SimNet/NMEA 2000 RF25; resistive rudder feedback sensors
- Networking
- NMEA 2000 connectivity to heading sensors, rudder feedbacks, autopilot controllers and multifunction displays
- System role
- Centre of the autopilot system; electronics to operate and interface with other key components
- Supply voltage
- 9–31.2 V DC
- Maximum power consumption
- 500 W
- Recommended fuse
- 20 A
Contact us to confirm availability and shipping time. 30-day returns on unused stocked items. Exclusions apply. Return policy · Shipping policy
Shopping as a guest. Sign in to save your cart and check out as a dealer.
About this product
Autopilot computer designed for boats up to 10 metres (33 feet), suitable for low-current hydraulic pumps, mechanical drive units or solenoid valves.
- Designed for boats up to 10 m (33 ft)
- Low-current pump, mechanical drive and solenoid-valve support
- 8 A continuous / 16 A peak drive rating
- Standard output
- Virtual rudder feedback
- NMEA 2000 connectivity
Manufacturer part number: 000-13249-001.
Verified product information
- Recommended vessel size
- Up to 10 m (35 ft)
- Drive compatibility
- Low-current hydraulic steering pumps (including RPU80), mechanical drives (including SD10), hydraulic linear drives (including HLD350), and solenoid valves
- Feedback support
- Simrad VRF; SimNet/NMEA 2000 RF25; resistive rudder feedback sensors
- Networking
- NMEA 2000 connectivity to heading sensors, rudder feedbacks, autopilot controllers and multifunction displays
- System role
- Centre of the autopilot system; electronics to operate and interface with other key components
Product details
- NMEA 2000
- 1 Micro-C port, 1 LEN
- Drive Output
- 12/24 V DC, 10 mA minimum, 3 A maximum
- Supply Voltage
- 9–31.2 V DC
- Rudder Feedback
- Variable voltage/resistive 0–5 V
- Recommended Fuse
- 20 A
- Maximum Power Consumption
- 500 W
