    Simrad AP70 Mk2 Autopilot Controller — 000-14958-001, view 1
    Simrad

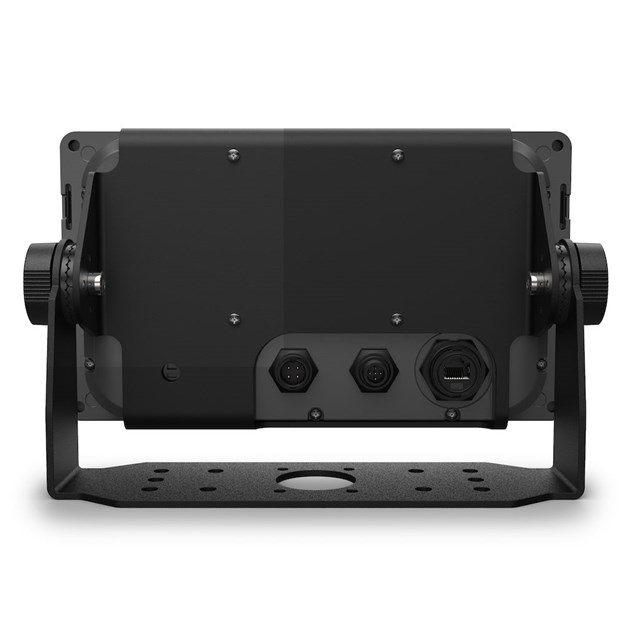

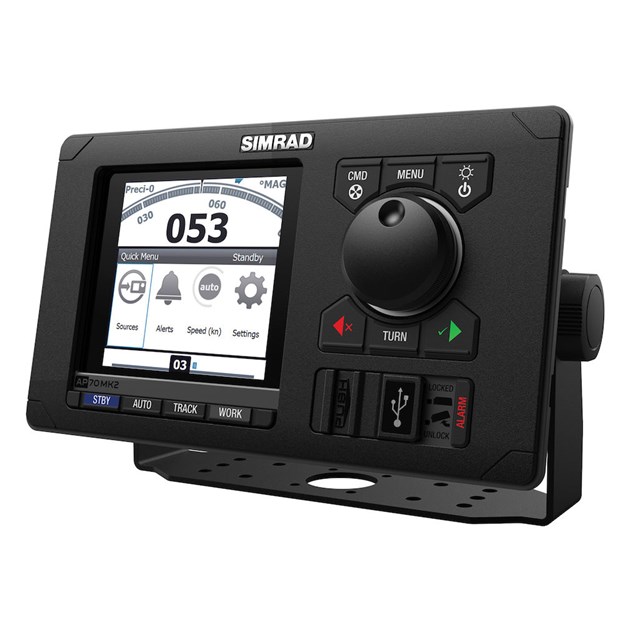

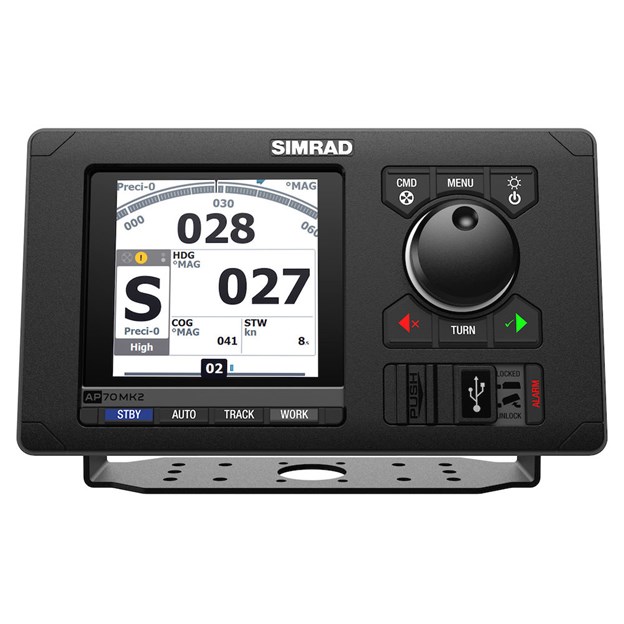

    Simrad AP70 Mk2 Autopilot Controller

    SKU SIM-000-14958-001

    Our Price$2,184.00
    Usually ships 6-8 days
    Local supply
    12/24 V DC +30/-10%
    Weight
    1.4 kg (3.1 lbs)
    Ingress/environment
    Exposed, IPx6
    Drive/rudder capacity
    Up to six rudders/thrusters; compatible with common rudder/drive types
    Display resolution
    480 x 480
    Supply voltage
    12/24 VDC +30/-10%
    Maximum power consumption
    0.7 A at 12 V; 0.4 A at 24 V
    Operating temperature
    -30°C to +55°C

    Contact us to confirm availability and shipping time. 30-day returns on unused stocked items. Exclusions apply. Return policy · Shipping policy

    Shopping as a guest. Sign in to save your cart and check out as a dealer.

    About this product

    Dedicated autopilot controller for professional mariners and commercial vessels; the AP70 Mk2 is an IMO/SOLAS autopilot controller with rotary control, dedicated buttons, configurable work modes and rudder/thruster integration.

    • Wheelmarked for SOLAS vessels (IMO, MED-B)
    • Advanced configuration and tuning options
    • Compatible with common rudder/drive types
    • Up to 6 rudders/thrusters integration
    • Heavy-duty rudder feedback support
    • Configurable work modes and low/high speed modes

    Manufacturer part number: 000-14958-001.

    Verified product information

    Local supply
    12/24 V DC +30/-10%
    Weight
    1.4 kg (3.1 lbs)
    Ingress/environment
    Exposed, IPx6
    Drive/rudder capacity
    Up to six rudders/thrusters; compatible with common rudder/drive types

    Product details

    Supply Voltage
    12/24 VDC +30/-10%
    Waterproof Rating
    Exposed IPx6
    Display Resolution
    480 x 480
    Operating Temperature
    -30°C to +55°C
    Maximum Power Consumption
    0.7 A at 12 V; 0.4 A at 24 V
