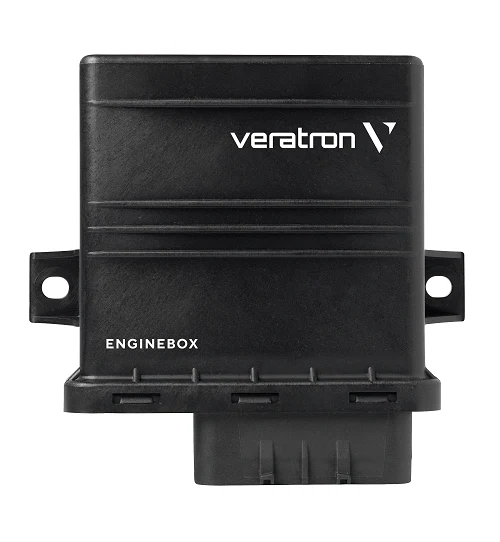

Veratron EngineBox Dual Engine Gateway
SKU VER-A2C1767000001
Dual-engine analog/J1939-to-NMEA 2000 gateway with extensive sensor inputs, compact IPX9k-f enclosure and PC configuration.
- Engine configuration
- Dual
- Nominal voltage
- 12/24 V
- Operating voltage
- 8–32 V
- Connectivity
- NMEA 2000, 2x SAE J1939
- Analog inputs
- 8x resistive, 2x frequency, 4x voltage, 2x 4–20 mA
- Protection
- IPX9k-f
- Dimensions
- 5.91 x 4.13 in (150 x 105 mm)
- Operating temperature
- -40 to +85 °C
Stocked items typically ship the next business day from our US warehouse. 30-day returns on unused stocked items. Exclusions apply. Return policy · Shipping policy
Shopping as a guest. Sign in to save your cart and check out as a dealer.
About this product
Veratron EngineBox Dual Engine Gateway is a centralized signal interface for converting conventional engine sensors and SAE J1939 engine data into NMEA 2000. It is designed for refits and OEM installations where one gateway needs to gather several analog signals rather than using one converter per sensor.
Key features
- 2x SAE J1939 engine interface
- Analog inputs: 8x resistive, 2x frequency, 4x voltage, 2x 4–20 mA
- Embedded analog-to-NMEA 2000 gateway
- Embedded J1939-to-NMEA 2000 gateway
- NMEA 2000 Micro-C connection
- Compact status-LED enclosure
- PC-based setup
- ISO 8846 engine-compartment compliant design
Integration and functionality
EngineBox accepts frequency, resistive, voltage and 4–20 mA signals plus SAE J1939. Supported values are converted and distributed over NMEA 2000 so compatible displays can consume them. This is particularly useful when bringing older analog engines or mixed-signal machinery into a modern NMEA 2000 helm.
Installation
The enclosure is approximately 150 x 105 mm. Mount it in a protected, serviceable location with access to the multi-pin harness and Micro-C NMEA connector, and follow the manual for sensor ground/reference wiring and engine-instance setup.
Electrical and environmental
12/24 V nominal with 8–32 V operating range. The enclosure is rated IPX9k-f and designed for engine-room temperatures down to -40 °C and up to +85 °C.
Product details
- Engine configuration
- Dual
- Nominal voltage
- 12/24 V
- Operating voltage
- 8–32 V
- Connectivity
- NMEA 2000, 2x SAE J1939
- Analog inputs
- 8x resistive, 2x frequency, 4x voltage, 2x 4–20 mA
- Protection
- IPX9k-f
- Dimensions
- 5.91 x 4.13 in (150 x 105 mm)
- Operating temperature
- -40 to +85 °C
- Series
- EngineBox
- Function
- Multifunctional
- Ip Class
- IPX9k-f
- Engine Count
- Dual
- Gateway Type
- Analog / J1939 to NMEA 2000
- Output Signal
- NMEA 2000
