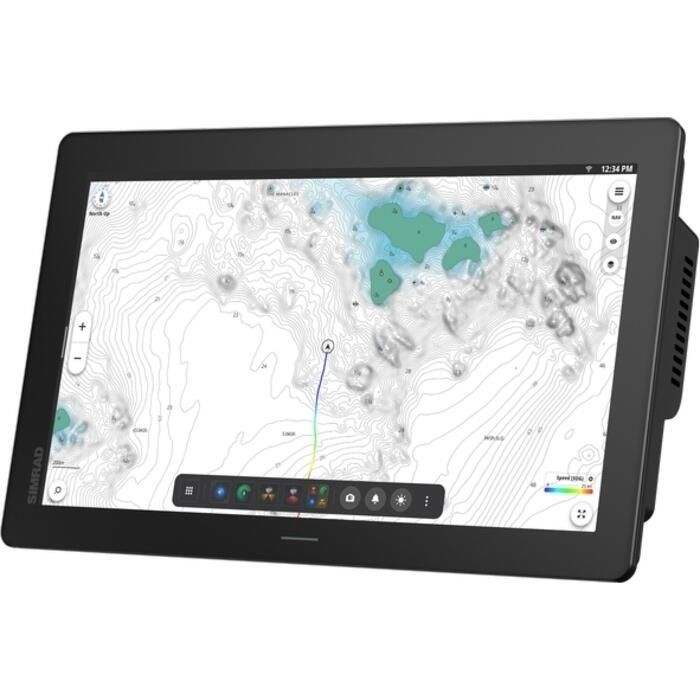

Simrad NSO 4 Multifunction Display with C-MAP Discover X North America Chart (16-inch)
SKU SIM-000-16559-001
- Display
- 16-inch IPS full multi-touch display; 1920 x 1080; >1200 nits typical
- Power
- 12/24 V DC (10.5–31 V DC); 5 A fuse; maximum power consumption 33 W for the 16-inch model
- Connectivity
- Wi-Fi 5 (IEEE 802.11ac-2013); four Gigabit Ethernet ports; one NMEA 2000 Micro-C port; two microSD slots; USB 2.0/3.0; one video input and one video output
- Physical
- 4.23 kg (9.32 lb) with rear-mount screws; rear mount; compass-safe distance 205 cm (80.70 in) for display unit only
- Environment
- Operating −15°C to +55°C; IPX6 and IPX7
- GNSS
- External GPS required
- Resolution
- 1920 x 1080 px
- Display type
- IPS, Full-HD, sunlight viewable
Contact us to confirm availability and shipping time. 30-day returns on unused stocked items. Exclusions apply. Return policy · Shipping policy
Shopping as a guest. Sign in to save your cart and check out as a dealer.
About this product
16-inch NSO 4 multifunction display with C-MAP Discover X North America chart, Full-HD sunlight-viewable SolarMax HD touchscreen and an 8-core processor for offshore navigation.
- 8-core processor
- 16-inch Full-HD 1920 x 1080 IPS display
- Sunlight-viewable SolarMax HD touchscreen
- Supports up to 10 NEON operating-system displays in multi-helm systems
- 4-way IP video support and HDMI video in/out
Manufacturer part number: 000-16559-001.
Verified product information
- Display
- 16-inch IPS full multi-touch display; 1920 x 1080; >1200 nits typical
- Power
- 12/24 V DC (10.5–31 V DC); 5 A fuse; maximum power consumption 33 W for the 16-inch model
- Connectivity
- Wi-Fi 5 (IEEE 802.11ac-2013); four Gigabit Ethernet ports; one NMEA 2000 Micro-C port; two microSD slots; USB 2.0/3.0; one video input and one video output
- Physical
- 4.23 kg (9.32 lb) with rear-mount screws; rear mount; compass-safe distance 205 cm (80.70 in) for display unit only
- Environment
- Operating −15°C to +55°C; IPX6 and IPX7
- GNSS
- External GPS required
Product details
- Video In
- 1 HDMI, up to 1920 x 1080P
- Blackbox
- No
- Resolution
- 1920 x 1080 px
- Screen Size
- 16"
- Display Type
- IPS, Full-HD, sunlight viewable
- Display Weight
- 4.23 kg (9.23 lb), display with rear mount screws
- Supported Charts
- C-MAP DISCOVER X, C-MAP REVEAL X, CMOR Mapping
- Display Dimensions
- 391 x 243.95 x 78.79 mm (15.4 x 9.6 x 3.10 in)
- Built In Chart Type
- C-MAP DISCOVER
