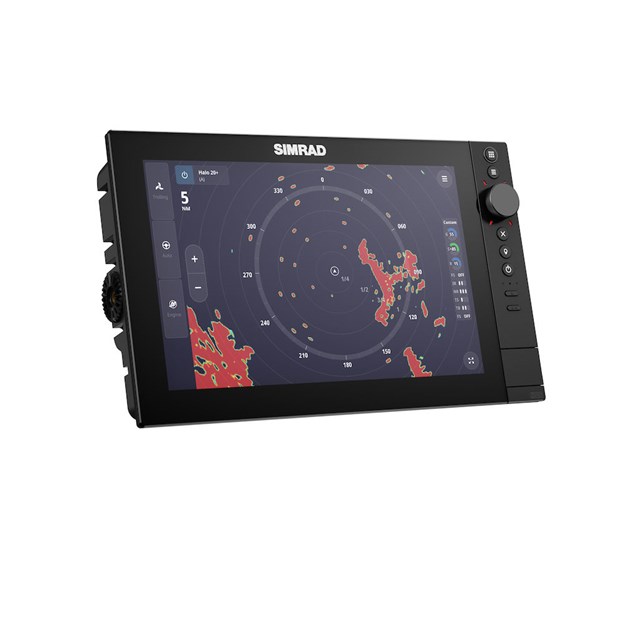

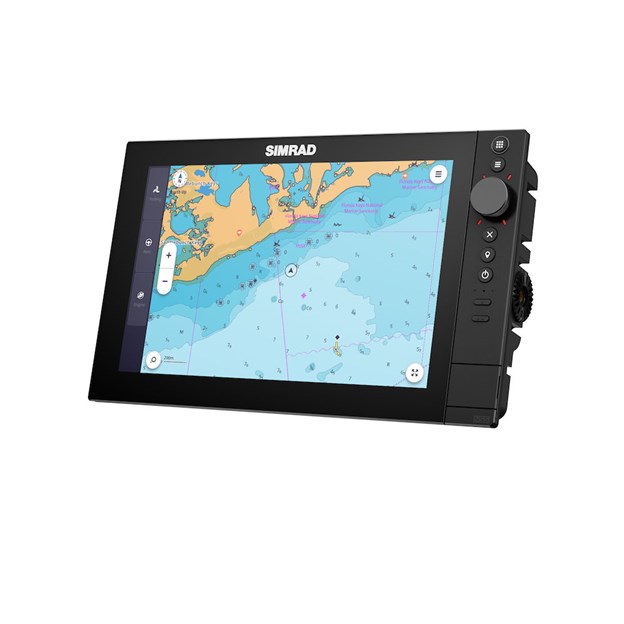

    Simrad NSS 4 - 12-inch Chartplotter and Fishfinder — 000-16016-001, view 1
    Simrad

    Simrad NSS 4 - 12-inch Chartplotter and Fishfinder

    SKU SIM-000-16016-001

    Our Price$5,599.00
    Usually ships 6-8 days
    Power
    12/24 V DC (10–31.2 V DC); 5 A fuse; maximum power consumption 40 W
    Physical
    Display-only weight 2.8 kg (6.17 lb); compass safe distance 65 cm (2.13 ft); gimbal-bracket or rear-mount capable
    Connectivity
    Wi-Fi 5 (IEEE 802.11ac-2013); one X-Coded M12 GbE and one yellow 5-pin Ethernet port; one NMEA 2000 Micro-C port; two microSD slots
    Built-in sonar/imaging
    Low/Medium/High Chirp up to 1 kW RMS; DownScan 455/800/700 kHz CHIRP and 1200 kHz CHIRP; SideScan 455/800 kHz, 455 kHz CHIRP and 1200 kHz CHIRP
    Display
    12 inches; 1280 x 800 px
    Unit weight
    2.8 kg
    Power consumption max
    40 W
    Blackbox
    No

    Contact us to confirm availability and shipping time. 30-day returns on unused stocked items. Exclusions apply. Return policy · Shipping policy

    Shopping as a guest. Sign in to save your cart and check out as a dealer.

    About this product

    NSS 4 12-inch chartplotter and fishfinder with world basemap.

    • Lightning fast Qualcomm 8-core processor
    • Trio of hybrid controls: touchscreen, rotary dial and keypad
    • Full touchscreen multi-touch display
    • NMEA 2000 connectivity
    • Active Imaging HD support
    • Dual-channel 1kW CHIRP echosounder

    Manufacturer part number: 000-16016-001.

    Verified product information

    Power
    12/24 V DC (10–31.2 V DC); 5 A fuse; maximum power consumption 40 W
    Physical
    Display-only weight 2.8 kg (6.17 lb); compass safe distance 65 cm (2.13 ft); gimbal-bracket or rear-mount capable
    Connectivity
    Wi-Fi 5 (IEEE 802.11ac-2013); one X-Coded M12 GbE and one yellow 5-pin Ethernet port; one NMEA 2000 Micro-C port; two microSD slots
    Built-in sonar/imaging
    Low/Medium/High Chirp up to 1 kW RMS; DownScan 455/800/700 kHz CHIRP and 1200 kHz CHIRP; SideScan 455/800 kHz, 455 kHz CHIRP and 1200 kHz CHIRP

    Product details

    Display
    12 inches; 1280 x 800 px
    Blackbox
    No
    Unit Weight
    2.8 kg
    Screen Size
    12"
    Built In Sonar
    Yes
    Power Consumption Max
    40 W
