Simrad NSO evo3S 19-inch MFD Display Only
SKU SIM-000-15049-001
- Display size
- 19"
- Display brightness
- 1200 nits
- Viewing angles
- 80° top/bottom, 80° left/right
- Dimensions (W × H × D)
- 478.1 × 305 × 83 mm; with bracket: 509.9 × 348 × 214.6 mm
- Power consumption
- max 50 W ± 4 W
- Supply voltage
- 10–32 V DC
- Processor
- iMX 8 integrated six-core processor
- Screen brightness
- 1200 nits
Contact us to confirm availability and shipping time. 30-day returns on unused stocked items. Exclusions apply. Return policy · Shipping policy
Shopping as a guest. Sign in to save your cart and check out as a dealer.
About this product

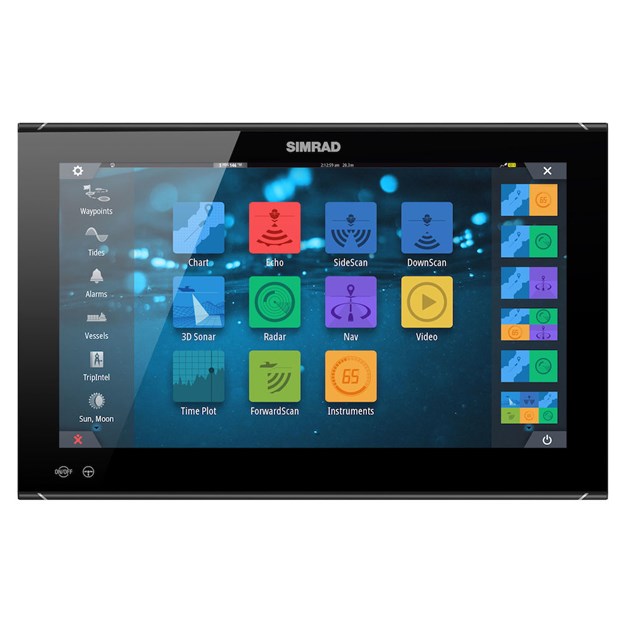

19-inch NSO evo3S multifunction display with ultra-bright Full HD touchscreen, wireless connectivity, C-MAP basemap and integration with radar, sonar, autopilot and other onboard systems.
- 19-inch Full HD 1920x1080 display
- 1200-nit screen with 80-degree viewing angles
- Internal Bluetooth and 802.11b/g/n Wi-Fi
- 3 x 100 Mbit/s Ethernet ports and NMEA 2000
- Touchscreen with OP40/OP50 controller support
- IPX6 front protection when correctly panel mounted
Manufacturer part number: 000-15049-001.
Verified product information
- Display size
- 19"
- Display brightness
- 1200 nits
- Viewing angles
- 80° top/bottom, 80° left/right
- Dimensions (W × H × D)
- 478.1 × 305 × 83 mm; with bracket: 509.9 × 348 × 214.6 mm
- Power consumption
- max 50 W ± 4 W
- Supply voltage
- 10–32 V DC
- Processor
- iMX 8 integrated six-core processor
Product details
- Blackbox
- No
- Screen Size
- 19"
- Screen Brightness
- 1200 nits
- Waterproof Rating
- IPX6 front when panel mounted correctly
- Display Resolution
- 1920x1080
- Weight
- 4.8 kg (10.5 lb)
