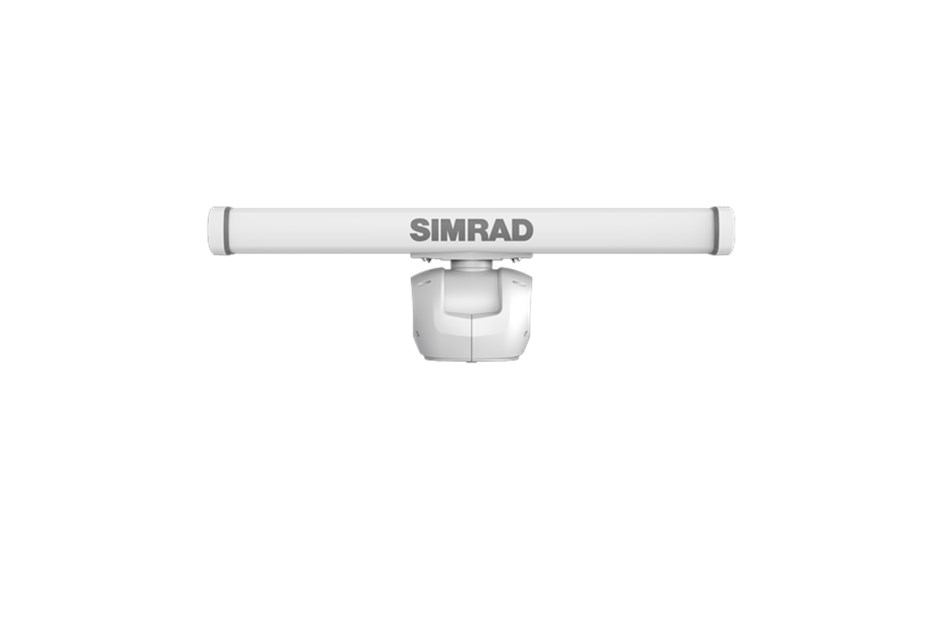

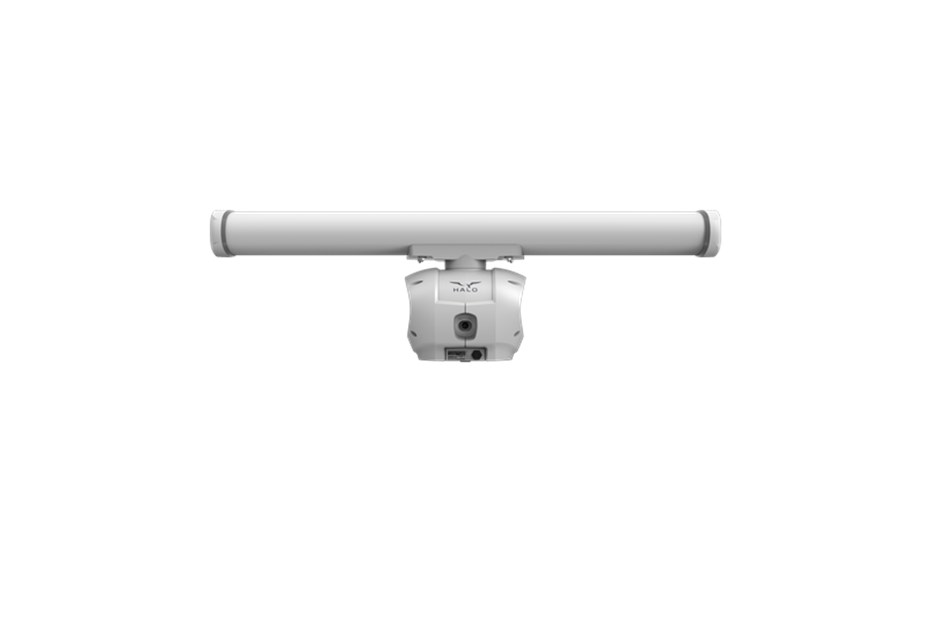

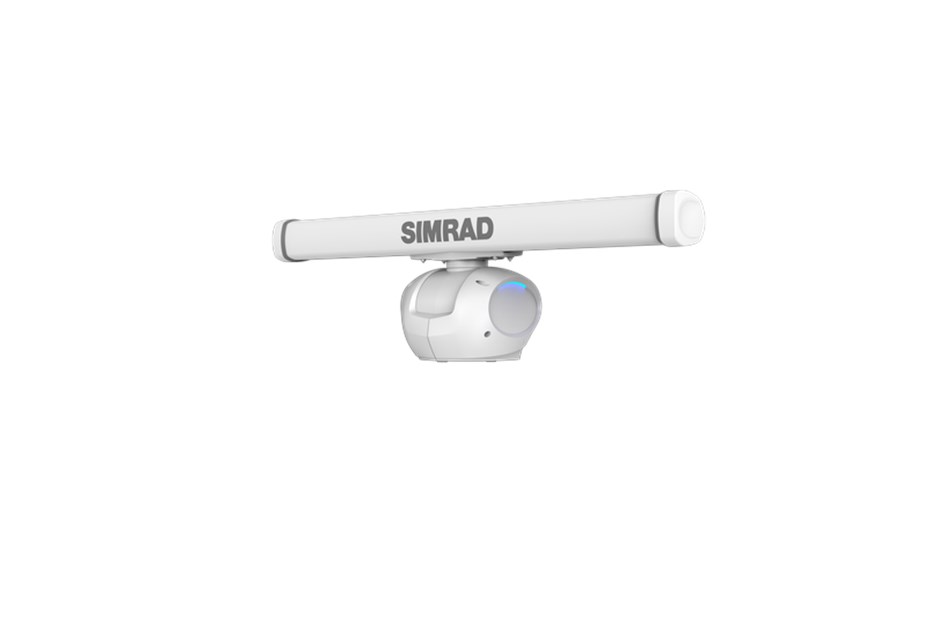

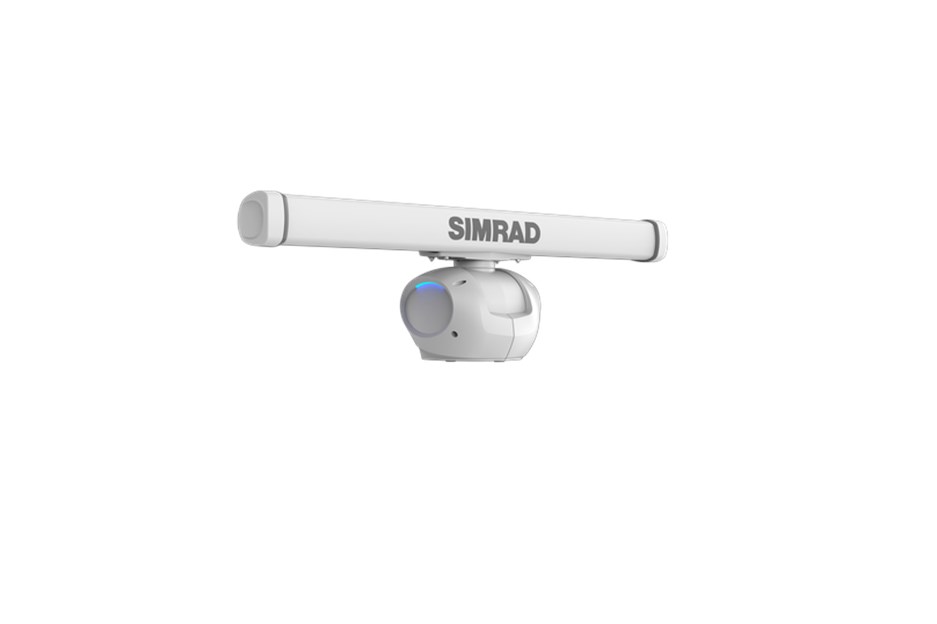

Simrad HALO 3004 Open Array Radar
SKU SIM-000-15763-001
- Included configuration
- 4-foot array with RI-50 and 20 m cable
- Kit weight
- 30 kg (66.1 lb)
- Power consumption
- 250 W peak at maximum wind velocity; 45–75 W average at zero wind velocity
- Dimensions
- Height 429 mm (16.88 in) with antenna mounted
- Antenna rotation
- 16–48 RPM depending on operating mode
- Maximum range
- 96 nm
- Wind rating
- 80 knots, all antenna sizes
- Radar technology
- Pulse compression
Contact us to confirm availability and shipping time. 30-day returns on unused stocked items. Exclusions apply. Return policy · Shipping policy
Shopping as a guest. Sign in to save your cart and check out as a dealer.
About this product
HALO 3000-series open-array radar with 4-foot array, RI-50 power supply and 20 m power/Ethernet cable; advanced Pulse Compression technology and Bird+ mode are designed to detect birds, hazards and storms over short and long distances.
- 4-foot open array radar
- 130 W HALO 3000 radar technology
- Bird+ mode for finding schools of fish at up to 8 nm
- AutoTrack and ZoneTrack target tracking
- Harbour, Offshore, Bird and Weather preset modes
- Includes RI-50 power supply and 20 m power/Ethernet cable
Manufacturer part number: 000-15763-001.
Verified product information
- Included configuration
- 4-foot array with RI-50 and 20 m cable
- Kit weight
- 30 kg (66.1 lb)
- Power consumption
- 250 W peak at maximum wind velocity; 45–75 W average at zero wind velocity
- Dimensions
- Height 429 mm (16.88 in) with antenna mounted
- Antenna rotation
- 16–48 RPM depending on operating mode
- Maximum range
- 96 nm
- Wind rating
- 80 knots, all antenna sizes
- Radar technology
- Pulse compression
- Ethernet
- Via RI-50, 1 x 100 Mbit RJ45
Product details
- Supply Voltage
- 12 or 24 V DC into RI-50
- Compass Safe Distance
- Standard 1.0 m (3.3 ft); steer 0.5 m (1.6 ft)
- Operating Temperature
- -25 C to +55 C
- Maximum Power Consumption
- 250 W peak at 12 V
- Typical Power Consumption
- 45-75 W average at zero wind velocity
