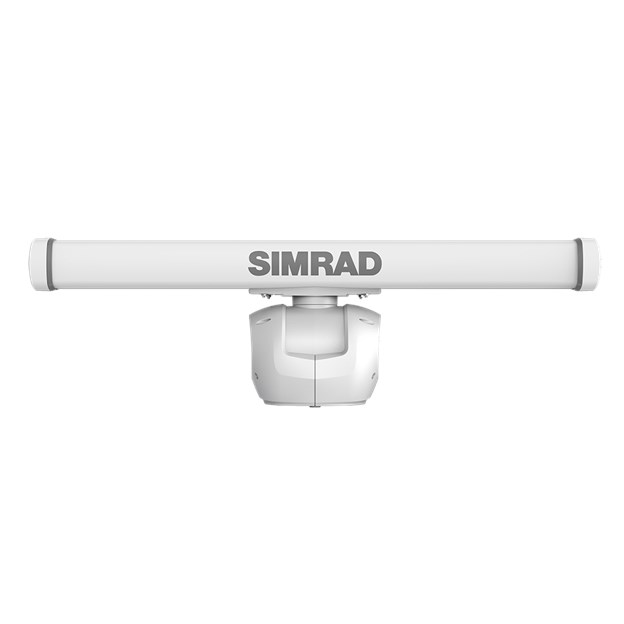

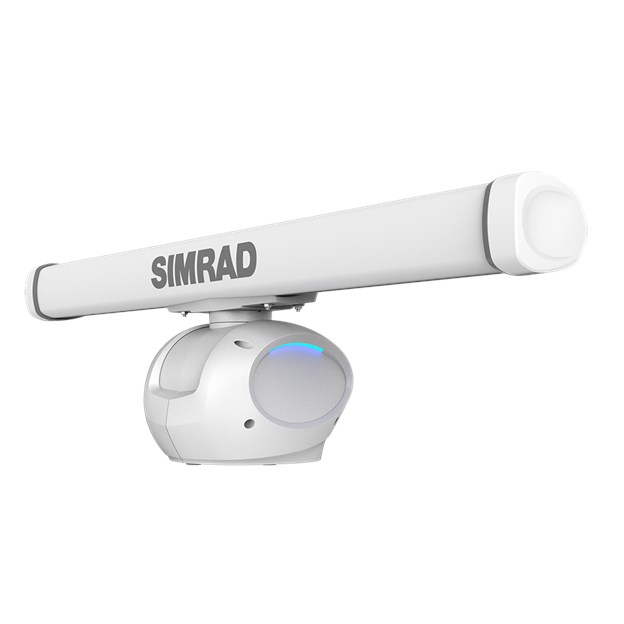

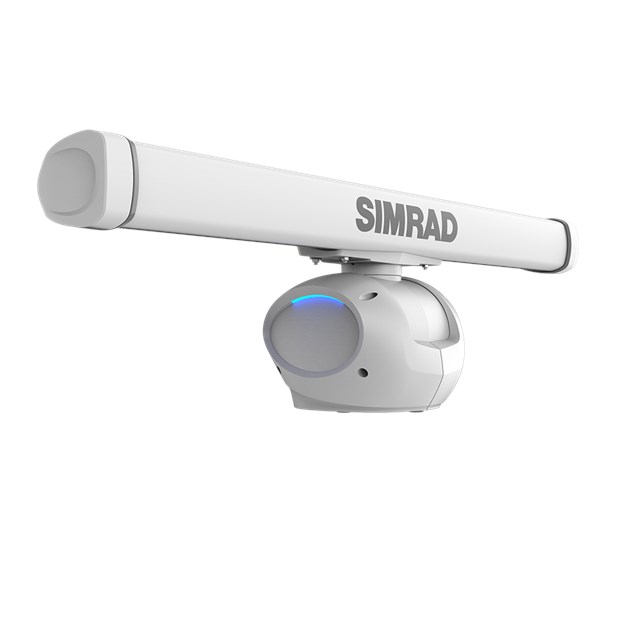

Simrad HALO 2004 Open Array Radar
SKU SIM-000-15759-001
- Included configuration
- 4-foot array with RI-50 and 20 m cable
- Kit weight
- 30 kg (66.1 lb)
- Power consumption
- 235 W peak at maximum wind velocity; 45–60 W average at zero wind velocity
- Supply voltage
- 12 or 24 V DC into RI-50; 12 V systems 10.8–15 V DC and 24 V systems 20–31.2 V DC
- Antenna rotation
- 16–48 RPM depending on operating mode
- Maximum range
- 72 nm
- Wind rating
- 80 knots, all antenna sizes
- Radar technology
- Pulse compression
Contact us to confirm availability and shipping time. 30-day returns on unused stocked items. Exclusions apply. Return policy · Shipping policy
Shopping as a guest. Sign in to save your cart and check out as a dealer.
About this product
HALO 2004 open-array radar with 4-foot array, RI-50 and 20 m cable.
- 50 W pulse-compression radar
- 4-foot open array
- 20 m cable included
- 12 or 24 V DC supply into RI-50
- IPX6 waterproof rating
Manufacturer part number: 000-15759-001.
Verified product information
- Included configuration
- 4-foot array with RI-50 and 20 m cable
- Kit weight
- 30 kg (66.1 lb)
- Power consumption
- 235 W peak at maximum wind velocity; 45–60 W average at zero wind velocity
- Supply voltage
- 12 or 24 V DC into RI-50; 12 V systems 10.8–15 V DC and 24 V systems 20–31.2 V DC
- Antenna rotation
- 16–48 RPM depending on operating mode
- Maximum range
- 72 nm
- Wind rating
- 80 knots, all antenna sizes
- Radar technology
- Pulse compression
- Ethernet
- Via RI-50, 1 x 100 Mbit RJ45
Product details
- Array
- 4 ft
- Cable
- 20 m
- Dimensions
- 324 mm x 429 mm x 339 mm (W x H x D)
- Waterproof Rating
- IPX6
