Simrad R5024 30U/12S CAT 2 Radar

SKU SIM-000-14622-001

Our Price$37,485.00

Usually ships 6-8 days

Radar band: S-Band
Configuration: 12-foot open array antenna with 30 kW up-mast transceiver
Approval/use: Type-approved CAT 2 SOLAS radar system
Cable run: Up to 65 m between transceiver and rest of system
Display resolution: 1920 x 1080
Antenna swing circle: 12-foot S-band antenna: 3695 mm
Radar display target tracking: Automatic background acquisition up to 2,500 targets within 24 NM; presentation up to 100 targets
Antenna: 12-foot open array

Contact us to confirm availability and shipping time. 30-day returns on unused stocked items. Exclusions apply. Return policy · Shipping policy

Shopping as a guest. Sign in to save your cart and check out as a dealer.

About this product

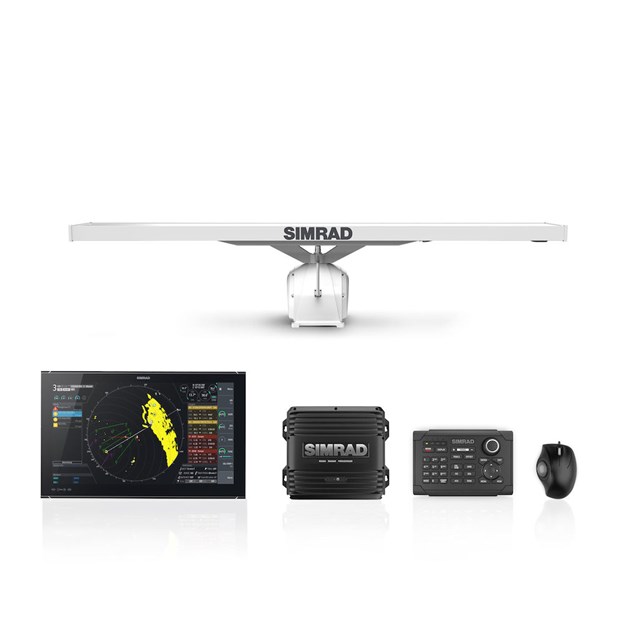

Type-approved S-Band radar system for CAT 2 SOLAS vessels, with a 12-foot open array and 30 kW up-mast transceiver.

S-Band radar for superior target detection in harsh weather
12-foot open array antenna with 30 kW up-mast transceiver
CAT 2 (H) SOLAS type approval
24-inch optically bonded widescreen display
Modular multi-radar and multi-station capability

Manufacturer part number: 000-14622-001.

Verified product information

Radar band: S-Band
Configuration: 12-foot open array antenna with 30 kW up-mast transceiver
Approval/use: Type-approved CAT 2 SOLAS radar system
Cable run: Up to 65 m between transceiver and rest of system
Display resolution: 1920 x 1080
Antenna swing circle: 12-foot S-band antenna: 3695 mm
Radar display target tracking: Automatic background acquisition up to 2,500 targets within 24 NM; presentation up to 100 targets

Product details

Antenna: 12-foot open array
Display: 24-inch widescreen; 1920 x 1080
Transceiver: 30 kW up-mast
Radar Power: 30000 W
Cable Support: Cable runs up to 65 metres
