Simrad NSS16 evo3S with C-MAP US Enhanced Charts

SKU SIM-000-15404-001

Our Price$5,499.00

Usually ships 6-8 days

Display size: 16"
Display resolution: 1920 x 1080
Screen brightness: 1200 nits
Viewing angles: 80 degrees top/bottom; 80 degrees left/right
Dimensions (W x H x D): 437 x 256 x 98 mm; with bracket 462 x 264 x 122 mm
Weight: 4.65 kg
Maximum power consumption: 40 W
Recommended fuse: 7.5 A

Contact us to confirm availability and shipping time. 30-day returns on unused stocked items. Exclusions apply. Return policy · Shipping policy

Shopping as a guest. Sign in to save your cart and check out as a dealer.

About this product

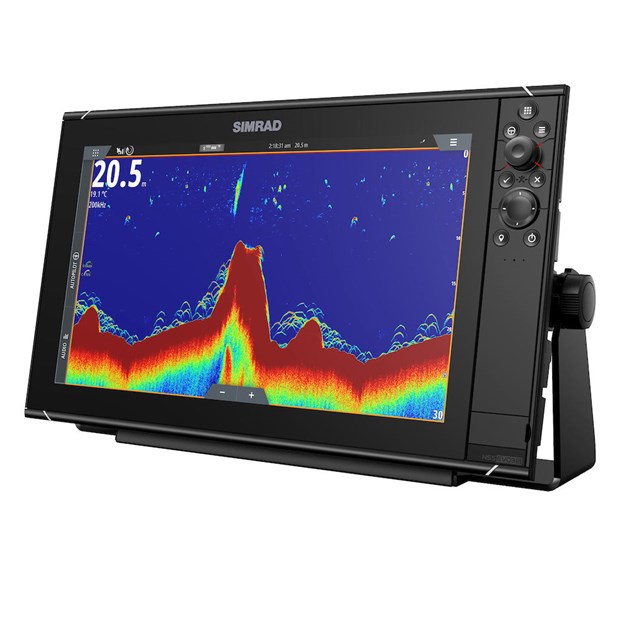

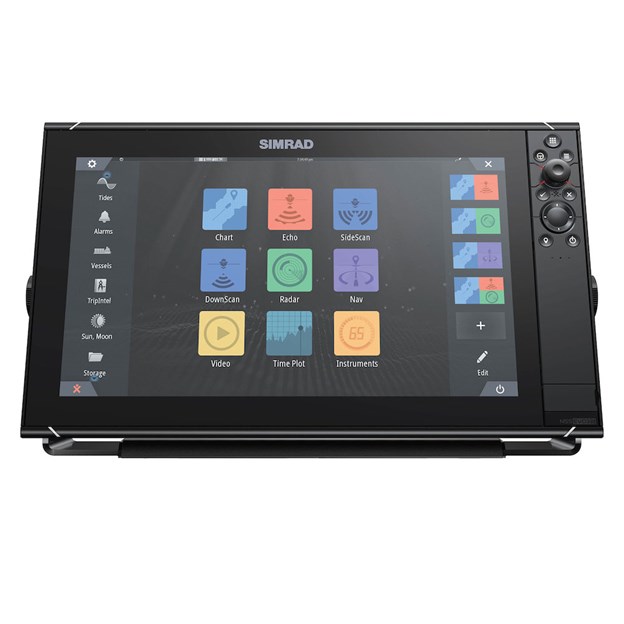

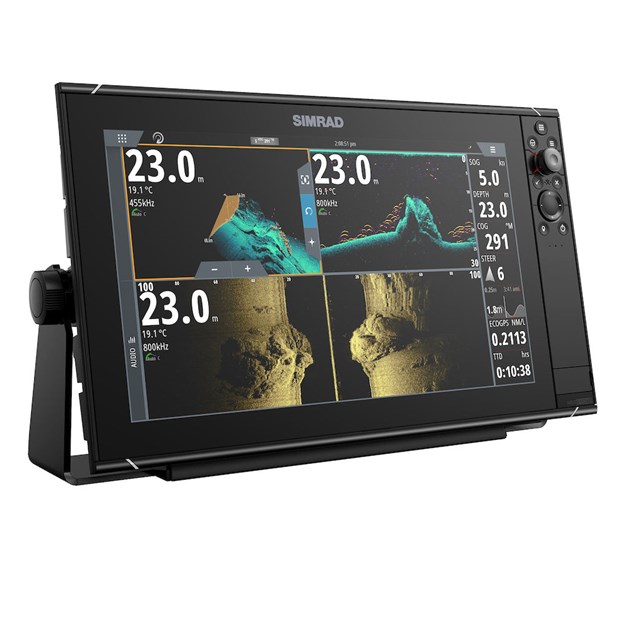

16-inch Full HD multifunction display with C-MAP charts, iMX 8 processor, SolarMAX IPS display, touchscreen/keypad operation, chartplotter, radar and sonar functionality.

16-inch Full HD display
1920 x 1080 resolution
1200-nit brightness
SolarMAX IPS with ultra-wide viewing angles
Built-in chartplotter, radar and sonar functions
1 kW CHIRP-enabled sonar

Manufacturer part number: 000-15404-001.

Verified product information

Display size: 16"
Display resolution: 1920 x 1080
Screen brightness: 1200 nits
Viewing angles: 80 degrees top/bottom; 80 degrees left/right
Dimensions (W x H x D): 437 x 256 x 98 mm; with bracket 462 x 264 x 122 mm
Weight: 4.65 kg
Maximum power consumption: 40 W
Recommended fuse: 7.5 A
Waterproof rating: IPX6 and IPX7
Cartography: Preloaded C-MAP US Enhanced Charts
Internal storage: 16 GB

Product details

Ethernet: 2 x 5-pin yellow connectors, 10/100 Mbit
Blackbox: No
NMEA 2000: 1 Micro-C port, 1 LEN
Screen Size: 16"
Maximum Power: 40 W
Supply Voltage: 10–31.2 V DC
Built In Sonar: Yes
Built In Chart Type: C-MAP US Enhanced
Operating Temperature: -15°C to +55°C
