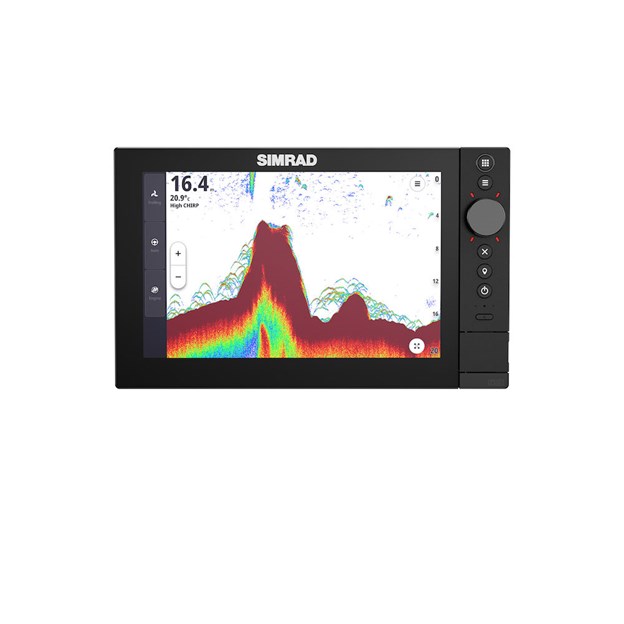

Simrad NSS4-10 10-inch Combo with U.S. C-MAP
SKU SIM-000-16012-001
- Display
- 10-inch full multi-touch display; resolution 1280 x 800; 1200 nits typical
- Power
- 12/24 V DC (10–31.2 V DC); 5 A fuse; maximum power consumption 28 W
- Physical
- Display-only weight 1.8 kg (3.97 lb); compass safe distance 35 cm (1.15 ft); gimbal-bracket or rear-mount capable
- Connectivity

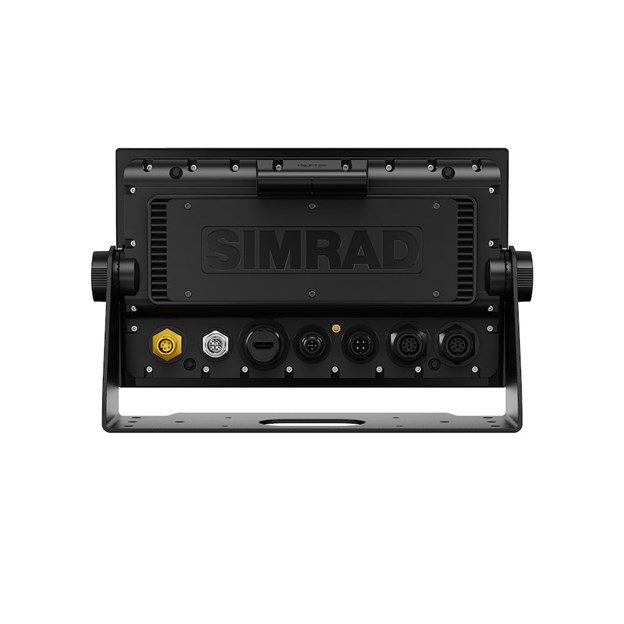

- Wi-Fi 5 (IEEE 802.11ac-2013); one X-Coded M12 GbE and one yellow 5-pin Ethernet port; one NMEA 2000 Micro-C port; two microSD slots
- Built-in sonar/imaging
- Low/Medium/High Chirp up to 1 kW RMS; DownScan 455/800/700 kHz CHIRP and 1200 kHz CHIRP; SideScan 455/800 kHz, 455 kHz CHIRP and 1200 kHz CHIRP
- Resolution
- 1280 x 800
- Display size
- 10"
- Brightness
- 1200 nits
Contact us to confirm availability and shipping time. 30-day returns on unused stocked items. Exclusions apply. Return policy · Shipping policy
Shopping as a guest. Sign in to save your cart and check out as a dealer.
About this product
NSS 4 10-inch chartplotter and fishfinder with C-MAP DISCOVER X chart.
- 10-inch SolarMAX IPS touchscreen
- Hybrid touch, rotary and keypad controls
- Customizable keys
- Built-in sonar/fishfinder capability
- C-MAP DISCOVER X chart included
Manufacturer part number: 000-16012-001.
Verified product information
- Display
- 10-inch full multi-touch display; resolution 1280 x 800; 1200 nits typical
- Power
- 12/24 V DC (10–31.2 V DC); 5 A fuse; maximum power consumption 28 W
- Physical
- Display-only weight 1.8 kg (3.97 lb); compass safe distance 35 cm (1.15 ft); gimbal-bracket or rear-mount capable
- Connectivity
- Wi-Fi 5 (IEEE 802.11ac-2013); one X-Coded M12 GbE and one yellow 5-pin Ethernet port; one NMEA 2000 Micro-C port; two microSD slots
- Built-in sonar/imaging
- Low/Medium/High Chirp up to 1 kW RMS; DownScan 455/800/700 kHz CHIRP and 1200 kHz CHIRP; SideScan 455/800 kHz, 455 kHz CHIRP and 1200 kHz CHIRP
Product details
- Weight
- 1.8 kg (3.97 lb)
- Blackbox
- No
- Brightness
- 1200 nits
- Resolution
- 1280 x 800
- Screen Size
- 10"
- Display Size
- 10"
- Built In Sonar
- Yes
- Built In Chart Type
- C-MAP
- Dimensions W X H X D
- Display only: 287.9 mm x 176.1 mm x 79.6 mm; with bracket: 315.8 mm x 196.5 mm x 79.6 mm
- Power Consumption Max
- 28 W
