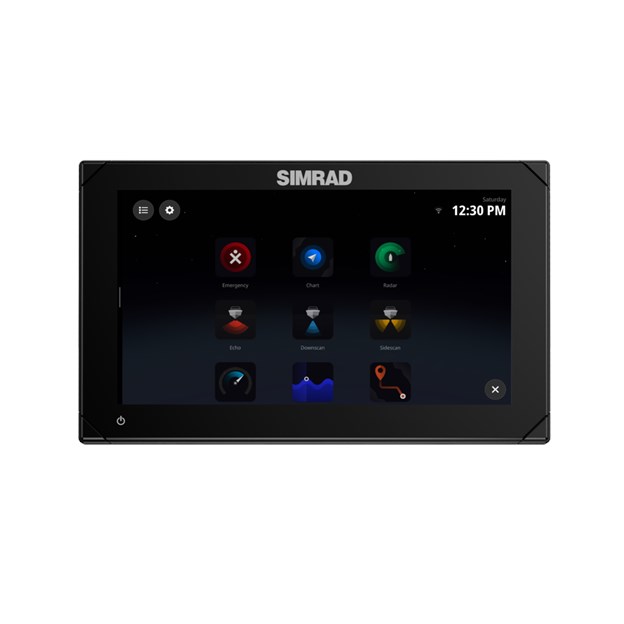

Simrad NSX 3009, No Transducer
Touchscreen navigation and fishfinding with C-MAP X-series charts
SKU SIM-000-15218-001
9-inch NSX chartplotter and fishfinder display without a transducer, with integrated sonar, radar and autopilot capabilities and C-MAP chart support.
- Screen size
- 9"
- Display resolution
- 1280 x 720 px
- Built-in sonar
- Yes
- Chart package
- C-MAP DISCOVER X
- Transducer
- Not included
- Supply voltage
- 10–17 V DC
- GPS
- Internal, 10 Hz
- Blackbox
- No
Contact us to confirm availability and shipping time. 30-day returns on unused stocked items. Exclusions apply. Return policy · Shipping policy
Shopping as a guest. Sign in to save your cart and check out as a dealer.
About this product
9-inch SolarMAX IPS chartplotter and fishfinder with built-in GPS and sonar, without a transducer.
- 9-inch multi-touch display (1280 x 720 px)
- Built-in 10 Hz GPS receiver and echosounder
- C-MAP DISCOVER X chart card included
- Display-only package: transducer sold separately
- C-MAP DISCOVER X and REVEAL X chart compatibility

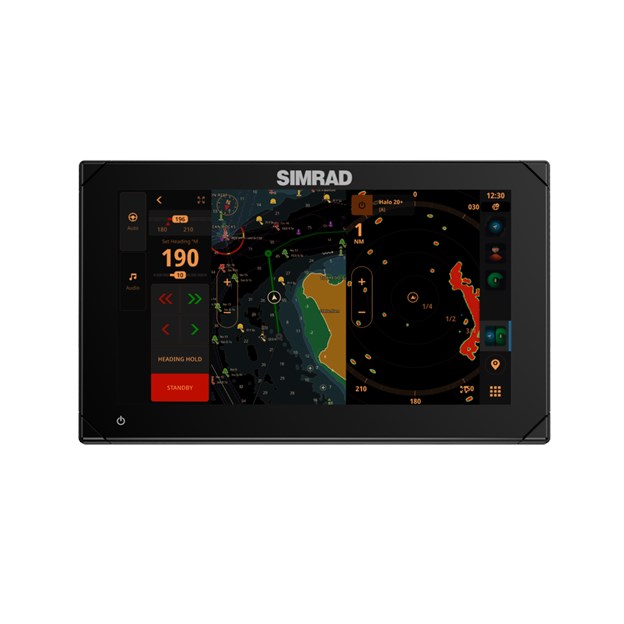

- Simrad radar and autopilot integration with compatible optional equipment
- Wi-Fi, Bluetooth and NMEA 2000 connectivity
- IPX6 and IPX7 water protection; 10–17 V DC supply
Display and navigation
- Display size
- 9"
- Display resolution
- 1280 x 720 px
- Interface
- Multi-touch touchscreen
- Blackbox
- No — integrated display
- GPS
- Internal, 10 Hz
Sonar, charts and networking
- Built-in sonar
- Yes
- Sonar compatibility
- Single-channel CHIRP, 50/200 kHz, HDI and Active Imaging; one 9-pin xSonic port
- Chart package
- C-MAP DISCOVER X chart card included
- Supported chart types
- C-MAP DISCOVER X and REVEAL X
- Transducer included
- Not included
- Connectivity
- Wi-Fi, Bluetooth, NMEA 2000 and Ethernet
Electrical and environmental
- Supply voltage
- 10–17 V DC
- Water protection
- IPX6 and IPX7
Product details
- Screen size
- 9"
- Transducer
- Not included
- Box Weight
- 6.6 lb
- Product Weight
- 2.6 lb
- Waterproof Rating
- IPX6 and IPX7
- Built In Chart Type
- C-MAP DISCOVER X
- Dimensions (Product) W X H X D
- 9.4 x 5.9 x 2.9 inches
Compatibility & fitment
Works with
- C-MAP DISCOVER X and REVEAL XUse chart cards compatible with the display and your cruising region.
- Compatible Simrad radar and autopilot systemsRadar, autopilot computer, drive and network components are separate equipment, not included in these display packages.
What’s included
- 1×Simrad NSX 3009 display
- 1×C-MAP DISCOVER X chart card
Shipping & returns
- Contact us to confirm availability and shipping time.
- 30-day returns on unused stocked items. Exclusions apply. See policy
- Custom and quoted items are non-returnable once production begins.
Warranty
Backed by the original manufacturer’s warranty plus our workmanship guarantee on assembled harnesses. Contact us with your invoice and we’ll coordinate any covered repair or replacement.
Read the full warranty termsInstallation guidance
These notes are a starting point. They cover the common considerations for a marine install — they don't replace a project review against your specific boat, helm, and circuit list.
- Disconnect the battery and verify zero voltage at the working point before cutting or splicing.
- Match wire gauge to the breaker and the run length, not just to the load.
- Use marine-rated, tinned terminals and seal every crimp against moisture and vibration.
- Route conductors clear of heat sources and protect them where they pass through bulkheads.
