Blue Sea Systems Solenoid L-Series - 250A 12/24V
SKU BLUE-9012
- Control Circuit Voltage
- 9-36V DC (12/24V nominal)
- Control Circuit Connection
- 20 AWG Tinned Wire
- Contact Voltage
- 800V DC
- Amperage Operating Current continuous
- 0.13A @ 12 V; 0.07A @ 24 V
- Amperage Operating Current when changing state
- 3.6A
- Terminal Stud
- M8 (accepts 5/16" terminals)
- Terminal Stud Torque
- 90 in-lb (10.17 Nm) max
- Continuous Rating
- 250A ; 300A ; 400A ; 450A
Contact us to confirm availability and shipping time. 30-day returns on unused stocked items. Exclusions apply. Return policy · Shipping policy
Shopping as a guest. Sign in to save your cart and check out as a dealer.
About this product
Solenoid L-Series - 250A 12/24V. Continous duty, SPST - Normally Open. Hermetically sealed contacts / vaporproof.
Key features
- Continous duty, SPST - Normally Open
- Hermetically sealed contacts / vaporproof
- Ignition protected - safe for installation aboard gasoline powered boats
- 450 Amp Class

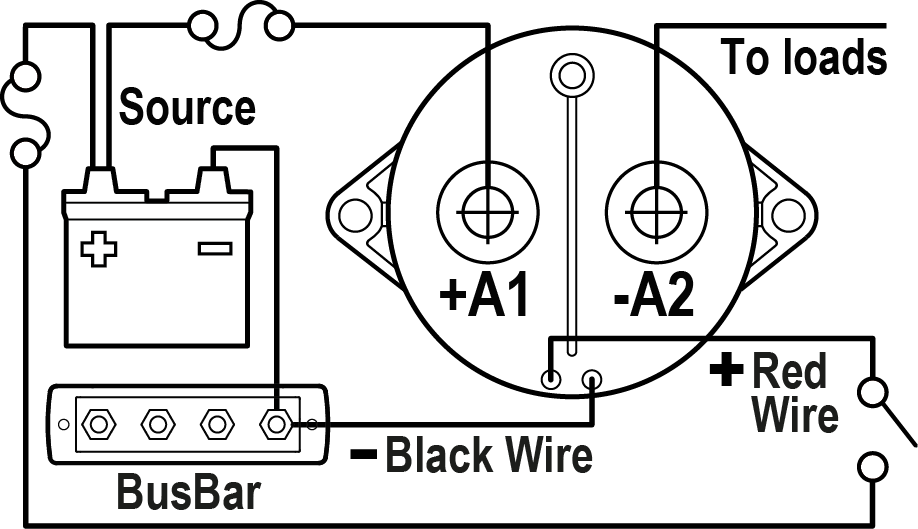

- Activated by a low amperage ON-OFF switch mounted anywhere
- Coil control circuit minimizes heating and amperage draw
- No external coil suppression required
For installation planning, check the manufacturer's ratings: control circuit voltage: 9-36V DC (12/24V nominal); contact voltage: 800V DC; amperage operating current continuous: 0.13A @ 12 V; 0.07A @ 24 V; amperage operating current when changing state: 3.6A.
Manufacturer part 9012. Confirm the circuit rating, mounting arrangement, and required accessories against the manufacturer specifications before selecting this part.
Manufacturer specifications
- Control Circuit Voltage
- 9-36V DC (12/24V nominal)
- Control Circuit Connection
- 20 AWG Tinned Wire
- Contact Voltage
- 800V DC
- Amperage Operating Current continuous
- 0.13A @ 12 V; 0.07A @ 24 V
- Amperage Operating Current when changing state
- 3.6A
- Terminal Stud
- M8 (accepts 5/16" terminals)
- Terminal Stud Torque
- 90 in-lb (10.17 Nm) max
- Continuous Rating
- 250A ; 300A ; 400A ; 450A
- Intermittent Rating
- 275A (5 min) ; 400A (5 min) ; 500A (5 min) ; 600A (5 min)
- Cranking Rating 30 sec
- 1,000A
- Contact Form
- SPST-NO
- Inrush Rating: 0.25 sec (10 repeats)
- 2000A
- Mounting Screw
- #10 or M5
- Stud Material
- Stainless Steel
- Terminal Stud Length
- 0.66in (16.76 mm)
- Weight
- 1.00lb (0.45 kg)
Product details
- Amperage
- 250A ; 300A ; 400A ; 450A
- Function
- L-Series
- Device Type
- L-Series
- Manufacturer
- Blue Sea Systems
- Product Type
- L-Series
