Blue Sea Systems ML-ACR Automatic Charging Relay with Manual Control - 24V DC 500A

ML-ACR Automatic Charging Relay with Manual Control - 24V DC 500A. Manual control switch provides an added level of safety allowing control with or without power, and offering LOCK OFF capability for servicing. Includes ML-Series Remote Control Contura Switch PN 2146.

Key features

• Manual control switch provides an added level of safety allowing control with or without power, and offering LOCK OFF capability for servicing
• Includes ML-Series Remote Control Contura Switch PN 2146

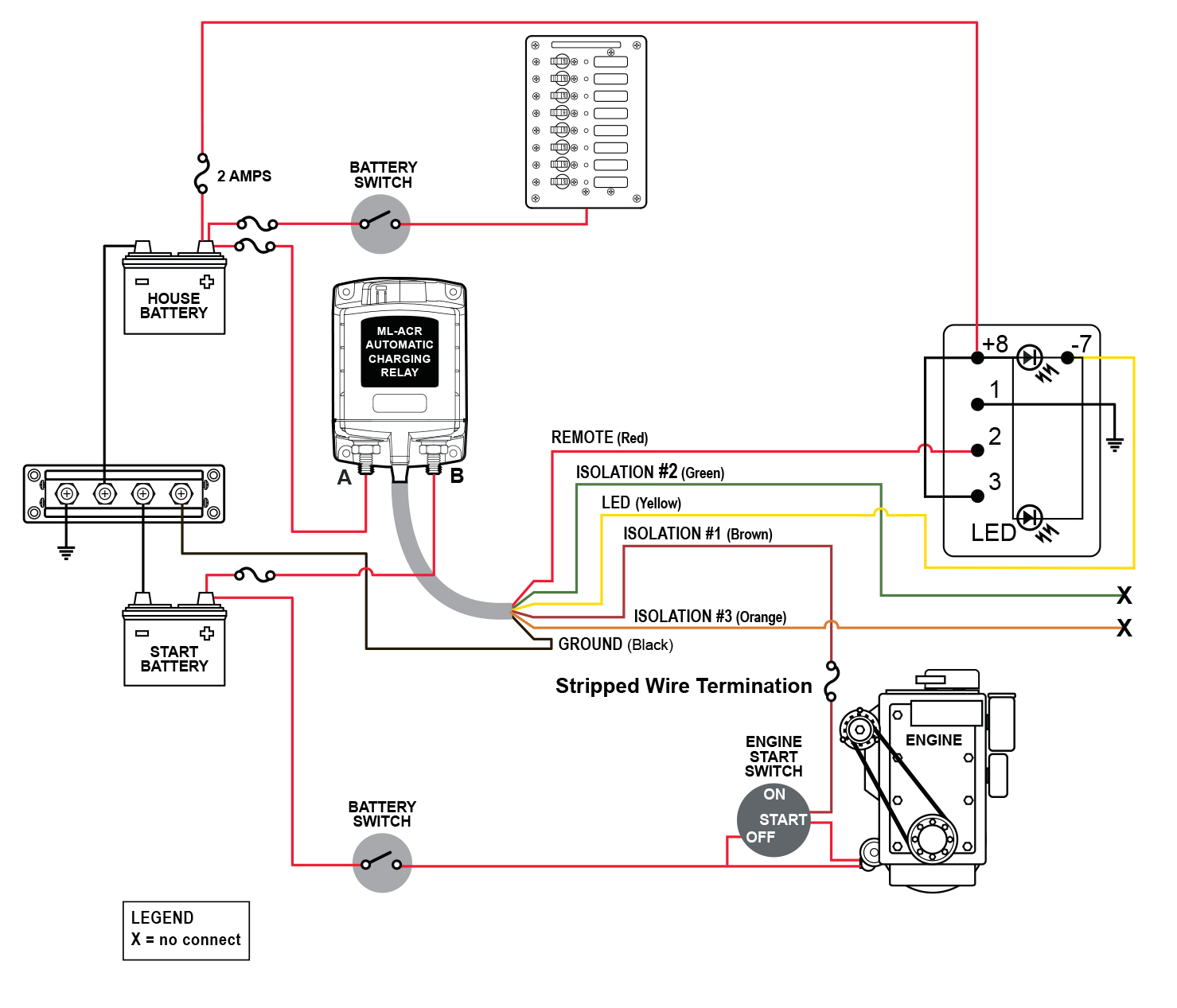

• Automatically manages the charging of two large battery banks
• Allows paralleling of battery banks for emergency starting
• 500 Ampere continuous rating to support high-output alternators
• Magnetic Latch (ML)—ACR draws very low current (<40mA to monitor terminal voltage) in the "ON" or "OFF" states, and draws moderate current for very short time when changing state
• Dual sensing—senses charge on both battery banks
• Start Isolation (SI)—can be configured for temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics
• Engine Isolation (EI)—can be configured for isolation of two engines while both are running to protect engine electronics and maximize alternator output
• Senses charging on two battery banks
• LED output to remotely indicate when batteries are combined, isolated, in voltage lockout, or in Start or Engine isolation

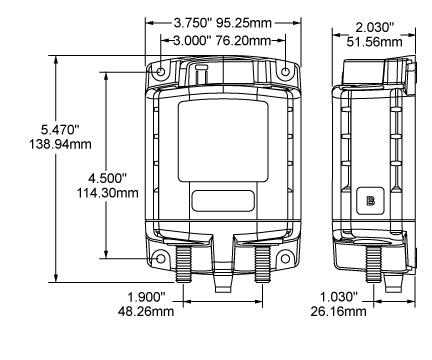

• 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
• 7/8" (22mm) stud length accepts multiple cable terminals
• Silver alloy contacts provide high reliability for switching live loads
• Label recesses for circuit identification

For installation planning, check the manufacturer's ratings: nominal voltage: 24V DC; mounting: #10; amperage operating current: 13mA; amperage operating current when changing state: <7.0A.

Manufacturer part 7623. Confirm the circuit rating, mounting arrangement, and required accessories against the manufacturer specifications before selecting this part.
