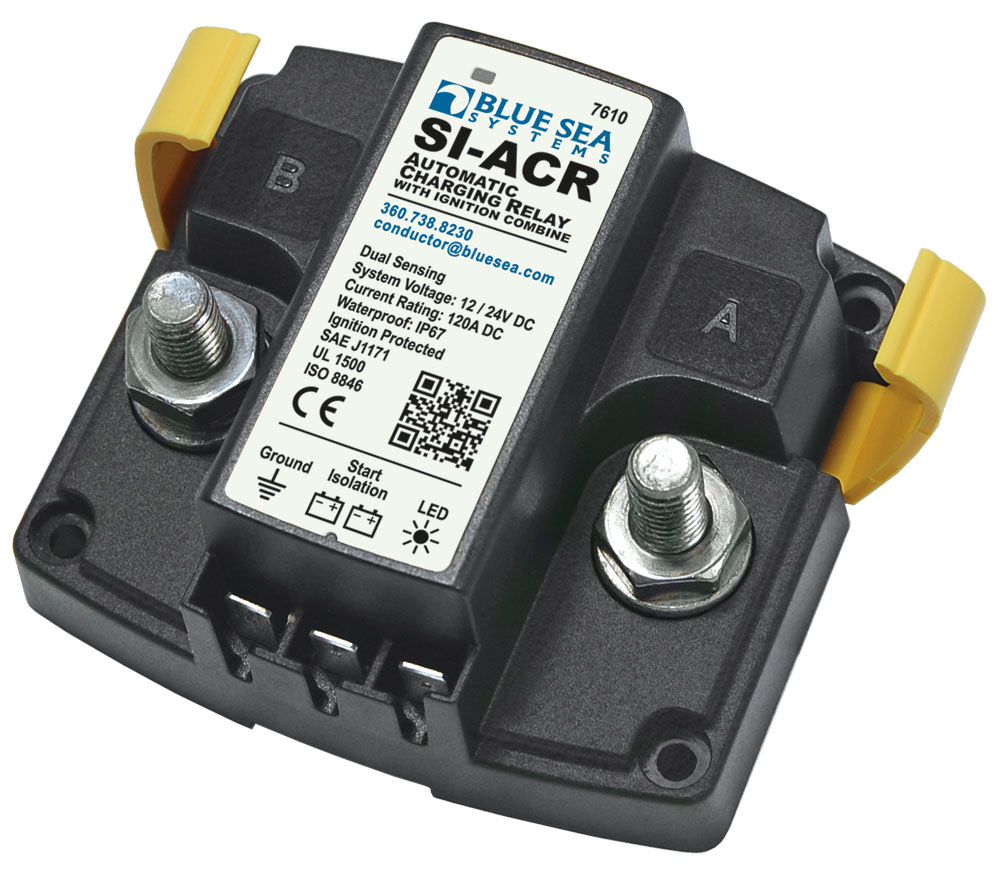

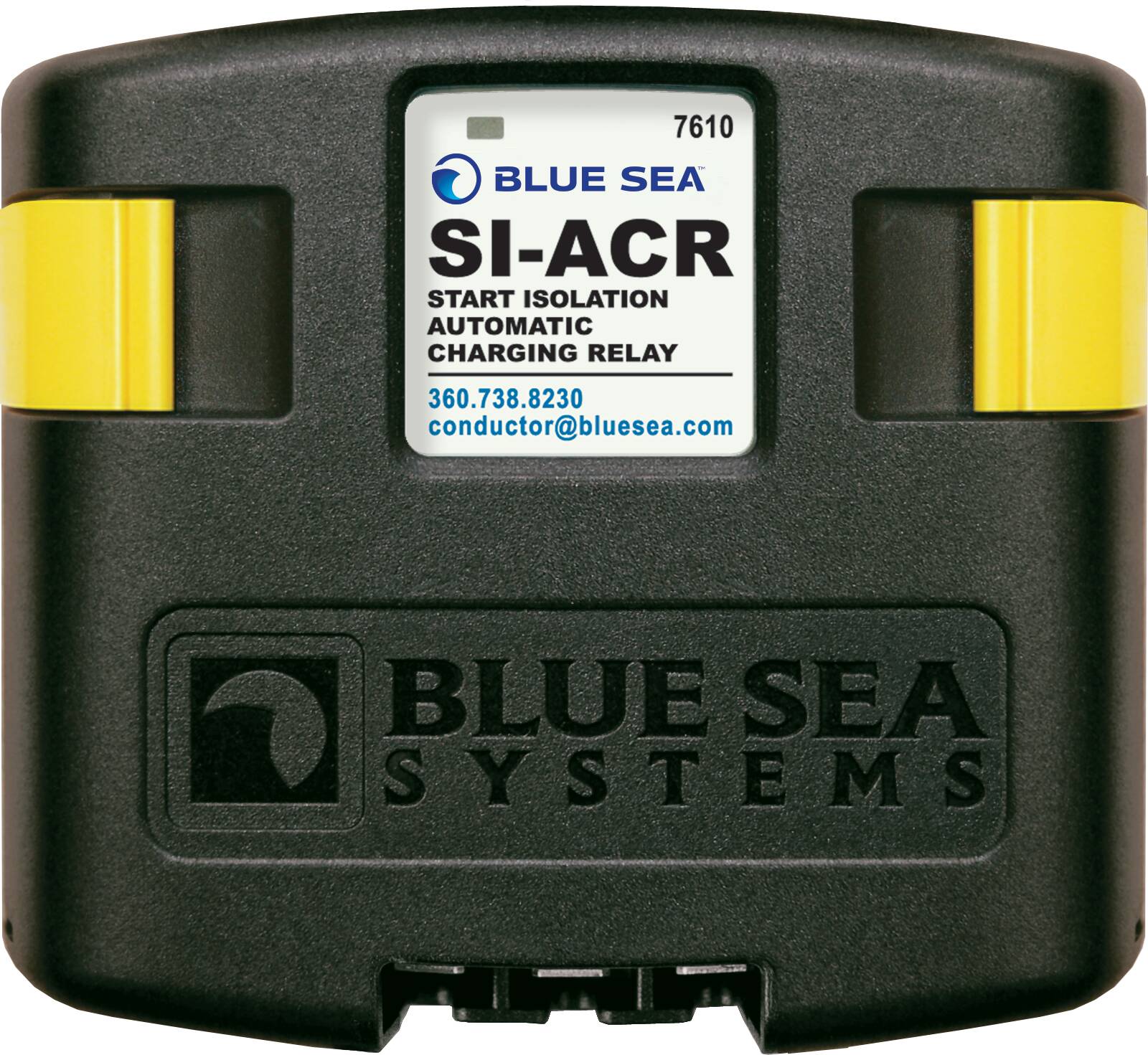

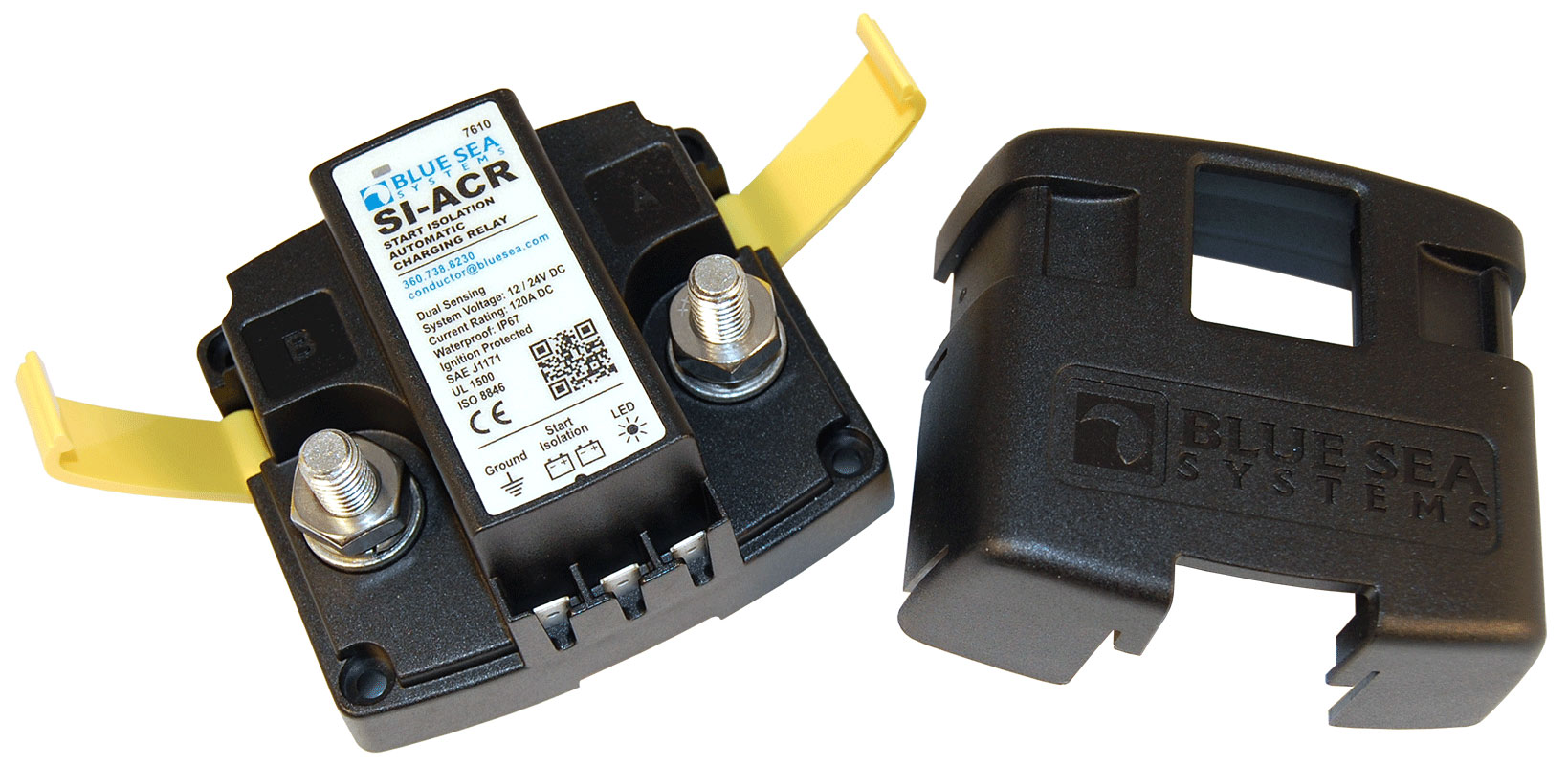

Blue Sea Systems SI-ACR Automatic Charging Relay - 12/24V DC 120A
SKU BLUE-7610
- Nominal Voltage
- 12V DC; 24V DC
- Start Isolation
- Yes
- Amperage Operating Current
- 175mA (combined); 15mA (open)
- Terminal Stud Torque
- 140 in-lb (15.82 Nm)
- Continuous Rating
- 120A
- Intermittent Rating
- 210A (5 min)
- Cable Size to Meet Ratings
- 1/0 AWG
- Stud Material
- Tinned Copper
Stocked items typically ship the next business day from our US warehouse. 30-day returns on unused stocked items. Exclusions apply. Return policy · Shipping policy
Shopping as a guest. Sign in to save your cart and check out as a dealer.
About this product
SI-ACR Automatic Charging Relay - 12/24V DC 120A. Protects sensitive electronics by temporary isolation of house loads from engine circuit during engine cranking. Designed for 12 or 24 volt systems.
Key features
- Protects sensitive electronics by temporary isolation of house loads from engine circuit during engine cranking
- Designed for 12 or 24 volt systems
- 12/24 volt auto ranging voltage input
- Hermetically sealed contacts/vaporproof
- Ignition protected—safe for installation aboard gasoline powered boats
- Supports high-output alternators up to 120 Amperes
- Dual sensing

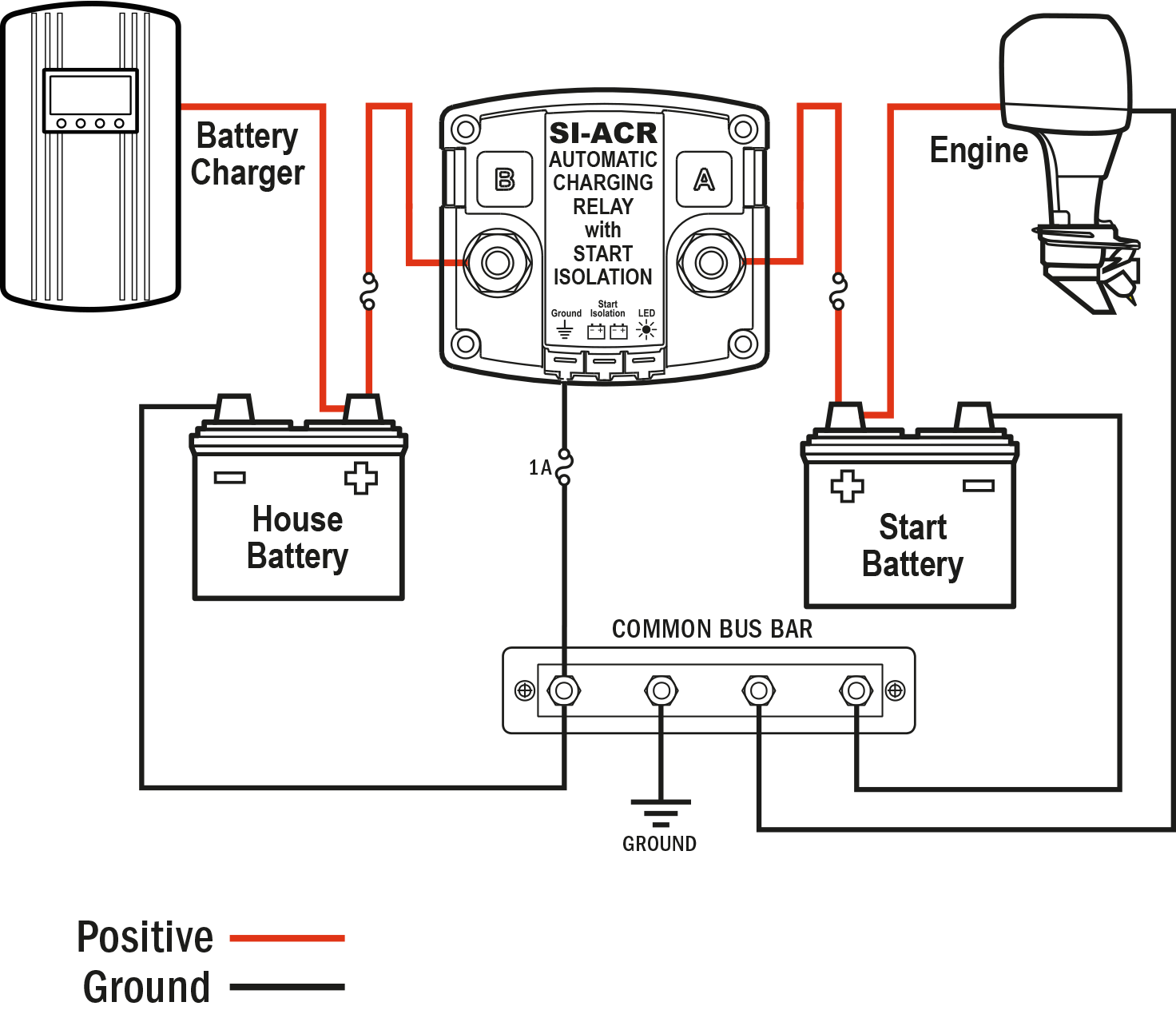

- Start Isolation allows temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics from sags and spikes
- Remote LED remotely indicates ACR states - requires optional LED
For installation planning, check the manufacturer's ratings: nominal voltage: 12V DC; 24V DC; amperage operating current: 175mA (combined); 15mA (open); continuous rating: 120A.
Manufacturer part 7610. Confirm the circuit rating, mounting arrangement, and required accessories against the manufacturer specifications before selecting this part.
Manufacturer specifications
- Nominal Voltage
- 12V DC; 24V DC
- Start Isolation
- Yes
- Amperage Operating Current
- 175mA (combined); 15mA (open)
- Terminal Stud Torque
- 140 in-lb (15.82 Nm)
- Continuous Rating
- 120A
- Intermittent Rating
- 210A (5 min)
- Cable Size to Meet Ratings
- 1/0 AWG
- Stud Material
- Tinned Copper

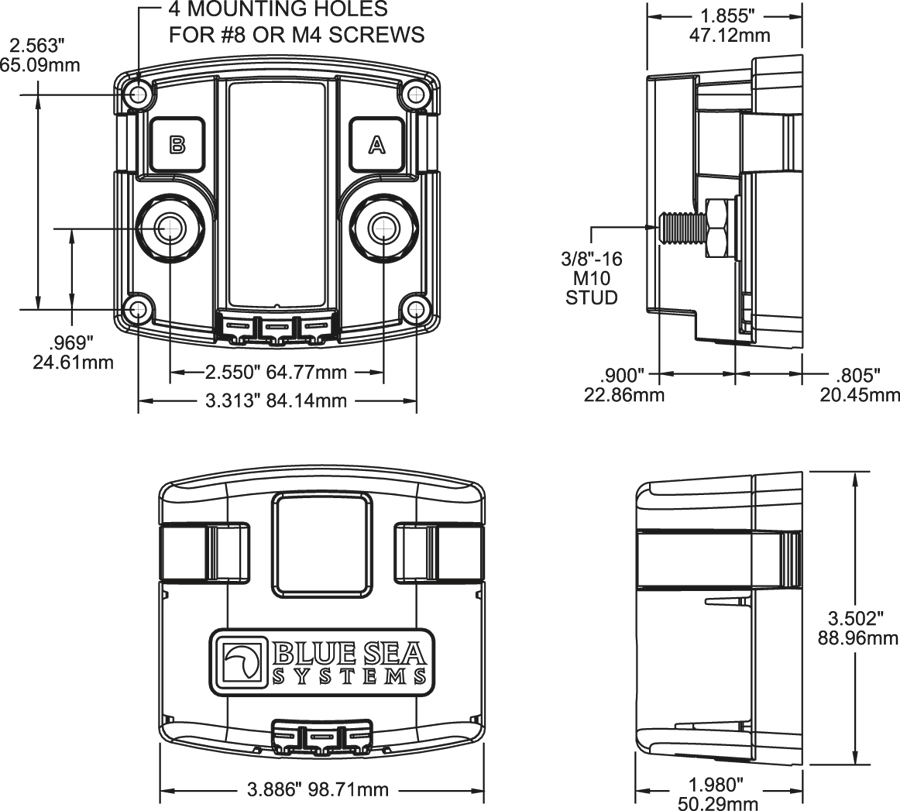

- Terminal Ring Diameter Clearance
- 1.12in (28.45 mm)
- Terminal Stud Length
- 0.875in (22.23 mm)
- Terminal Stud Size
- 3/8" - 16 (M10)
- Combine 30 sec
- 13.6V @ 12 V; 27.2V @ 24 V
- Combine 90 sec
- 13.0V @ 12 V; 26.0V @ 24 V
- Open 10 sec
- 12.35V @ 12 V; 24.7V @ 24 V
- Open 30 sec
- 12.75V @ 12 V; 25.5V @ 24 V
- Open High
- 16.0V @ 12 V; 30.0V @ 24 V
- Overvoltage Lockout
- 16.0V @ 12V; 32.0V @ 24V
- Undervoltage Lockout
- 9.5V @ 12 V; 19V @ 24 V
- Weight
- 1.25lb (0.57 kg)
Product details
- Series
- SI
- Voltage
- 12V DC; 24V DC
- Amperage
- 120 A
- Function
- Charge Relay
- Device Type
- SI-Series
- Manufacturer
- Blue Sea Systems
- Product Type
- SI-Series
