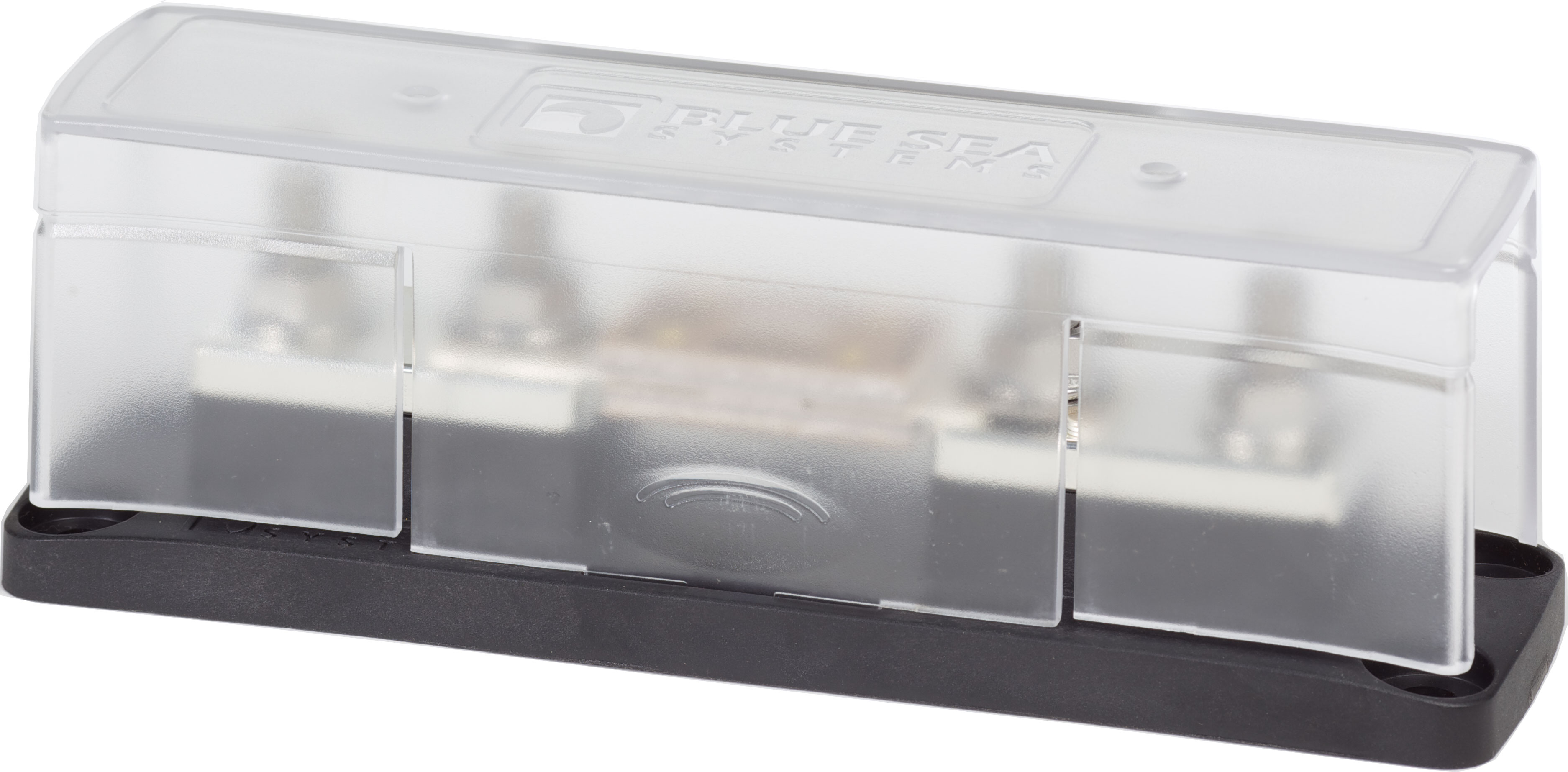

Blue Sea Systems ANL Fuse Block with Insulating Cover - 35 to 750A
SKU BLUE-5503
- Maximum Voltage
- 32V DC
- Stud Size
- 5/16"
- Base Material
- Reinforced Polycarbonate
- Fuse Mounting Blocks
- Tin-Plated Copper
- Maximum Cable Size
- 4/0 AWG
- Maximum Torque
- 107 in-lb (12.09 Nm)
- Stud Torque
- 107 in-lb (12.09 Nm)
- Terminal Stud Size
- 5/16" - 18 (M8)
Stocked items typically ship the next business day from our US warehouse. 30-day returns on unused stocked items. Exclusions apply. Return policy · Shipping policy
Shopping as a guest. Sign in to save your cart and check out as a dealer.
About this product
ANL Fuse Block with Insulating Cover - 35 to 750A. Cover included. Accepts 5/16" (M8) ring terminals.
Key features
- Cover included
- Accepts 5/16" (M8) ring terminals
- For use on systems up to 32 Volts DC
- Swing out design allows replacement of the fuse without removing fasteners
- Stainless steel studs provide resistance to corrosion and high torquing for excellent electrical contact
- UL 94-V0 base resists high heat
- Insert molded studs ensure secure fuse mounting
- Insulating cover satisfies ABYC/USCG requirements
- Cover breakouts allow wire access in any direction
- Fuse sold separately
For installation planning, check the manufacturer's ratings: maximum voltage: 32V DC; fuse mounting blocks: Tin-Plated Copper.
Manufacturer part 5503. Confirm the circuit rating, mounting arrangement, and required accessories against the manufacturer specifications before selecting this part.
Manufacturer specifications
- Maximum Voltage
- 32V DC
- Stud Size
- 5/16"
- Base Material
- Reinforced Polycarbonate
- Fuse Mounting Blocks
- Tin-Plated Copper
- Maximum Cable Size
- 4/0 AWG
- Maximum Torque
- 107 in-lb (12.09 Nm)
- Stud Torque
- 107 in-lb (12.09 Nm)
- Terminal Stud Size
- 5/16" - 18 (M8)
- Weight
- 1.06lb (0.48 kg)
Product details
- Voltage
- 32V DC
- Function
- ANL Fuse Blocks
- Device Type
- ANL Fuse Blocks
- Manufacturer
- Blue Sea Systems
- Product Type
- ANL Fuse Blocks
