Victron Battery Indicator Panel — 12 V, M8 Eyelets, 30 A ATO Fuse
Choose this model when you want a permanent, standalone LED battery-status display mounted in a panel or dashboard.
SKU VIC-BPC900110114
Standalone panel-mounted LED battery indicator for 12 V flooded, GEL, and AGM lead-acid batteries, with M8 eyelets, a 1.5 m cable, and an inline 30 A ATO fuse.
- Product type
- Standalone panel-mounted indicator
- Battery use
- 12 V flooded, GEL, or AGM lead-acid
- Operating range
- 6–15 V
- Cable length
- 1.5 m
- Panel cut-out
- 39 × 22 mm
- Battery connection
- M8 eyelet connectors
- Fuse
- 30 A ATO
- Protection
- IP65
Usually ships 4-6 days 30-day returns on unused stocked items. Exclusions apply. Return policy · Shipping policy
Shopping as a guest. Sign in to save your cart and check out as a dealer.
About this product

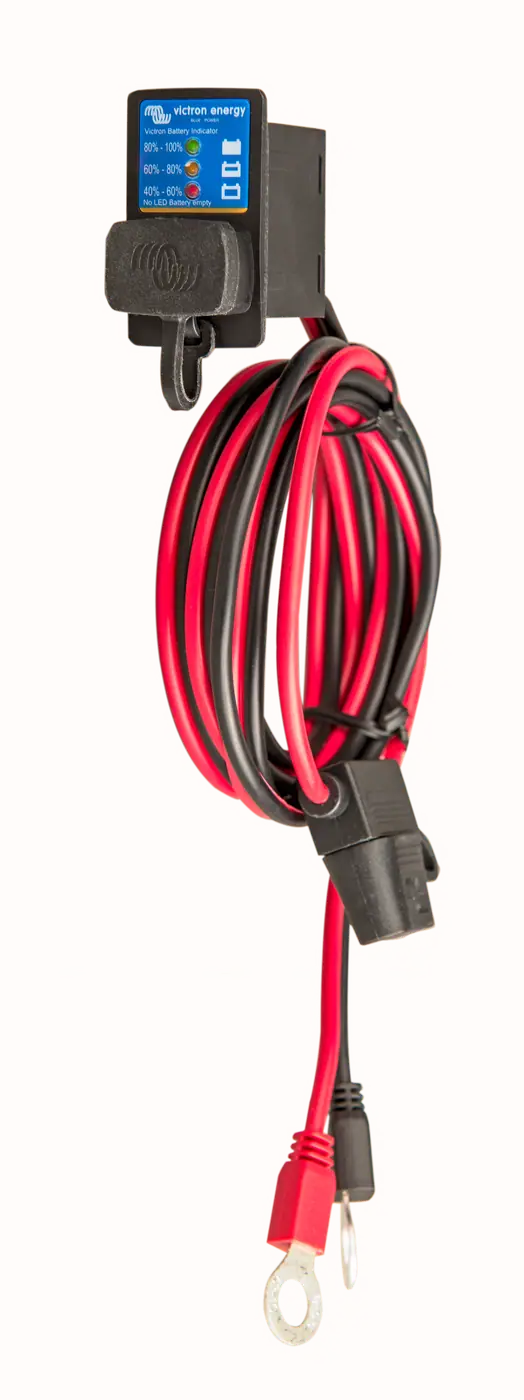

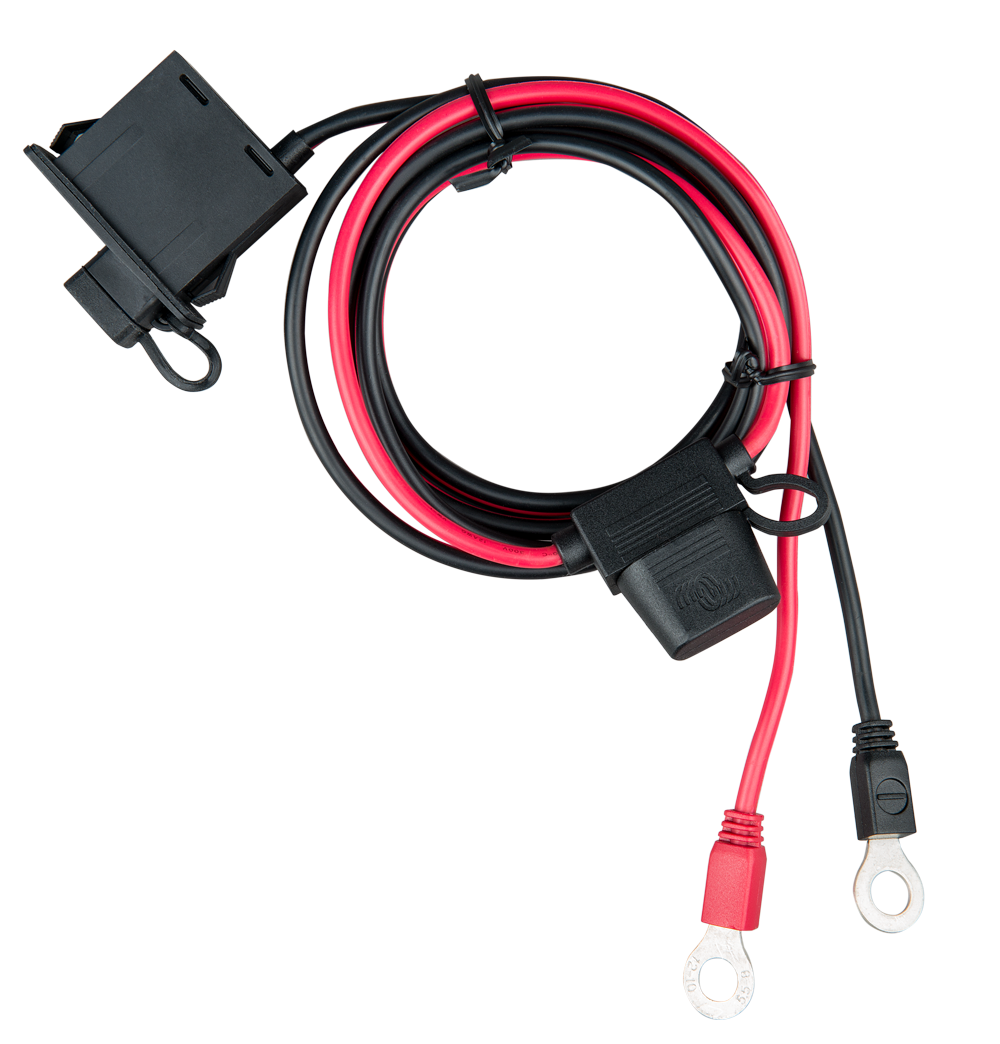

Standalone panel-mounted LED battery indicator for 12 V flooded, GEL, and AGM lead-acid batteries. Install it through a 39 × 22 mm cut-out to view battery status at a glance. It uses M8 eyelet battery connections, a 1.5 m AWG 12 cable, and an inline 30 A ATO fuse. Intended for use with Victron Blue Smart and Blue Power IP65 charger systems.
Key specifications
- Product type: Standalone panel-mounted indicator
- Battery use: 12 V flooded, GEL, or AGM lead-acid
- Operating range: 6–15 V
- Cable length: 1.5 m
- Panel cut-out: 39 × 22 mm
- Battery connection: M8 eyelet connectors
- Fuse: 30 A ATO
- Protection: IP65
Product details
- Product type
- Standalone panel-mounted indicator
- Battery use
- 12 V flooded, GEL, or AGM lead-acid
- Operating range
- 6–15 V
- Cable length
- 1.5 m
- Panel cut-out
- 39 × 22 mm
- Battery connection
- M8 eyelet connectors
- Fuse
- 30 A ATO
- Protection
- IP65
- Weight
- 0.17 kg
- Voltage
- 6–15 V (for 12 V lead-acid batteries)
- Function
- Visual battery state indicator
- Mounting
- Panel mount
- Cable Size
- 3.3 mm² (AWG 12)
- Dimensions
- 45 × 26 × 50 mm
- Fuse Rating
- 30 A ATO
- Compatibility
- Victron Blue Smart and Blue Power IP65 Chargers
- Maximum Current
- 30 A
- Status Indication
- Green 80–100% | Orange 60–80% | Red 40–60% | No light below 40%
- Back Current Drain
- 0.9 mA
- Compatible Battery Chemistries
- Flooded | GEL | AGM lead-acid
