Veratron VL Flex 52 NMEA 2000 Multifunction Gauge - Black
SKU VER-B00043501
52 mm VL Flex color TFT gauge with NMEA 2000, analog sensor input, LIN battery-sensor support and contactless smartphone configuration.
- Display
- 1.44 in color TFT, 125 x 125 px
- Nominal voltage
- 12/24 V
- Connectivity
- NMEA 2000, LIN, AirWave/NFC
- Analog inputs
- 1x resistive, 1x frequency
- Protection
- IP67 front
- Standard cutout
- 2.09 in (53 mm)
- Mounting depth
- 2.56 in (65 mm)
- Bezel
- Black
Made-to-order lead time confirmed with your quote. 30-day returns on unused stocked items. Exclusions apply. Custom and quoted items are non-returnable once production begins. Return policy · Shipping policy
Shopping as a guest. Sign in to save your cart and check out as a dealer.
About this product

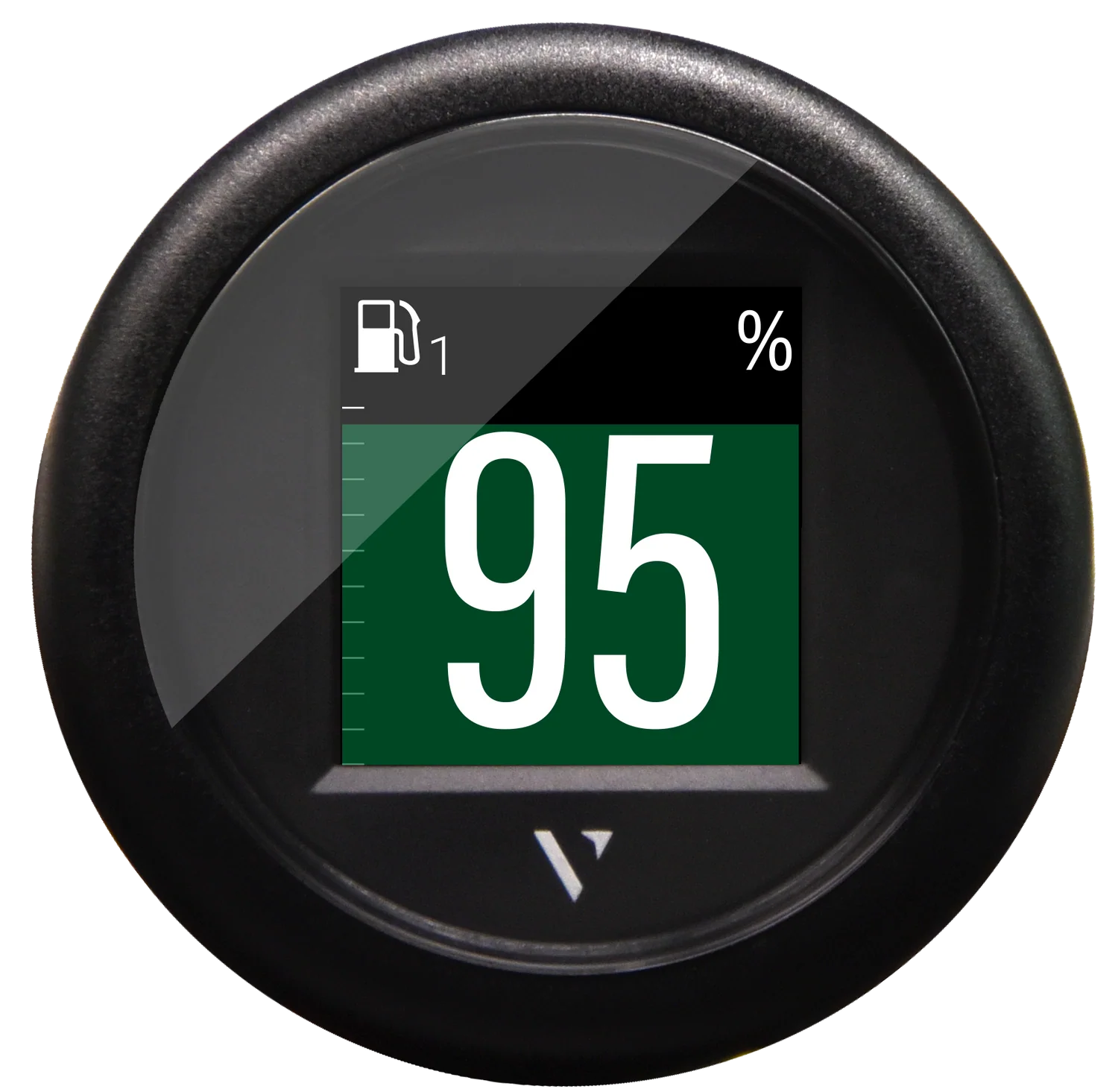

Veratron VL Flex 52 NMEA 2000 Multifunction Gauge - Black is a configurable digital round gauge designed to replace multiple fixed-function instruments. Its sunlight-readable 1.44 in color TFT can show one or two data values, colored bar graphs and visual alarm states in a standard 52 mm instrument footprint.
Key features
- Sunlight-readable 1.44 in color TFT with anti-glare/anti-fog lens

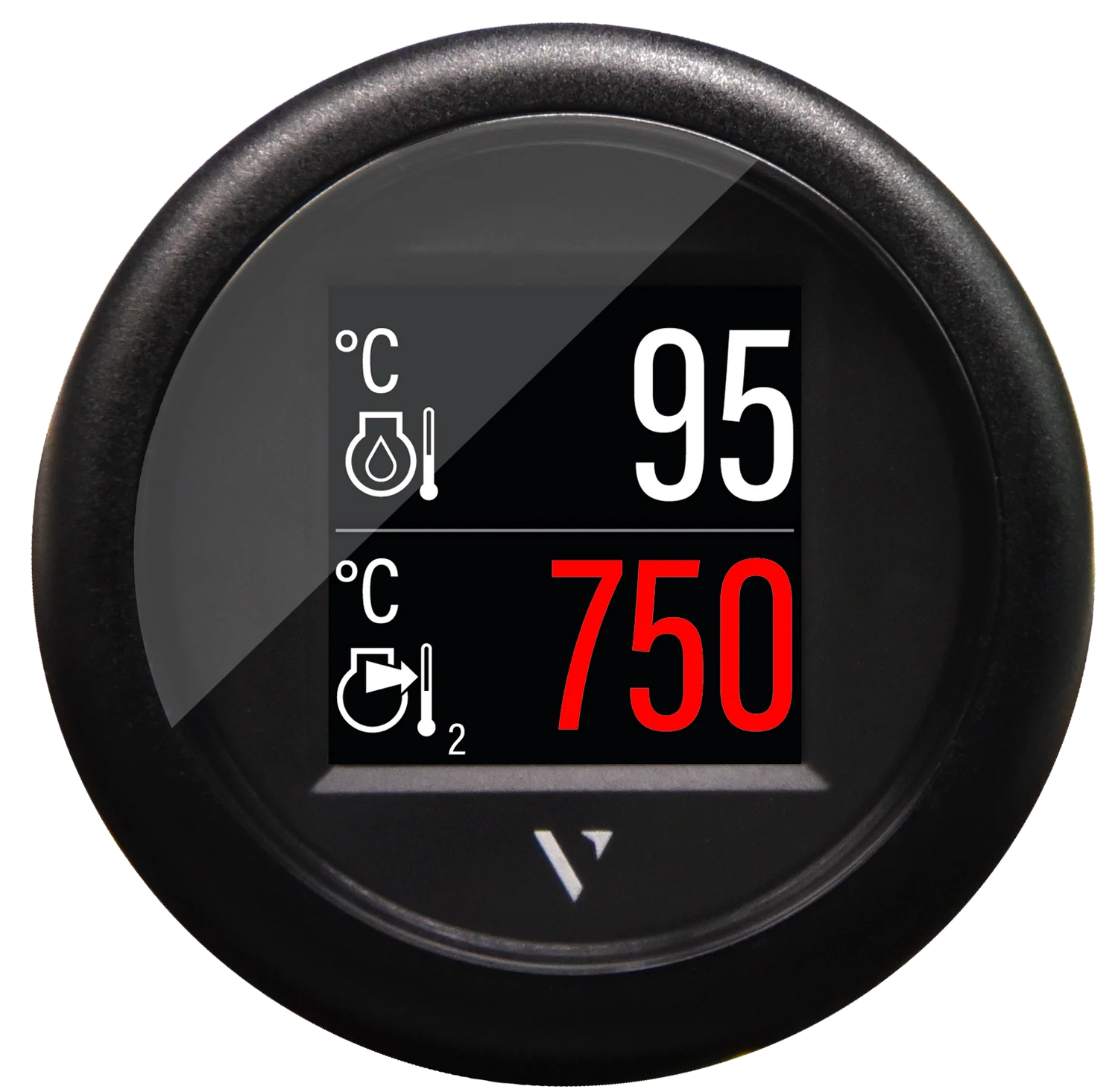

- Single- or dual-data layouts
- Contactless smartphone configuration through Veratron AirWave/NFC
- NMEA 2000 digital interface
- One resistive and one frequency input

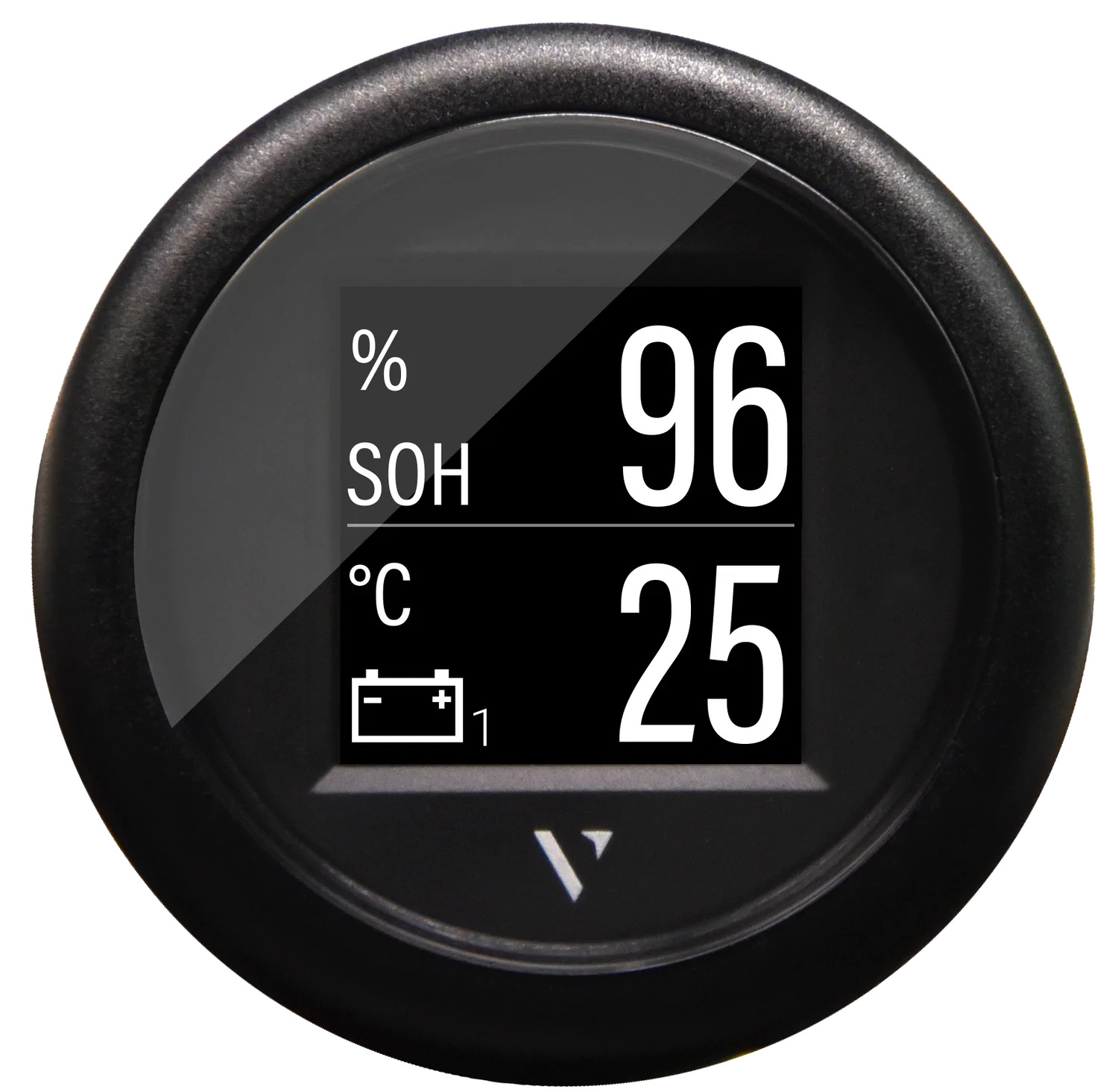

- LIN interface for compatible Intelligent Battery Sensor

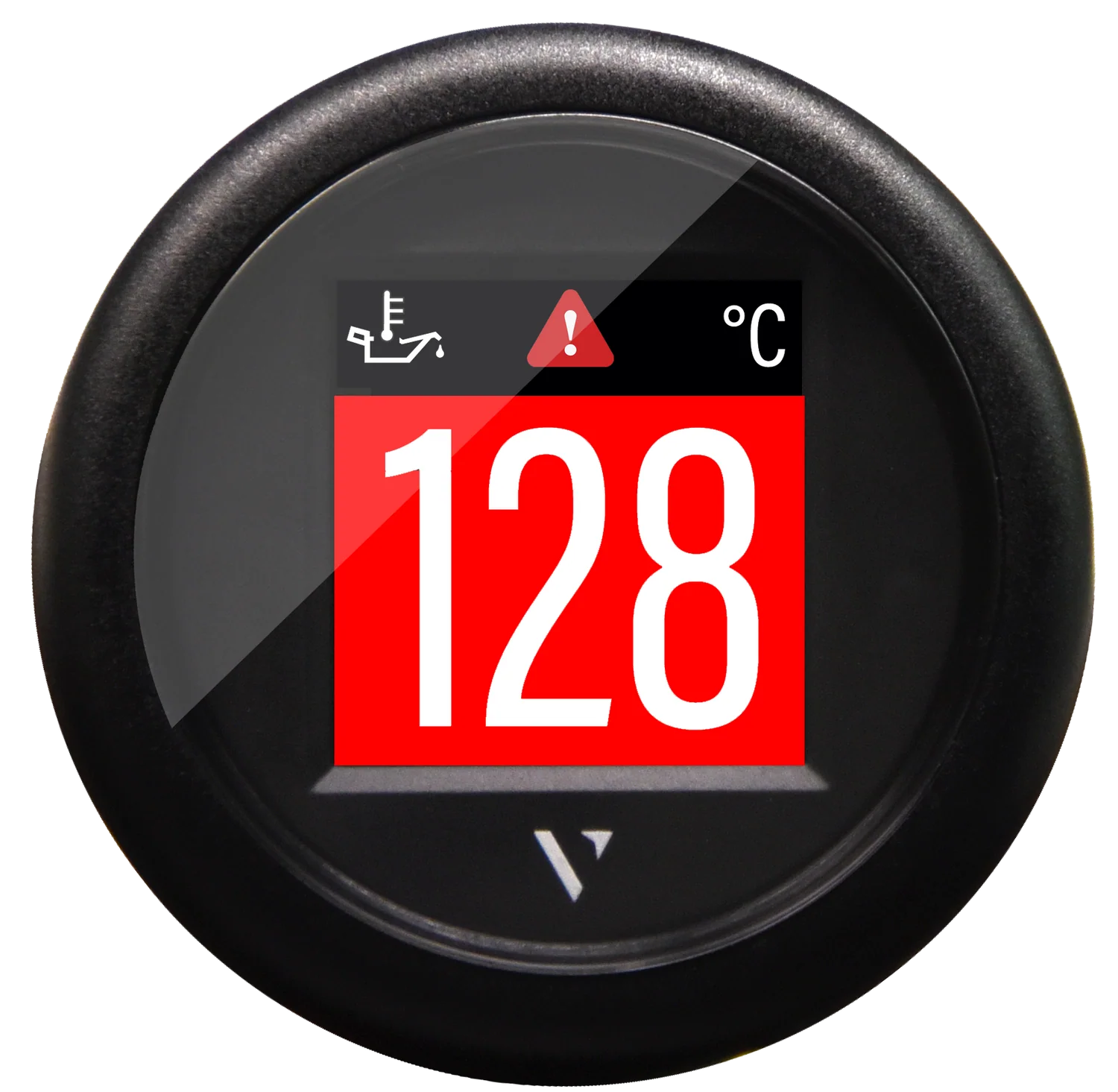

- Configurable alarms and data scaling
- IP67 front-side protection
Integration and functionality
The NMEA 2000 version can read network data and also act as an analog-to-NMEA 2000 gateway for its local resistive/frequency inputs. Single- or dual-data layouts allow the same instrument to replace several fixed-function gauges.
Installation
The manual specifies a 53 mm (2.09 in) standard opening and 65 mm (2.56 in) required depth. An optional flush installation uses a 48.1 mm opening. Standard spinlock mounting supports panels from roughly 0.5 to 20 mm.
Electrical and environmental
Operates on 9–32 V with approximately 50 mA consumption at maximum backlight. The specified operating-temperature range is -20 to +70 °C.
Product details
- Display
- 1.44 in color TFT, 125 x 125 px
- Nominal voltage
- 12/24 V
- Connectivity
- NMEA 2000, LIN, AirWave/NFC
- Analog inputs
- 1x resistive, 1x frequency
- Protection
- IP67 front
- Standard cutout
- 2.09 in (53 mm)
- Mounting depth
- 2.56 in (65 mm)
- Bezel
- Black
- Series
- VL
- Function
- Multifunctional
- Ip Class
- IP67
- Connector
- Tyco/Hirschmann 8-pole MQS
- Gauge Size
- 52 mm
- Bezel Color
- Black
- Bezel Shape
- Round
- Display Type
- LCD
- Screen Dimension
- 1.44"
- Technical Display Type
- 1.44 in color TFT
