Veratron Sumlog Speed Transducer - up to 30 knots
SKU VER-270-023-004-002K
IP68 Veratron Sumlog paddlewheel speed-through-water transducer for 18–30 knots, with 8–16 VDC supply, open-collector frequency output and 18,000 pulses/NM calibration.
- Function
- Speed through water
- Speed range
- 18–30 knots
- Calibration
- 18,000 pulses/NM
- Supply voltage
- 8–16 VDC
- Current draw
- <20 mA @ 12 V
- Output
- Frequency, open collector
- Installation hole
- Ø42 ±0.2 mm
- Protection
- IP68
Made-to-order lead time confirmed with your quote. 30-day returns on unused stocked items. Exclusions apply. Custom and quoted items are non-returnable once production begins. Return policy · Shipping policy
Shopping as a guest. Sign in to save your cart and check out as a dealer.
About this product

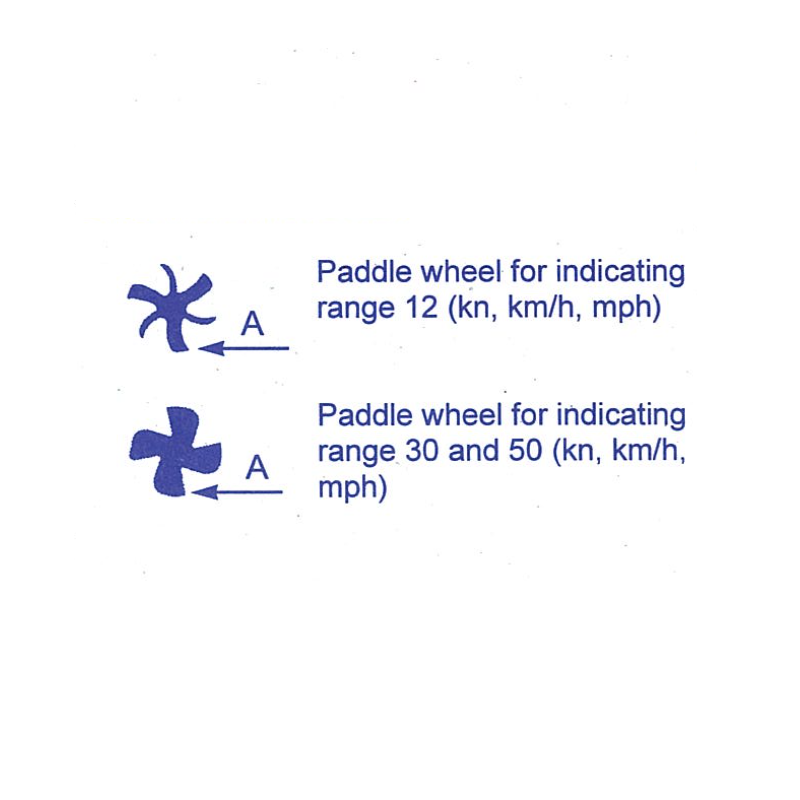

Veratron Sumlog Speed Transducer 270-023-004-002K is the 18–30 knots version of Veratron's paddlewheel speed-through-water sensor. Water flow rotates the paddlewheel while an internal Hall sensor produces frequency pulses that the connected Sumlog-compatible instrument interprets as vessel speed.
Signal and electrical characteristics
This version is calibrated at 18,000 pulses/NM. The transducer operates from 8–16 VDC, draws less than 20 mA at 12 V, and provides a frequency, open-collector output. Because it measures speed through the water rather than GPS speed over ground, it can be used for performance and current analysis when combined with navigation data.
Installation
The Sumlog family supports top- or bottom-mount installation. The installation manual specifies a 42 ±0.2 mm mounting hole. The transducer body is approximately 131 mm long and should be installed where the paddlewheel sees clean, non-aerated water flow and can rotate freely.
Environmental
The transducer is rated IP68 and is specified for operation from -10 °C to +60 °C. Veratron provides a shared Sumlog product-information sheet, multilingual installation manual and CE declaration covering this transducer family.
Product details
- Function
- Speed through water
- Speed range
- 18–30 knots
- Calibration
- 18,000 pulses/NM
- Supply voltage
- 8–16 VDC
- Current draw
- <20 mA @ 12 V
- Output
- Frequency, open collector
- Installation hole
- Ø42 ±0.2 mm
- Protection
- IP68
- Color
- Black
- Series
- Sumlog
- Ip Class
- IP68
- Sensor Type
- Speed through water
- Output Signal
- Frequency, Open Collector
- Nominal Voltage
- 12 V
- Measurement Range
- 18–30 kn
- Transducer Mounting
- Thru-hull
