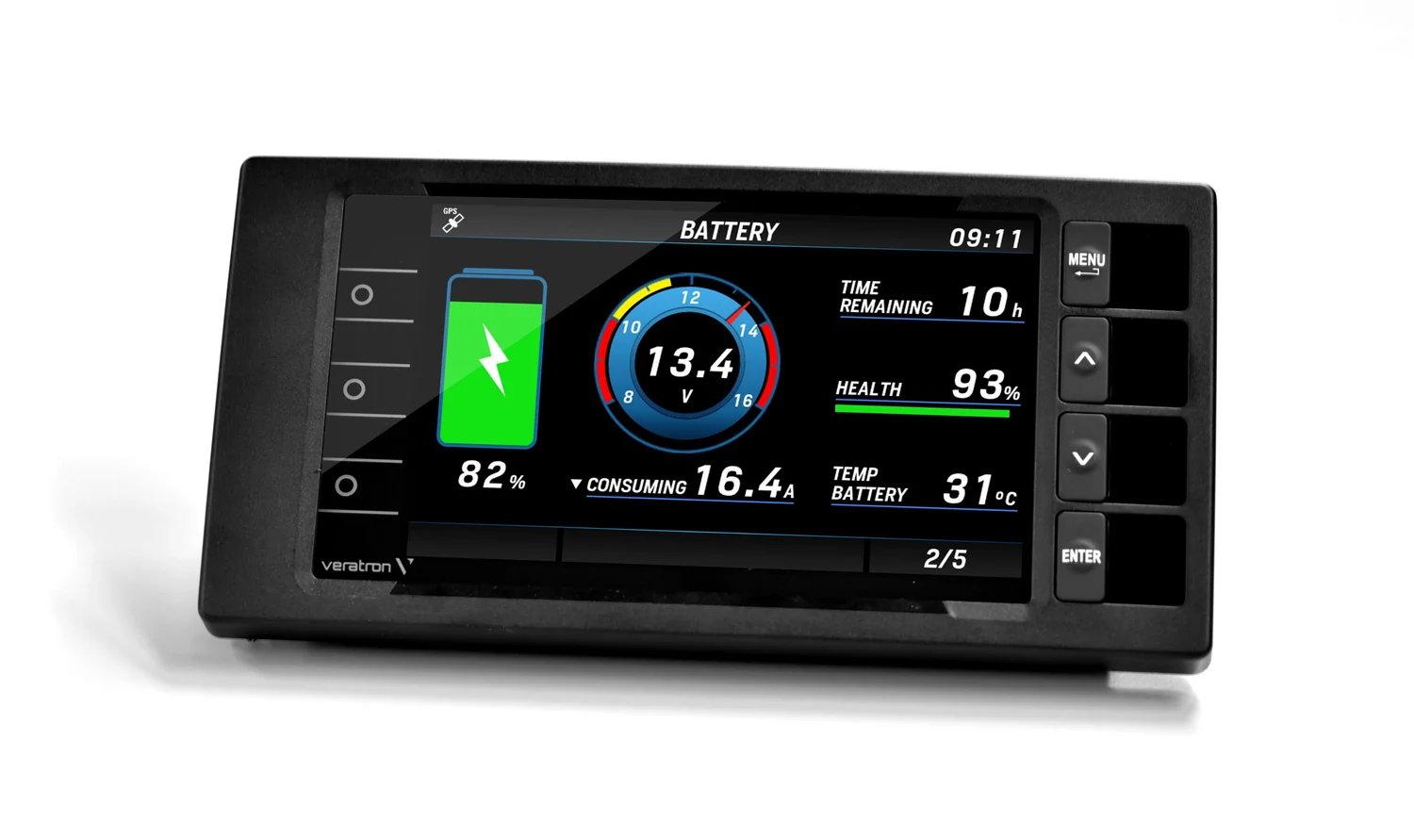

Veratron OceanLink 7 in TFT Multifunction Touchscreen
SKU VER-A2C1865330001
7 in OceanLink touchscreen for multi-engine monitoring with NMEA 2000, dual J1939, dual EasyLink, analog inputs and two composite-video inputs.
- Display
- 7 in TFT touchscreen, 800 x 480 px
- Nominal voltage
- 12/24 V
- Connectivity
- NMEA 2000, 2x SAE J1939, 2x EasyLink, 2x video
- Analog inputs
- 6x resistive, 2x frequency, 2x 4–20 mA, 3x 0–5 V
- Protection
- IPX7
- Overall dimensions
- 9.84 x 4.92 in (250 x 125 mm)
- Panel cutout
- 8.09 x 4.13 in (205.5 x 105 mm)
- Mounting depth
- 2.56 in (65 mm)
Stocked items typically ship the next business day from our US warehouse. 30-day returns on unused stocked items. Exclusions apply. Return policy · Shipping policy
Shopping as a guest. Sign in to save your cart and check out as a dealer.
About this product
Veratron OceanLink 7 in TFT Multifunction Touchscreen is the larger OceanLink master display for comprehensive engine and vessel monitoring. The 7 in touchscreen combines network data, direct engine CAN information, local analog sensors and video in one panel, making it well suited to larger engine rooms and multi-station helm systems.
Key features
- 7 in 24-bit touchscreen TFT, 800 x 480 pixels
- NMEA 2000 certified interface
- Two SAE J1939 engine channels
- Two EasyLink outputs for up to 16 satellite gauges per channel
- Two composite-video inputs
- Extensive local analog inputs: resistive, frequency, current and voltage
- Embedded gateway for supported analog/J1939 data
- IPX7 protection
Integration and functionality
The embedded gateway accepts supported local engine/sensor inputs and dual J1939 sources and can place selected information onto NMEA 2000. The dual EasyLink channels make it possible to build out clusters of compatible 52 mm satellites around a central touchscreen.
Installation
The manual specifies a 205.5 x 105 mm (8.09 x 4.13 in) panel opening, 250 x 125 mm (9.84 x 4.92 in) outer dimensions and 65 mm (2.56 in) minimum mounting depth.
Electrical and environmental
12/24 V nominal, 9–32 V operating range, with normal display consumption up to about 900 mA before satellite loads. The display is rated IPX7.
Product details
- Display
- 7 in TFT touchscreen, 800 x 480 px
- Nominal voltage
- 12/24 V
- Connectivity
- NMEA 2000, 2x SAE J1939, 2x EasyLink, 2x video
- Analog inputs
- 6x resistive, 2x frequency, 2x 4–20 mA, 3x 0–5 V
- Protection
- IPX7
- Overall dimensions
- 9.84 x 4.92 in (250 x 125 mm)
- Panel cutout
- 8.09 x 4.13 in (205.5 x 105 mm)
- Mounting depth
- 2.56 in (65 mm)
- Series
- OL
- Function
- Multifunctional
- Ip Class
- IPX7
- Gauge Size
- 7"
- Display Type
- LCD
- Screen Dimension
- 7"
- Technical Display Type
- 7 in touchscreen
