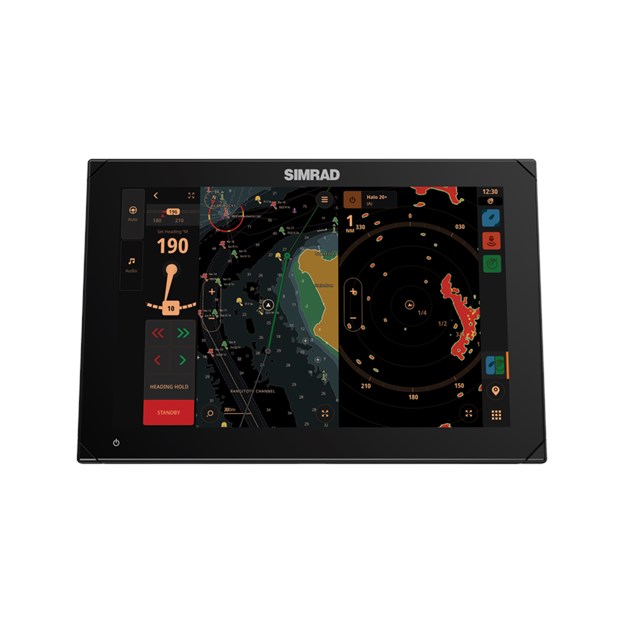

    Simrad NSX 3012 with Active Imaging and HALO20+ Radar — 000-15378-001, view 2
    Simrad

    Simrad NSX 3012 with Active Imaging and HALO20+ Radar

    SKU SIM-000-15378-001

    Our Price$4,799.00
    Usually ships 6-8 days
    Display size
    12"
    Display resolution
    1280 x 800 px
    Dimensions with bracket (W x H x D)
    319.5 x 215.1 x 86.0 mm
    Supply voltage
    12 V DC (10–17 V DC)
    Maximum power consumption
    29.7 W (2150 mA at 13.8 V)
    Included transducer
    Active Imaging™ 3-in-1 transducer
    Included radar
    HALO20+ radar
    Sonar compatibility
    One 9-pin Xsonic Sonar port; single-channel CHIRP, 50/200 kHz, HDI and Active Imaging

    Contact us to confirm availability and shipping time. 30-day returns on unused stocked items. Exclusions apply. Return policy · Shipping policy

    Shopping as a guest. Sign in to save your cart and check out as a dealer.

    About this product

    NSX 3012 multifunction chartplotter/fishfinder bundle with Active Imaging 3-in-1 HDI transducer and HALO20+ radar.

    • 12-inch NSX multifunction display
    • Active Imaging 3-in-1 HDI transducer
    • HALO20+ pulse-compression radar integration
    • C-MAP DISCOVER X charting
    • NEON operating system with redesigned charting and fast auto-routing
    • Integration with Simrad sonar, radar and autopilot systems

    Manufacturer part number: 000-15378-001.

    Verified product information

    Display size
    12"
    Display resolution
    1280 x 800 px
    Dimensions with bracket (W x H x D)
    319.5 x 215.1 x 86.0 mm
    Supply voltage
    12 V DC (10–17 V DC)
    Maximum power consumption
    29.7 W (2150 mA at 13.8 V)
    Included transducer
    Active Imaging™ 3-in-1 transducer
    Included radar
    HALO20+ radar
    Sonar compatibility
    One 9-pin Xsonic Sonar port; single-channel CHIRP, 50/200 kHz, HDI and Active Imaging

    Product details

    Screen Size
    12"
    Bundle Radar
    HALO20+
    Bundle Transducer
    Active Imaging 3-in-1 HDI Transducer
    Waterproof Rating
    IPX6 and IPX7
    Weight
    2.2 kg (4.9 lb)
