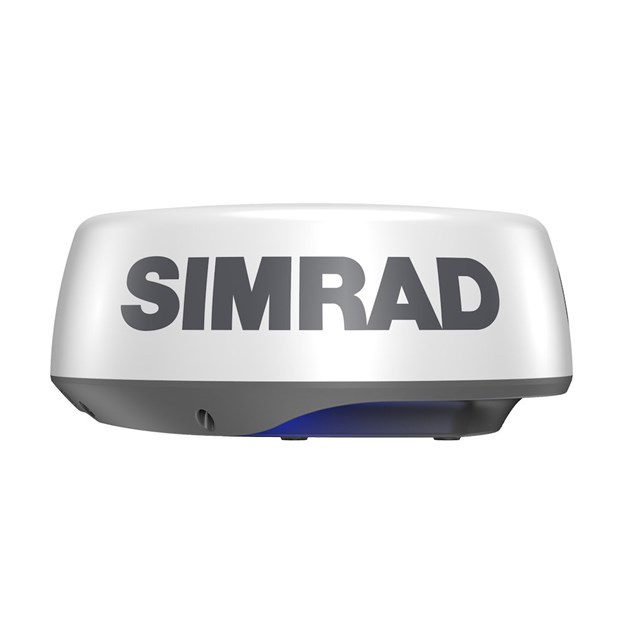

Simrad HALO20+ 20-inch Radar Dome with 10M cable
SKU SIM-000-14536-001
- Dimensions
- 510 mm diameter x 223 mm H (20 in diameter x 8.8 in H)
- Weight
- 5.9 kg (13 lb) without cable
- Power consumption
- 20 W typical; 29 W maximum
- Maximum range
- 36 NM
- Rotation speed
- Up to 60 RPM, range dependent
- Ethernet
- 100 Base-T
- Key technology
- Pulse compression with VelocityTrack Doppler; simultaneous dual range
- Physical dimensions
- 510 mm diameter x 223 mm H (20 in diameter x 8.8 in H)
Stocked items typically ship the next business day from our US warehouse. 30-day returns on unused stocked items. Exclusions apply. Return policy · Shipping policy
Shopping as a guest. Sign in to save your cart and check out as a dealer.
About this product
Compact 20-inch pulse-compression radar dome with 10 m cable, dual-range operation, beam sharpening and VelocityTrack Doppler technology.
- 20-inch dome antenna
- Pulse Compression radar technology
- Dual Range mode
- Up to 60 RPM rotation
- VelocityTrack Doppler technology
- 36 NM maximum range
Manufacturer part number: 000-14536-001.
Verified product information
- Dimensions
- 510 mm diameter x 223 mm H (20 in diameter x 8.8 in H)
- Weight
- 5.9 kg (13 lb) without cable
- Power consumption
- 20 W typical; 29 W maximum
- Maximum range
- 36 NM
- Rotation speed
- Up to 60 RPM, range dependent
- Ethernet
- 100 Base-T
- Key technology
- Pulse compression with VelocityTrack Doppler; simultaneous dual range
Product details
- Radar Range
- 36 NM maximum
- Supply Voltage
- 10.5–31.2 VDC
- Waterproof Rating
- IPX6
- Physical Dimensions
- 510 mm diameter x 223 mm H (20 in diameter x 8.8 in H)
