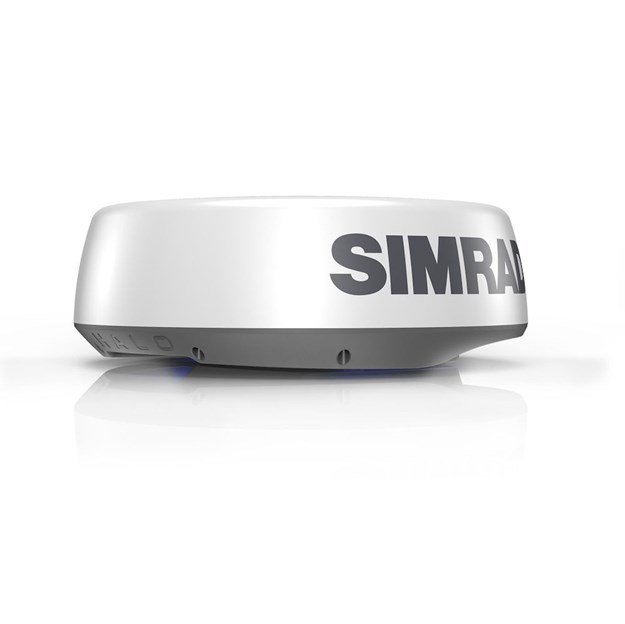

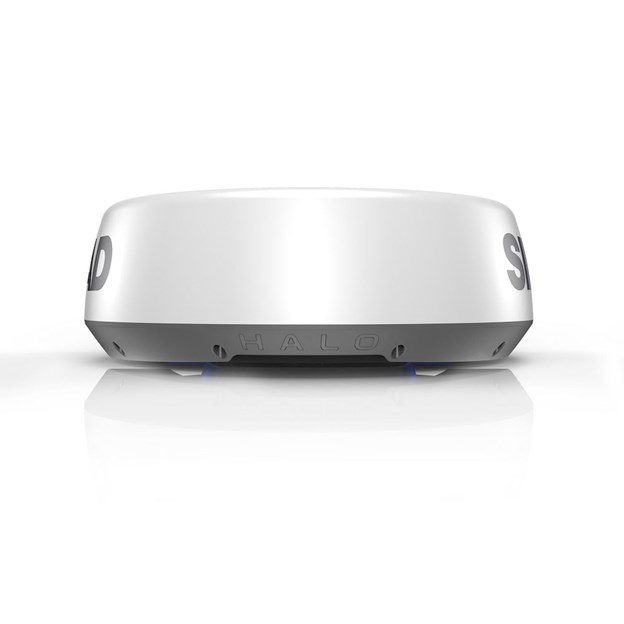

Simrad HALO24 Radar
SKU SIM-000-14535-001
- Dimensions
- 610 mm diameter x 225 mm H (24 in diameter x 8.9 in H)
- Power consumption
- 20 W typical; 29 W maximum
- Supply voltage
- 10.5–31.2 VDC (12/24 V systems)
- Ethernet
- 100 Base-T
- Maximum range
- 48 NM
- Rotation speed
- Up to 60 RPM, range dependent
- Key technology
- Pulse compression with VelocityTrack Doppler; simultaneous dual range
- Weight
- 6.75 kg (14.9 lbs) without cable
Stocked items typically ship the next business day from our US warehouse. 30-day returns on unused stocked items. Exclusions apply. Return policy · Shipping policy
Shopping as a guest. Sign in to save your cart and check out as a dealer.
About this product
Compact 24-inch dome radar with near-real-time 60 RPM operation, VelocityTrack Doppler technology, simultaneous short- and long-range coverage, and range up to 48 nautical miles.
- 60 RPM close-range operation
- VelocityTrack Doppler technology
- Dual Range simultaneous short- and long-range coverage
- Pulse compression and beam sharpening
- Up to 48 nautical miles range
- IPX6 waterproof rating
Manufacturer part number: 000-14535-001.
Verified product information
- Dimensions
- 610 mm diameter x 225 mm H (24 in diameter x 8.9 in H)
- Power consumption
- 20 W typical; 29 W maximum
- Supply voltage
- 10.5–31.2 VDC (12/24 V systems)
- Ethernet
- 100 Base-T
- Maximum range
- 48 NM
- Rotation speed
- Up to 60 RPM, range dependent
- Key technology
- Pulse compression with VelocityTrack Doppler; simultaneous dual range
Product details
- Weight
- 6.75 kg (14.9 lbs) without cable
