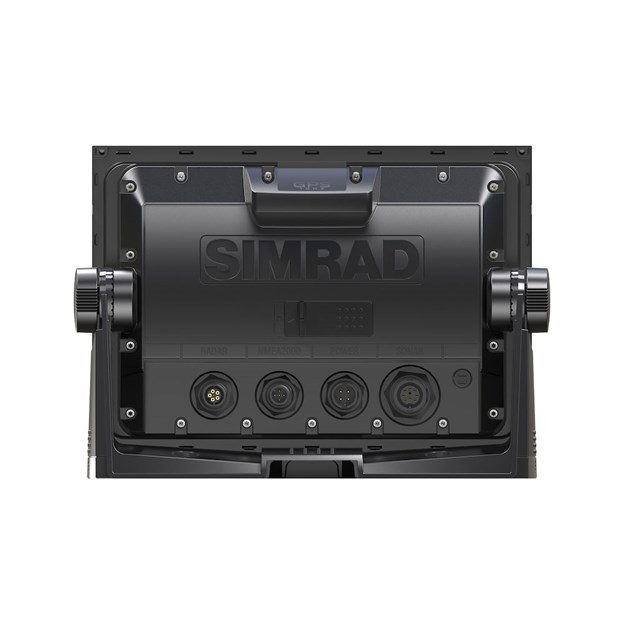

Simrad GO9 XSE
Touchscreen navigation, fishfinding and optional radar integration
SKU SIM-000-14444-001
GO9 XSE multifunction display supplied without a transducer.
- Screen size
- 9"
- Display resolution
- 800 x 480 px
- Built-in sonar
- Yes
- Chart package
- World basemap
- Transducer
- Not included
- Supply voltage
- 10–17 V DC
- GPS
- Internal, 10 Hz
- Mounting
- Bracket or panel
Contact us to confirm availability and shipping time. 30-day returns on unused stocked items. Exclusions apply. Return policy · Shipping policy
Shopping as a guest. Sign in to save your cart and check out as a dealer.
About this product
9-inch touchscreen chartplotter and fishfinder with built-in GPS and sonar, without a transducer.
- 9-inch multi-touch display (800 x 480 px)
- Built-in 10 Hz GPS receiver and echosounder
- Preloaded world basemap; detailed chart cards sold separately
- Display-only package: transducer sold separately
- C-MAP and Navionics chart compatibility
- Simrad radar and autopilot integration with compatible optional equipment
- Wi-Fi, Bluetooth and NMEA 2000 connectivity
- IPX6 and IPX7 water protection; 10–17 V DC supply
Display and navigation
- Display size
- 9"
- Display resolution
- 800 x 480 px
- Interface
- Multi-touch touchscreen
- Blackbox
- No — integrated display
- GPS
- Internal, 10 Hz
Sonar, charts and networking
- Built-in sonar
- Yes
- Sonar compatibility
- Integrated CHIRP, DownScan and ForwardScan; compatible Active Imaging transducers; one 9-pin xSonic port
- Chart package
- Preloaded world basemap; detailed chart cards sold separately
- Supported chart types
- C-MAP and Navionics
- Transducer included
- Not included
- Connectivity
- Wi-Fi, Bluetooth, NMEA 2000 and Ethernet
Electrical and environmental
- Supply voltage
- 10–17 V DC
- Water protection
- IPX6 and IPX7
- Maximum power consumption
- 20 W
- Typical power consumption
- 12 W
Product details
- Screen size
- 9"
- Transducer
- Not included
- Mounting
- Bracket or panel
- Waterproof Rating
- IPX6 and IPX7
- Built In Chart Type
- World basemap
- Weight
- 1.315 kg (2.9 lb)
Compatibility & fitment
Works with
- C-MAP and NavionicsUse chart cards compatible with the display and your cruising region.
- Compatible Simrad radar and autopilot systemsRadar, autopilot computer, drive and network components are separate equipment, not included in these display packages.
What’s included
- 1×Simrad GO9 XSE display
Shipping & returns
- Contact us to confirm availability and shipping time.
- 30-day returns on unused stocked items. Exclusions apply. See policy
- Custom and quoted items are non-returnable once production begins.
Warranty
Backed by the original manufacturer’s warranty plus our workmanship guarantee on assembled harnesses. Contact us with your invoice and we’ll coordinate any covered repair or replacement.
Read the full warranty termsInstallation guidance
These notes are a starting point. They cover the common considerations for a marine install — they don't replace a project review against your specific boat, helm, and circuit list.
- Disconnect the battery and verify zero voltage at the working point before cutting or splicing.
- Match wire gauge to the breaker and the run length, not just to the load.
- Use marine-rated, tinned terminals and seal every crimp against moisture and vibration.
- Route conductors clear of heat sources and protect them where they pass through bulkheads.
