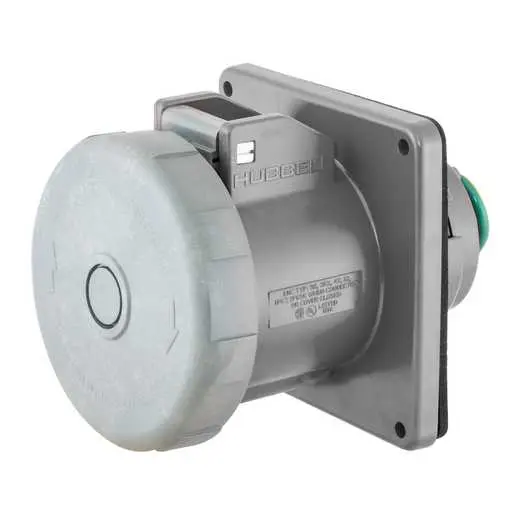

Hubbell M4100R12 100A 125/250 VAC Watertight Receptacle - Gray
SKU HUB-M4100R12
Hubbell M4100R12 watertight receptacle, 100 A, 125/250 VAC.
- Amperage
- 100 A
- Voltage
- 125/250 VAC
- Ingress protection
- IP67
- Poles
- 3-Pole
- Color
- Gray
- Phase
- Single Phase
- Style
- Standard Service
- Wires
- 4-Wire
Stocked items typically ship the next business day from our US warehouse. 30-day returns on unused stocked items. Exclusions apply. Return policy · Shipping policy
Shopping as a guest. Sign in to save your cart and check out as a dealer.
About this product
Hubbell M4100R12 watertight receptacle, 100 A, 125/250 VAC
The Hubbell M4100R12 is a watertight receptacle. Its published electrical configuration is 100 A, 125/250 VAC, 3-Pole, 4-Wire.
Key features
- Amperage: 100 A
- Voltage: 125/250 VAC
- Poles: 3-Pole
- Wiring: 4-Wire
- Conductor range: #3 AWG to #1/0 AWG
- Connectivity: Pressure Terminal Screws
Application & installation notes
It uses pressure-terminal screw connections for #3 AWG to #1/0 AWG conductors. Construction/material: Thermoplastic. Hubbell lists IP67 ingress suitability.
Hubbell PD1160 specifies copper conductors and 75 in-lb (8.5 N·m) terminal-screw torque for the covered marine inlet/receptacle family. Use the exact product’s published conductor range, do not tin conductors, and install the device de-energized.
Product details
- Amperage
- 100 A
- Voltage
- 125/250 VAC
- Ingress protection
- IP67
- Poles
- 3-Pole
- Color
- Gray
- Phase
- Single Phase
- Style
- Standard Service
- Wires
- 4-Wire
- Series
- Corrosion Resistant
- Function
- Watertight Receptacle
- Ip Class
- IP67
- Material
- Thermoplastic
- Mounting
- Screw Mounting
- Wire Size
- #3 AWG to #1/0 AWG
- Nema Rating
- Non-NEMA
- Connectivity
- Pressure Terminal Screws
