Carling A-Series A21 30A Single-Pole Rocker Circuit Breaker
Carling A-Series 30A single-pole hydraulic-magnetic supplementary protector with a flat rocker and slanted 10-32 screw terminals.
SKU CB-A21-RKR-30-A
Carling A-Series 30A single-pole hydraulic-magnetic supplementary protector with a flat rocker and slanted 10-32 screw terminals. MPN A21-B0-34-630-9D1-C. UL 1077 Recognized; CSA Accepted.
- Carling part number
- A21-B0-34-630-9D1-C
- Current
- 30A
- Poles
- 1
- Protection
- Hydraulic-magnetic supplementary protector
- Trip response
- Medium delay (code 34)
- Terminal
- Slant — 10-32 screw
- Series
- A-Series
- Circuit
- Series trip (current)
Stocked items typically ship the next business day from our US warehouse. 30-day returns on unused stocked items. Exclusions apply. Return policy · Shipping policy
Shopping as a guest. Sign in to save your cart and check out as a dealer.
About this product
A21-B0-34-630-9D1-C is a Carling A-Series 30A single-pole flat-rocker hydraulic-magnetic component supplementary protector. Use its complete ordering identity, not the family limits alone, for selection.
Product overview
- Series and poles: A-Series A21; 1 pole
- Protection: Series-trip hydraulic-magnetic supplementary protector
- Rated current: 30A
- Trip response: Medium delay (code 34); DC and 50/60 Hz
- Old or replaced part number: A21-X0-26-739-XA1-E
Verified specifications
- Trip-free: Trips on overload even when the actuator is held ON
- Trip indication: Actuator moves positively to OFF on electrical trip
- Insulation resistance: Minimum 100 megohms at 500 VDC
- Dielectric strength: 1,500 VAC, 60 Hz for one minute between electrically isolated terminals
- Mechanical endurance: 10,000 ON-OFF operations at six operations per minute with rated current and voltage
Installation details

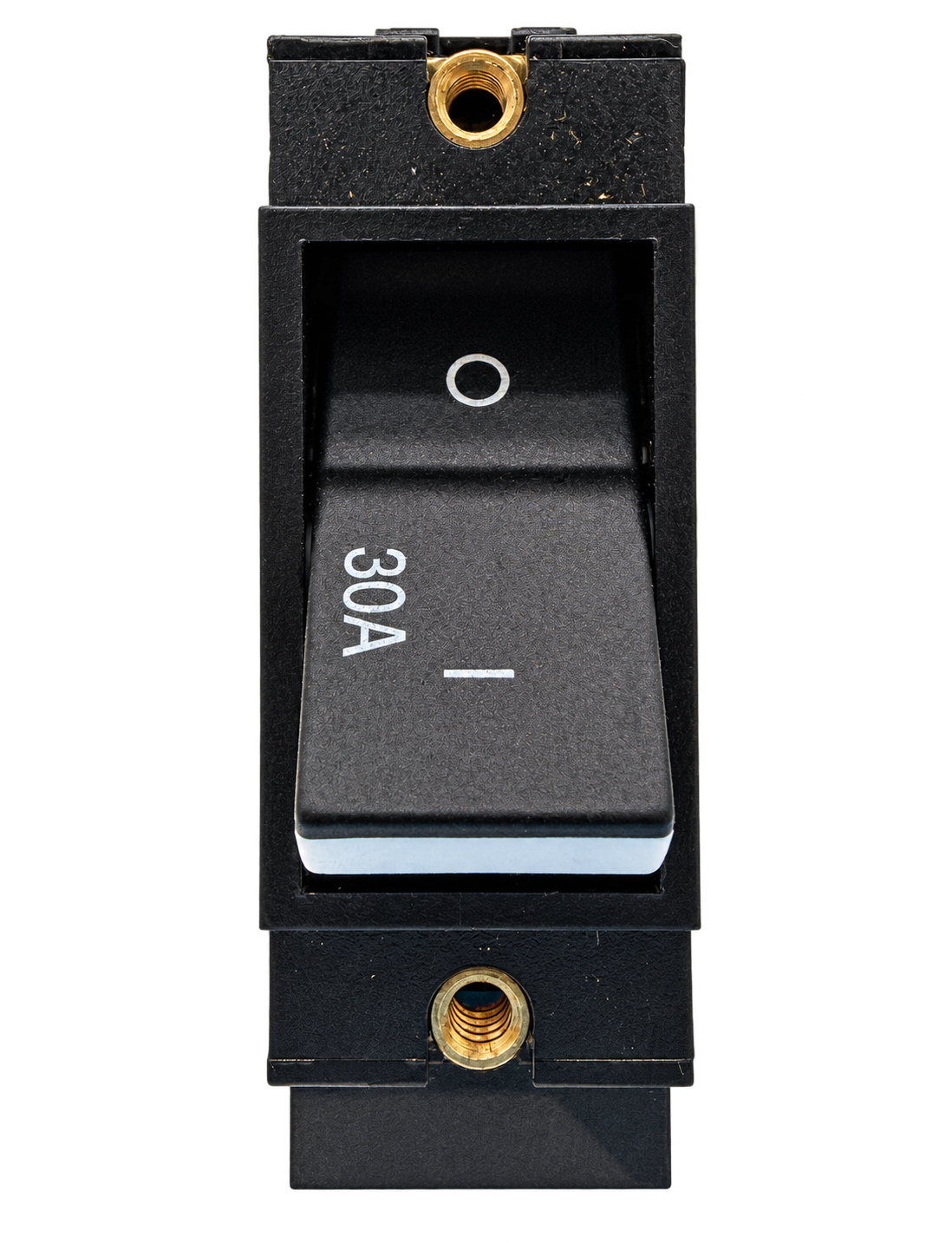

- Actuator: Flat rocker; OFF indication, horizontal legend
- Actuator color and legend: Black, white ON-OFF legend (code D)
- Terminal orientation: Slant

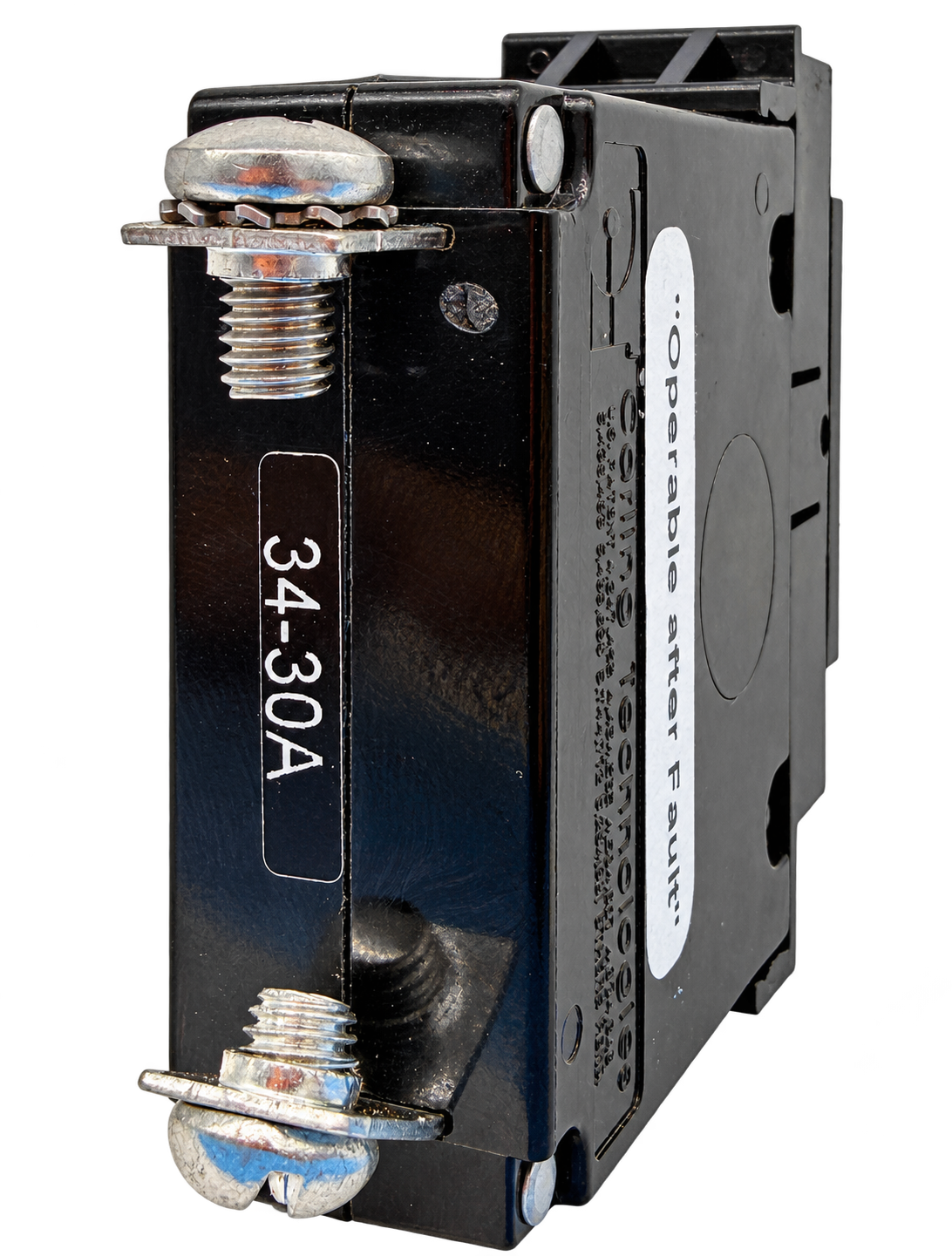

- Terminal configuration: Code 9 CGM slanted rear terminal; 10-32 combination binding-head screw
- Mounting: Standard flat-rocker bezel; two 6-32 x 0.195-inch threaded inserts per pole; no barriers
- Auxiliary/alarm switch: None
Environmental durability
- Operating temperature: -40 C to +85 C
- Shock: 100 G, 6 ms sawtooth; MIL-STD-202 Method 213, Condition I
- Vibration: 0.060-inch excursion at 10-55 Hz and 10 G at 55-500 Hz; Method 204C, Condition A
- Salt spray: Method 101, Condition A; 5% NaCl for 96 hours
- Thermal shock: Method 107D, Condition A; five cycles from -55 C to +25 C to +85 C to +25 C
Agency recognition and selection
- Configuration: UL 1077 Recognized; CSA Accepted
- Family references: Carling A-Series technical specifications (p. 2), electrical tables (p. 3), and Flat Rocker UL 1077 Recognized Ordering Scheme (p. 21).
Selection note: This is a supplementary protector, not a UL 489 branch-circuit breaker. Confirm system voltage, interrupting capacity, conductor size, trip curve and mounting arrangement for the complete part number before installation. Terminal code 9 uses the CGM-specified slanted 10-32 configuration.
Part-number breakdown
- Reference manual
- Carling A-Series datasheet, Flat Rocker UL 1077 Recognized Ordering Scheme (p. 21); terminal code 9: CGM-specified slanted 10-32 configuration
- Complete manufacturer part number
- A21-B0-34-630-9D1-C
- 1. Series
- A — A-Series
- 2. Actuator
- 2 — Flat rocker; OFF indication, horizontal legend
- 3. Poles
- 1 — 1 pole
- 4. Circuit
- B — Series trip (current)
- 5. Auxiliary/alarm switch
- 0 — Without auxiliary switch
- 6. Frequency and delay
- 34 — DC / 50–60 Hz medium
- 7. Current rating code
- 630 — 30 A
- 8. Terminal
- 9 — Slanted rear terminal; 10-32 combination binding-head screw
- 9. Actuator color and legend
- D — Black actuator, white legend (ON–OFF)
- 10. Mounting / barriers
- 1 — Flat-rocker bezel; two 6-32 × 0.195 in threaded inserts per pole; no barriers
- 11. Agency approval
- C — UL Recognized; CSA Accepted
Product details
- Carling part number
- A21-B0-34-630-9D1-C
- Current
- 30A
- Poles
- 1
- Protection
- Hydraulic-magnetic supplementary protector
- Trip response
- Medium delay (code 34)
- Terminal
- Slant — 10-32 screw
- Series
- A-Series
- Circuit
- Series trip (current)
- Voltage
- Not specified
- Amperage
- 30A
- Mounting
- Standard flat-rocker bezel; two 6-32 x 0.195-inch threaded inserts per pole; no barriers
- Frequency
- DC and 50/60 Hz
- Trip Free
- Yes - trips on overload with actuator held ON
- Trip Delay
- Medium delay (code 34)
- Product Type
- Component supplementary protector
- Actuator Type
- Flat rocker
- Terminal Type
- Slant
- Actuator Color
- Black
- Actuator Style
- Flat rocker
- Actuator Legend
- ON-OFF with white legend
- Agency Approval
- UL 1077 Recognized; CSA Accepted
- Protection Type
- Hydraulic-magnetic
- Terminal Thread
- 10-32
- Trip Indication
- Positive OFF-position indication on electrical trip
- Actuator Color Code
- D
- Current Rating Code
- 630
- Dielectric Strength
- 1,500 VAC, 60 Hz, 1 minute between electrically isolated terminals
- Mechanical Endurance
- 10,000 ON-OFF operations at 6 per minute with rated current and voltage
- Replaces Part Number
- A21-X0-26-739-XA1-E
- Insulation Resistance
- Minimum 100 megohms at 500 VDC
- Operating Temperature
- -40 C to +85 C
- Auxiliary Alarm Switch
- None
- Terminal Configuration
- Code 9 CGM slanted rear terminal; 10-32 combination binding-head screw
- Manufacturer Part Number
- A21-B0-34-630-9D1-C
