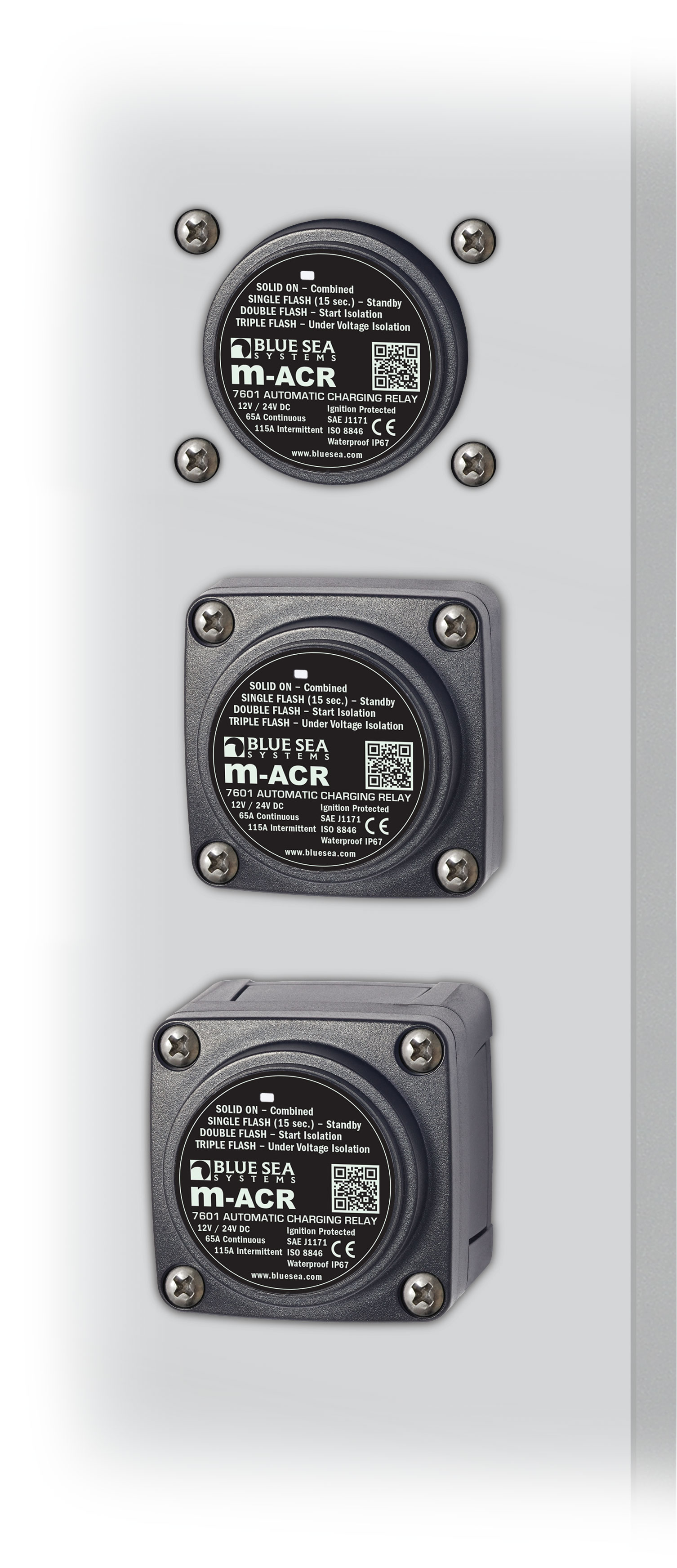

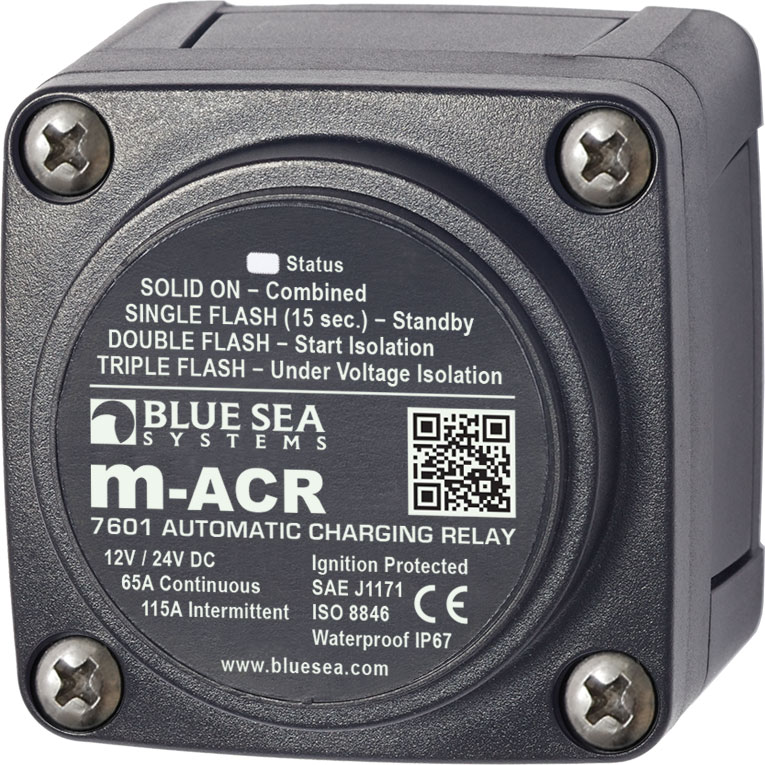

Blue Sea Systems m-Series Automatic Charging Relay - 12/24V DC 65A
SKU BLUE-7601
- Nominal Voltage
- 12V DC; 24V DC
- Start Isolation
- Yes
- Amperage Operating Current
- 90mA (Combine); 15mA (Open)
- Terminal Stud Torque
- 60 in-lb (6.78 Nm)
- Continuous Rating
- 65A
- Intermittent Rating
- 115A (5 min)
- Cable Size to Meet Ratings
- 6 AWG
- Maximum Cable Size
- 1/0 AWG
Stocked items typically ship the next business day from our US warehouse. 30-day returns on unused stocked items. Exclusions apply. Return policy · Shipping policy
Shopping as a guest. Sign in to save your cart and check out as a dealer.
About this product
m-Series Automatic Charging Relay - 12/24V DC 65A. Senses charging on two battery banks. Pull off and snap on insulating cover.
Key features
- Senses charging on two battery banks
- Pull off and snap on insulating cover
- LED indicates ACR status
- 1 ∕4" x .032" male quick connect terminal for ground
- 7∕ 16" (11 mm) stud length to accept multiple cable terminals
- Waterproof – rated IP67 for temporary immersion
For installation planning, check the manufacturer's ratings: nominal voltage: 12V DC; 24V DC; amperage operating current: 90mA (Combine); 15mA (Open); continuous rating: 65A.
Manufacturer part 7601. Confirm the circuit rating, mounting arrangement, and required accessories against the manufacturer specifications before selecting this part.
Manufacturer specifications
- Nominal Voltage
- 12V DC; 24V DC
- Start Isolation
- Yes
- Amperage Operating Current
- 90mA (Combine); 15mA (Open)
- Terminal Stud Torque
- 60 in-lb (6.78 Nm)
- Continuous Rating
- 65A
- Intermittent Rating
- 115A (5 min)
- Cable Size to Meet Ratings
- 6 AWG
- Maximum Cable Size
- 1/0 AWG
- Stud Material
- Tinned Brass
- Terminal Stud Size
- 1/4" - 20 (M6)
- Combine 30 sec
- 13.6V DC
- Open 10 sec
- 12.35V DC
- Open 30 sec
- 12.75V DC
- Open High
- 16.0V
- Undervoltage Lockout
- 9.5V
- Weight
- 0.80lb (0.36 kg)
Product details
- Series
- M
- Voltage
- 12V DC; 24V DC
- Amperage
- 65 A
- Function
- Charge Relay
- Device Type
- m-ACR
- Manufacturer
- Blue Sea Systems
- Product Type
- m-ACR
