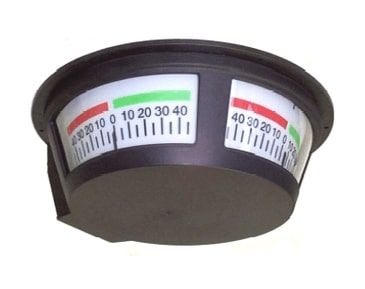

Simrad RI85-45 Panorama Rudder Indicator
SKU SIM-27107622
- Indication / scale
- Three identical backlit 45°–0–45° scales
- Mounting/application
- Overhead mounting on the bridge; readable from any position in the wheelhouse
- Ingress protection
- IP66 (manual states rear panel must be refitted with all four screws to ensure IP66 protection)
- Terminal wire range
- 0.5 mm² (AWG20) to 2.5 mm² (AWG12)
- Nominal indicator supply referenced in manual
- 24 V DC system (manual adjustment instructions refer to 24 V power supply)
- Voltage
- 24 V DC ±25%
- Input signal
- midship reference 0.5 x supply voltage
- Full deflection
- ±9 V
Contact us to confirm availability and shipping time. 30-day returns on unused stocked items. Exclusions apply. Return policy · Shipping policy
Shopping as a guest. Sign in to save your cart and check out as a dealer.
About this product
Large-format analog panoramic rudder-angle indicator for overhead mounting, with three identical backlit 45°-0-45° scales readable from any position in the wheelhouse.
- Analog panoramic view
- +/-45° scale
- Three backlit scales
- Overhead/bridge mounting
- SimNet data-bus communication compatible with NMEA 2000
Manufacturer part number: 27107622.
Verified product information
- Indication / scale
- Three identical backlit 45°–0–45° scales
- Mounting/application
- Overhead mounting on the bridge; readable from any position in the wheelhouse
- Ingress protection
- IP66 (manual states rear panel must be refitted with all four screws to ensure IP66 protection)
- Terminal wire range
- 0.5 mm² (AWG20) to 2.5 mm² (AWG12)
- Nominal indicator supply referenced in manual
- 24 V DC system (manual adjustment instructions refer to 24 V power supply)
Product details
- Voltage
- 24 V DC ±25%
- Input Signal
- midship reference 0.5 x supply voltage
- Full Deflection
- ±9 V
