    Simrad IS42J Instrument Links J1939 Diesel Engines to NMEA 2000 Network — 000-14479-001, view 1
    Simrad

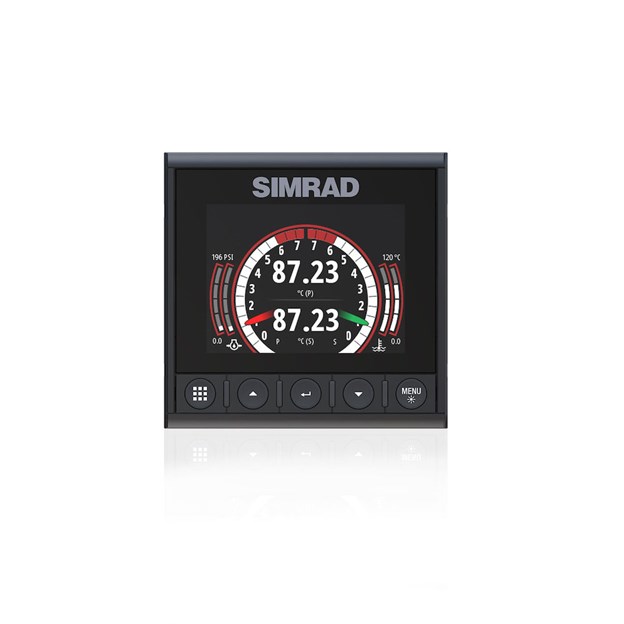

    Simrad IS42J Instrument Links J1939 Diesel Engines to NMEA 2000 Network

    SKU SIM-000-14479-001

    Our Price$923.00
    Usually ships 6-8 days
    Display
    4.1-inch colour display; 320 x 240, 4:3
    Dimensions (W x H x D)
    118 x 115 x 37 mm (4.6 x 4.5 x 1.4 in)
    Weight
    0.32 kg (0.7 lb)
    Power and supply
    2.2 W max / 1.8 W typical; 12 V DC (10–16 V)
    Connectivity
    1 x NMEA 2000 Micro-C port, 1 LEN; built-in J1939-to-NMEA 2000 gateway for up to two J1939 diesel engines
    Waterproof rating
    IPX7
    Display resolution
    320 x 240, 4:3
    NMEA 2000 connectivity
    1 x NMEA 2000 Micro-C port, 1 LEN

    Contact us to confirm availability and shipping time. 30-day returns on unused stocked items. Exclusions apply. Return policy · Shipping policy

    Shopping as a guest. Sign in to save your cart and check out as a dealer.

    About this product

    IS42J digital gauge and gateway for monitoring up to two J1939 diesel engines and linking their data to an NMEA 2000 network.

    • Bright, optically bonded 4.1-inch colour display
    • Monitors up to two J1939-connected engines
    • Displays engine speed, load, pressures, temperatures and alerts
    • Built-in J1939-to-NMEA 2000 gateway
    • One cable to each engine and single DC power connection
    • IPX7 waterproof rating

    Manufacturer part number: 000-14479-001.

    Verified product information

    Display
    4.1-inch colour display; 320 x 240, 4:3
    Dimensions (W x H x D)
    118 x 115 x 37 mm (4.6 x 4.5 x 1.4 in)
    Weight
    0.32 kg (0.7 lb)
    Power and supply
    2.2 W max / 1.8 W typical; 12 V DC (10–16 V)
    Connectivity
    1 x NMEA 2000 Micro-C port, 1 LEN; built-in J1939-to-NMEA 2000 gateway for up to two J1939 diesel engines
    Waterproof rating
    IPX7

    Product details

    Supply Voltage
    12 V DC (10-16 V DC)
    Power Consumption
    2.2 W maximum; 1.8 W typical
    Display Resolution
    320 x 240, 4:3
    Operating Temperature
    -25 to +65 °C
    NMEA 2000 Connectivity
    1 x NMEA 2000 Micro-C port, 1 LEN
