Simrad NAC-3 VRF Core Pack
SKU SIM-000-13338-001
- Application
- Continuum autopilot core pack for outboard and sterndrive vessels greater than 10 metres (35 feet); add a drive unit and a Simrad autopilot controller or multifunction display.
- Pack contents

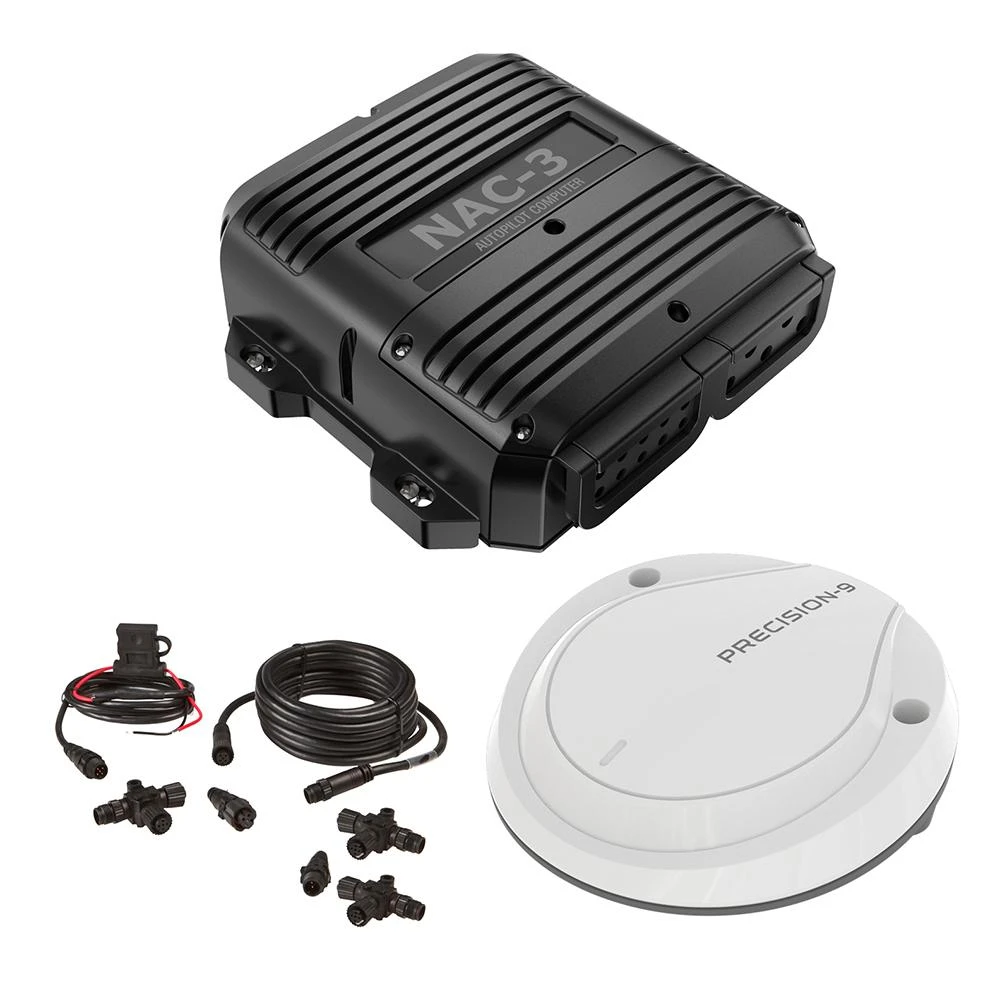

- Precision-9 compass; NAC-3 autopilot computer; Micro-C Backbone Kit; NAC-3 VRF Core Pack kraft-box label.
- VRF
- Virtual Rudder Feedback eliminates the need to install a mechanical rudder feedback unit on outboard and sterndrive boats.
- Supported drive examples
- RPU160/RPU300 high-current pumps, DD15 mechanical drive, HLD2000-series hydraulic linear drives, and solenoid valves.
- NAC-3 technical specifications
- 12/24 V DC (±10–30%); maximum power consumption 750 W; recommended fuse 30 A; operating temperature -25 to +55 °C; IPX5; one Micro-C NMEA 2000 port/1 LEN; one NMEA 0183 input/output (4.8, 9.6, 19.2, 38.4 kbaud); drive 30 A continuous/50 A peak for 1 second; weight 0.7 kg; compass-safe distance 500 mm; 2-year warranty.
- Drive-current guide value
- NAC-3 drives up to 30 A (buyer guide); the buyer guide identifies 000-13338-001 as including NAC-3, Precision-9 and NMEA 2000 cables.
Stocked items typically ship the next business day from our US warehouse. 30-day returns on unused stocked items. Exclusions apply. Return policy · Shipping policy
Shopping as a guest. Sign in to save your cart and check out as a dealer.
About this product
Core components for upgrading outboard or sterndrive boats over 10 metres (35 feet) with a Continuum autopilot system.
- Continuum autopilot core pack
- For outboard and sterndrive boats over 10 m
- Suitable for high-current drive pumps
- Add drive unit for steering system
- Use with Simrad controller or multifunction display
Manufacturer part number: 000-13338-001.
Verified product information
- Application
- Continuum autopilot core pack for outboard and sterndrive vessels greater than 10 metres (35 feet); add a drive unit and a Simrad autopilot controller or multifunction display.
- Pack contents
- Precision-9 compass; NAC-3 autopilot computer; Micro-C Backbone Kit; NAC-3 VRF Core Pack kraft-box label.
- VRF
- Virtual Rudder Feedback eliminates the need to install a mechanical rudder feedback unit on outboard and sterndrive boats.
- Supported drive examples
- RPU160/RPU300 high-current pumps, DD15 mechanical drive, HLD2000-series hydraulic linear drives, and solenoid valves.
- NAC-3 technical specifications
- 12/24 V DC (±10–30%); maximum power consumption 750 W; recommended fuse 30 A; operating temperature -25 to +55 °C; IPX5; one Micro-C NMEA 2000 port/1 LEN; one NMEA 0183 input/output (4.8, 9.6, 19.2, 38.4 kbaud); drive 30 A continuous/50 A peak for 1 second; weight 0.7 kg; compass-safe distance 500 mm; 2-year warranty.
- Drive-current guide value
- NAC-3 drives up to 30 A (buyer guide); the buyer guide identifies 000-13338-001 as including NAC-3, Precision-9 and NMEA 2000 cables.
