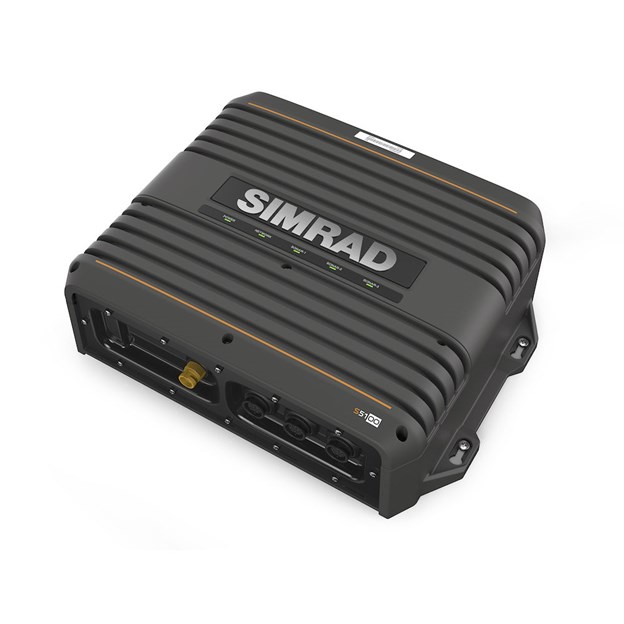

Simrad S5100 Sounder with CHIRP
SKU SIM-000-13260-001
- Sonar performance
- Three independent CHIRP channels; output up to 3 kW depending on transducer
- Dimensions (W x H x D)
- 340 x 100 x 250 mm excluding connectors; 378 mm depth including connectors
- Weight
- 4.7 kg (10.4 lb)
- Power and supply
- 85 W max / 23 W typical; 12 or 24 V DC (10.4–31.2 V)
- Connectivity
- 1 x 100 Mbps Ethernet
- Waterproof rating
- IPX5
- Output power
- up to 3 kW depending on transducer
- Ethernet
- 1 x 100 Mbps
Stocked items typically ship the next business day from our US warehouse. 30-day returns on unused stocked items. Exclusions apply. Return policy · Shipping policy
Shopping as a guest. Sign in to save your cart and check out as a dealer.
About this product
The S5100 is a high-performance CHIRP sonar module with three fully independent channels for high-resolution coverage across multiple depth ranges; it can use up to three transducers.
- Three fully independent sonar channels
- High-resolution, noise-free clarity at all depth ranges
- Combine any three CHIRP frequency ranges to target multiple depths
- Compatible with wide-angle transducers for greater coverage
- Simultaneous split-screen viewing of multiple depth ranges
Manufacturer part number: 000-13260-001.
Verified product information
- Sonar performance
- Three independent CHIRP channels; output up to 3 kW depending on transducer
- Dimensions (W x H x D)
- 340 x 100 x 250 mm excluding connectors; 378 mm depth including connectors
- Weight
- 4.7 kg (10.4 lb)
- Power and supply
- 85 W max / 23 W typical; 12 or 24 V DC (10.4–31.2 V)
- Connectivity
- 1 x 100 Mbps Ethernet
- Waterproof rating
- IPX5
Product details
- Ethernet
- 1 x 100 Mbps
- Output Power
- up to 3 kW depending on transducer
