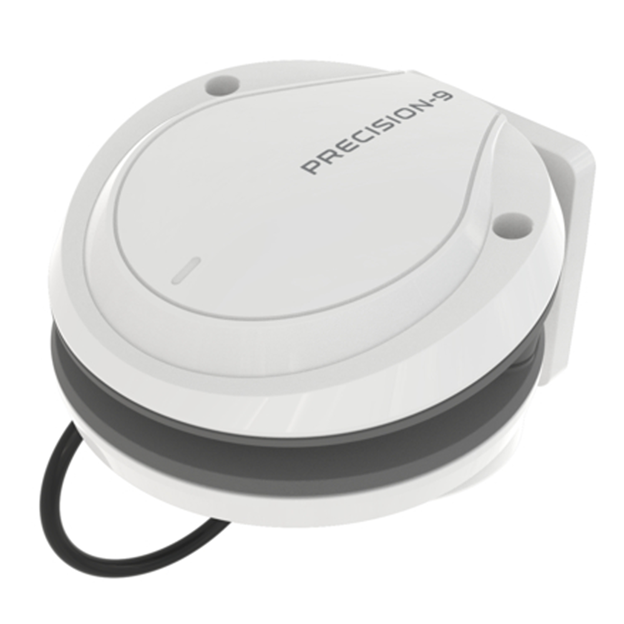

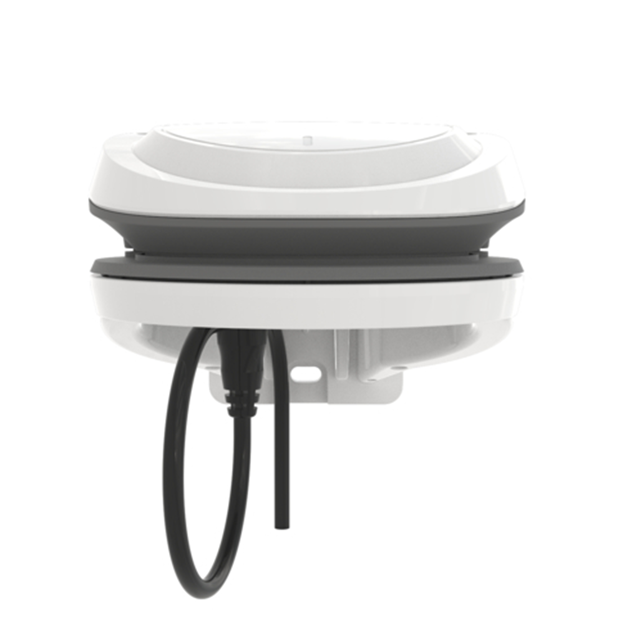

Simrad Precision-9 Compass
SKU SIM-000-12607-001
- Sensor/data
- Solid-state, rate-stabilized nine-axis sensor; magnetic heading, rate of turn, pitch/roll and heave.
- Heading accuracy
- ±2° after calibration; repeatability ±1.0° or better (installation guide).
- Dimensions
- 36 × 119 × 119 mm (1.42 × 4.69 × 4.69 in).
- Weight
- 165 g module + 130 g bracket.
- Power/interface
- 8–16 V via NMEA 2000; maximum 0.4 W; NMEA 2000 load equivalence LEN 1; one input/output port.
- NMEA 2000 output
- PGNs 127250, 127251, 127257 and 127252; magnetic heading 20 Hz, rate of turn 20 Hz, pitch/roll 10 Hz, heave 10 Hz.
- Environment/mounting
- IPX7; operating −25 to +65 °C; storage −30 to +70 °C; compass-safe distance 0.5 m; horizontal or vertical surface mounting; bracket or bulkhead mounting.
- dimensionsOfficial
- 36 x 119 x 119 mm (1.42 x 4.69 x 4.69 in), W x H x D
Stocked items typically ship the next business day from our US warehouse. 30-day returns on unused stocked items. Exclusions apply. Return policy · Shipping policy
Shopping as a guest. Sign in to save your cart and check out as a dealer.
About this product
Solid-state nine-axis heading sensor providing magnetic heading, rate of turn, pitch, roll and heave data over NMEA 2000.
- Measures heading, rate of turn, pitch and roll
- Solid-state, rate-stabilized sensor technology
- Heading accuracy of ±2° after calibration
- Adjustable bracket supports bulkhead or up-mast installation
- IPX7 waterproof rating
- NMEA 2000 connectivity
Manufacturer part number: 000-12607-001.
Verified product information
- Sensor/data
- Solid-state, rate-stabilized nine-axis sensor; magnetic heading, rate of turn, pitch/roll and heave.
- Heading accuracy
- ±2° after calibration; repeatability ±1.0° or better (installation guide).
- Dimensions
- 36 × 119 × 119 mm (1.42 × 4.69 × 4.69 in).
- Weight
- 165 g module + 130 g bracket.
- Power/interface
- 8–16 V via NMEA 2000; maximum 0.4 W; NMEA 2000 load equivalence LEN 1; one input/output port.
- NMEA 2000 output
- PGNs 127250, 127251, 127257 and 127252; magnetic heading 20 Hz, rate of turn 20 Hz, pitch/roll 10 Hz, heave 10 Hz.
- Environment/mounting
- IPX7; operating −25 to +65 °C; storage −30 to +70 °C; compass-safe distance 0.5 m; horizontal or vertical surface mounting; bracket or bulkhead mounting.
Product details
- SensorType
- Solid state, rate stabilized
- Connectivity
- 1 x NMEA 2000 Micro-C port, 1 LEN
- ModuleWeight
- 0.165 kg
- MountingType
- Bracket, Bulkhead
- BracketWeight
- 0.130 kg
- SupplyVoltage
- 12 V DC (8-16 V DC) via NMEA 2000
- WaterproofRating
- IPX7
- DimensionsOfficial
- 36 x 119 x 119 mm (1.42 x 4.69 x 4.69 in), W x H x D
- PowerConsumptionMax
- 0.4 W (N2K Load 1 LEN)
- HeadingSensorAccuracy
- ±2° after calibration
