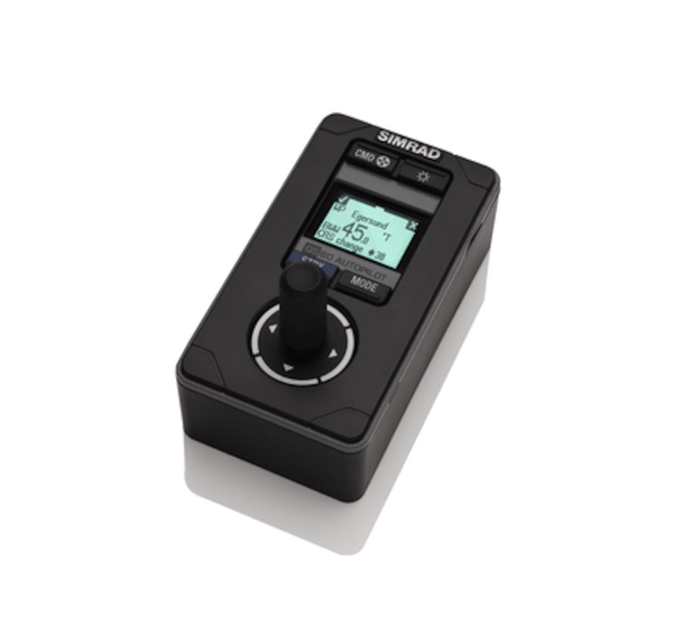

    Simrad QS80 Quick Stick Remote — 000-10184-001, view 1
    Simrad

    Simrad QS80 Quick Stick Remote

    SKU SIM-000-10184-001

    Our Price$1,019.00
    Usually ships 6-8 days
    Function
    Quick Stick joystick provides non-follow-up hand steering; spring-loaded joystick turns rudder while held and downward pull returns rudder to centre; can toggle auto/manual steering.
    Display
    2-inch monochrome bounded transflective display; 128 x 64 resolution; official product page describes integrated 1.7-inch display (the legacy manual gives the technical display specification).
    Viewing direction
    6 o'clock.
    Interface and cable
    Factory-connected 6 m (19.7 ft) Micro-C drop cable; CAN/NMEA 2000. SimNet via optional SimNet-to-Micro-C cable.
    Power/current
    Powered via CAN bus or SimNet; off network current <20 mA (NMEA 2000 LEN 1), on at maximum illumination <110 mA (LEN 3).
    Weight
    0.4 kg (0.88 lb).
    Environment
    -25 to +55 C (-13 to +131 F); exposed front weather protection corresponding to IPX6; compass-safe distance 0.4 m.
    Mounting/dimensions
    Flush panel or optional bulkhead/desktop frame; shared FU80/NF80/QS80 mounting template controls cutout.

    Contact us to confirm availability and shipping time. 30-day returns on unused stocked items. Exclusions apply. Return policy · Shipping policy

    Shopping as a guest. Sign in to save your cart and check out as a dealer.

    About this product

    Wired joystick remote for a Simrad autopilot system, providing non-follow-up hand steering, autopilot heading/status control and a shortcut to automatically centre the rudder.

    • Non-follow-up steering
    • Spring-return joystick
    • Switches between autopilot and hand steering
    • Plug-and-play NMEA 2000 connectivity
    • Flush or bulkhead mounting
    • IPx6 waterproof rating

    Manufacturer part number: 000-10184-001.

    Verified product information

    Function
    Quick Stick joystick provides non-follow-up hand steering; spring-loaded joystick turns rudder while held and downward pull returns rudder to centre; can toggle auto/manual steering.
    Display
    2-inch monochrome bounded transflective display; 128 x 64 resolution; official product page describes integrated 1.7-inch display (the legacy manual gives the technical display specification).
    Viewing direction
    6 o'clock.
    Interface and cable
    Factory-connected 6 m (19.7 ft) Micro-C drop cable; CAN/NMEA 2000. SimNet via optional SimNet-to-Micro-C cable.
    Power/current
    Powered via CAN bus or SimNet; off network current <20 mA (NMEA 2000 LEN 1), on at maximum illumination <110 mA (LEN 3).
    Weight
    0.4 kg (0.88 lb).
    Environment
    -25 to +55 C (-13 to +131 F); exposed front weather protection corresponding to IPX6; compass-safe distance 0.4 m.
    Mounting/dimensions
    Flush panel or optional bulkhead/desktop frame; shared FU80/NF80/QS80 mounting template controls cutout.

    Product details

    Mounting Type
    Flush, bulkhead
    Supply Voltage
    12-16 V via CAN
    Backlight Color
    White
    Display Resolution
    128 x 64
    Operating Temperature
    -25 C to +55 C (-13 F to +131 F)
    Power Consumption Max
    110 mA
    NMEA 2000 Connectivity
    1x CAN Micro-C port, 1 LEN
