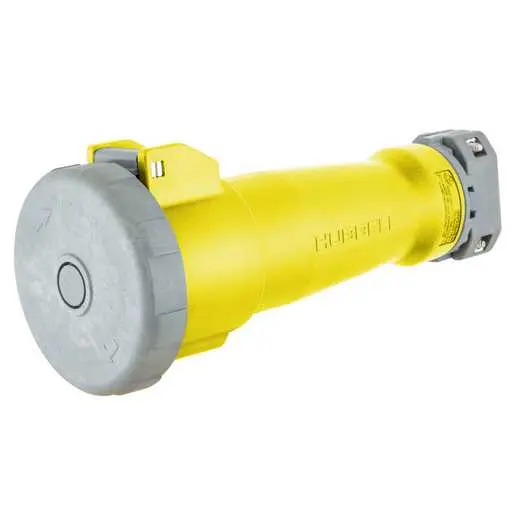

Hubbell M5100C7 100A 3 Phase Y 277/480 VAC Watertight Connector Body - Yellow
SKU HUB-M5100C7
Hubbell M5100C7 watertight connector body, 100 A, 3 Phase Y 277/480 VAC.
- Amperage
- 100 A
- Voltage
- 3 Phase Y 277/480 VAC
- Ingress protection
- IP67
- Poles
- 4-Pole
- Color
- Yellow
- Style
- Standard Service
- Wires
- 5-Wire
- Series
- Corrosion Resistant
Lead time: 42 business days. 30-day returns on unused stocked items. Exclusions apply. Return policy · Shipping policy
Shopping as a guest. Sign in to save your cart and check out as a dealer.
About this product
Hubbell M5100C7 watertight connector body, 100 A, 3 Phase Y 277/480 VAC
The Hubbell M5100C7 is a watertight connector body for high ampacity connections. Its published electrical configuration is 100 A, 3 Phase Y 277/480 VAC, 4-Pole, 5-Wire.
Key features
- Amperage: 100 A
- Voltage: 3 Phase Y 277/480 VAC
- Poles: 4-Pole
- Wiring: 5-Wire
- Conductor range: #4 AWG to #2 AWG
- Connectivity: Pressure Terminal Screws
Application & installation notes
It uses pressure-terminal screw connections for #4 AWG to #2 AWG conductors. Hubbell lists IP67 ingress suitability.
Hubbell PD1310 specifies stranded copper conductors in the #3 to #1 AWG range for the covered 100A marine pin-and-sleeve plugs/connectors, with 75 in-lb (8.5 N·m) terminal-screw torque and 15 in-lb (1.75 N·m) cord-clamp torque. Conductors should not be tinned.
Product details
- Amperage
- 100 A
- Voltage
- 3 Phase Y 277/480 VAC
- Ingress protection
- IP67
- Poles
- 4-Pole
- Color
- Yellow
- Style
- Standard Service
- Wires
- 5-Wire
- Series
- Corrosion Resistant
- Function
- Watertight Connector Body
- Ip Class
- IP67
- Mounting
- Cord Mounted
- Wire Size
- #4 AWG to #2 AWG
- Nema Rating
- Non-NEMA
- Connectivity
- Pressure Terminal Screws
