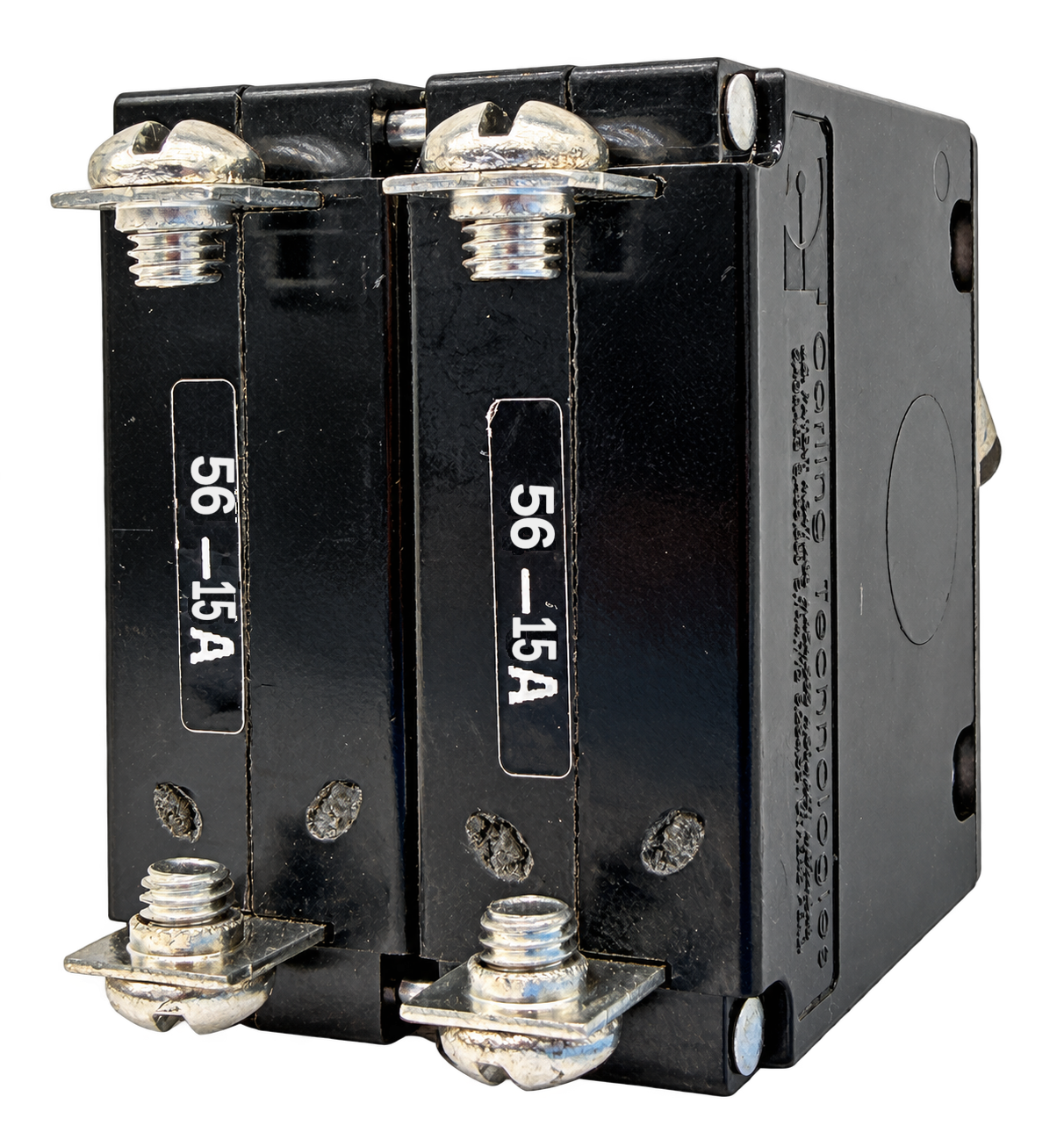

Carling A-Series AM2 15A Double-Pole Sealed Toggle Circuit Breaker
SKU CB-AM2-15AMP-56-501
Carling A-Series AM2 15A double-pole hydraulic-magnetic supplementary protector with a sealed metal toggle.
- Carling part number
- AM2-B0-56-615-501-I
- Current
- 15A
- Poles
- 2
- Protection
- Hydraulic-magnetic supplementary protector
- Trip response
- Long delay, high-inrush (code 56)
- Terminal
- 10-32 Screw (Bus Type)
- Series
- A-Series
- Circuit
- Series trip (current)
Contact us to confirm availability and shipping time. 30-day returns on unused stocked items. Exclusions apply. Return policy · Shipping policy
Shopping as a guest. Sign in to save your cart and check out as a dealer.
About this product
Carling A-Series AM2 15A double-pole hydraulic-magnetic supplementary protector with a sealed metal toggle. MPN AM2-B0-56-615-501-I. UL 1077 and UL 1500 Recognized (ignition protected); CSA Accepted.
AM2-B0-56-615-501-I is a Carling A-Series 15A double-pole hydraulic-magnetic component supplementary protector with a sealed metal toggle. Its complete ordering identity, rather than the family limits alone, should be used for selection.
Product overview
- Series and poles: A-Series AM2; 2 poles
- Protection: Series-trip hydraulic-magnetic supplementary protector
- Catalog rated current: 15A
- Trip response: Long delay, high-inrush (code 56)
- Frequency: DC
- Catalog voltage: 80V DC
Verified specifications
- Trip-free: Trips on overload even when the actuator is held ON
- Trip indication: Actuator moves positively to OFF on electrical trip
- Insulation resistance: Minimum 100 megohms at 500 VDC
- Dielectric strength: 1,500 VAC, 60 Hz, 1 minute between electrically isolated terminals
- Mechanical endurance: 10,000 ON-OFF operations at 6 per minute with rated current and voltage
Installation details
- Terminal configuration: Code 5: 10-32 screw (bus type)
- Actuator: One per unit, on the right pole when viewed from the front
- Legend plate: None
- Mounting: Standard hex nut; no barriers
- Auxiliary/alarm switch: None
Environmental durability
- Operating temperature: -40 C to +85 C
- Shock: 100 G, 6 ms sawtooth; MIL-STD-202 Method 213, Condition I
- Vibration: 0.060 in excursion, 10-55 Hz; 10 G, 55-500 Hz; Method 204C, Condition A
- Salt spray: Method 101, Condition A; 5% NaCl, 96 hours
- Thermal shock: Method 107D, Condition A; five cycles, -55 C to +85 C
- Moisture resistance: Method 106D; ten 24-hour cycles at +25 C to +65 C, 80-98% RH; 56 days at +85 C, 85% RH
Agency recognition and selection
- Configuration: UL 1077 and UL 1500 Recognized (ignition protected); CSA Accepted
- Selection: This is a recognized supplementary protector, not an assertion of UL 489 branch-circuit listing. Verify the complete part number, system voltage, trip curve, conductor size, terminals and mounting against the manufacturer documentation.
Part-number breakdown
- Reference manual
- Carling A-Series datasheet, Sealed Toggle UL Recognized Ordering Scheme (p. 14)
- Complete manufacturer part number
- AM2-B0-56-615-501-I
- 1. Series
- A — A-Series
- 2. Actuator
- M — Sealed toggle, one per unit; right pole on a two-pole unit
- 3. Poles
- 2 — 2 poles
- 4. Circuit
- B — Series trip (current)
- 5. Auxiliary/alarm switch
- 0 — Without auxiliary switch
- 6. Frequency and delay
- 56 — DC long, high-inrush
- 7. Current rating code
- 615 — 15 A
- 8. Terminal
- 5 — 10-32 screw (bus type)
- 9. Legend plate
- 0 — No legend plate
- 10. Mounting / barriers
- 1 — Standard hex nut; no barriers
- 11. Agency approval
- I — UL 1077 and UL 1500 (ignition protected) Recognized; CSA Accepted
Product details
- Carling part number
- AM2-B0-56-615-501-I
- Current
- 15A
- Poles
- 2
- Protection
- Hydraulic-magnetic supplementary protector
- Trip response
- Long delay, high-inrush (code 56)
- Terminal
- 10-32 Screw (Bus Type)
- Series
- A-Series
- Circuit
- Series trip (current)
- Voltage
- 80V DC
- Amperage
- 15A
- Mounting
- Standard hex nut; no barriers
- Frequency
- DC
- Trip Free
- Yes - trips on overload with actuator held ON
- Trip Delay
- Long delay, high-inrush (code 56)
- Legend Plate
- None
- Product Type
- Component supplementary protector
- Actuator Type
- Sealed metal toggle
- Housing Color
- Black
- Terminal Type
- 10-32 Screw (Bus Type)
- Thermal Shock
- Method 107D, Condition A; five cycles, -55 C to +85 C
- Actuator Style
- Toggle
- Ul Recognition
- QVNU2, File E75596
- Agency Approval
- UL 1077 and UL 1500 Recognized (ignition protected); CSA Accepted
- Protection Type
- Hydraulic-magnetic
- Trip Indication
- Positive OFF-position indication on electrical trip
- Shock Resistance
- 100 G, 6 ms sawtooth; MIL-STD-202 Method 213, Condition I
- Actuator Location
- One per unit, on the right pole when viewed from the front
- Csa Certification
- Class 3215 30, File 047848 0 000; CSA C22.2 No. 235
- Family Max Current
- 50 A
- Family Max Voltage
- 277 VAC / 80 VDC - configuration dependent, not an exact-model rating
- Current Rating Code
- 615
- Dielectric Strength
- 1,500 VAC, 60 Hz, 1 minute between electrically isolated terminals
- Moisture Resistance
- Method 106D; ten 24-hour cycles at +25 C to +65 C, 80-98% RH; 56 days at +85 C, 85% RH
- Mechanical Endurance
- 10,000 ON-OFF operations at 6 per minute with rated current and voltage
- Vibration Resistance
- 0.060 in excursion, 10-55 Hz; 10 G, 55-500 Hz; Method 204C, Condition A
- Insulation Resistance
- Minimum 100 megohms at 500 VDC
- Operating Temperature
- -40 C to +85 C
- Salt Spray Resistance
- Method 101, Condition A; 5% NaCl, 96 hours
- Auxiliary Alarm Switch
- None
- Terminal Configuration
- Code 5: 10-32 screw (bus type)
- Manufacturer Part Number
- AM2-B0-56-615-501-I
- Approximate Weight Per Pole
- 65 g / 2.32 oz
