AA1-B0-34-615-9D1-C

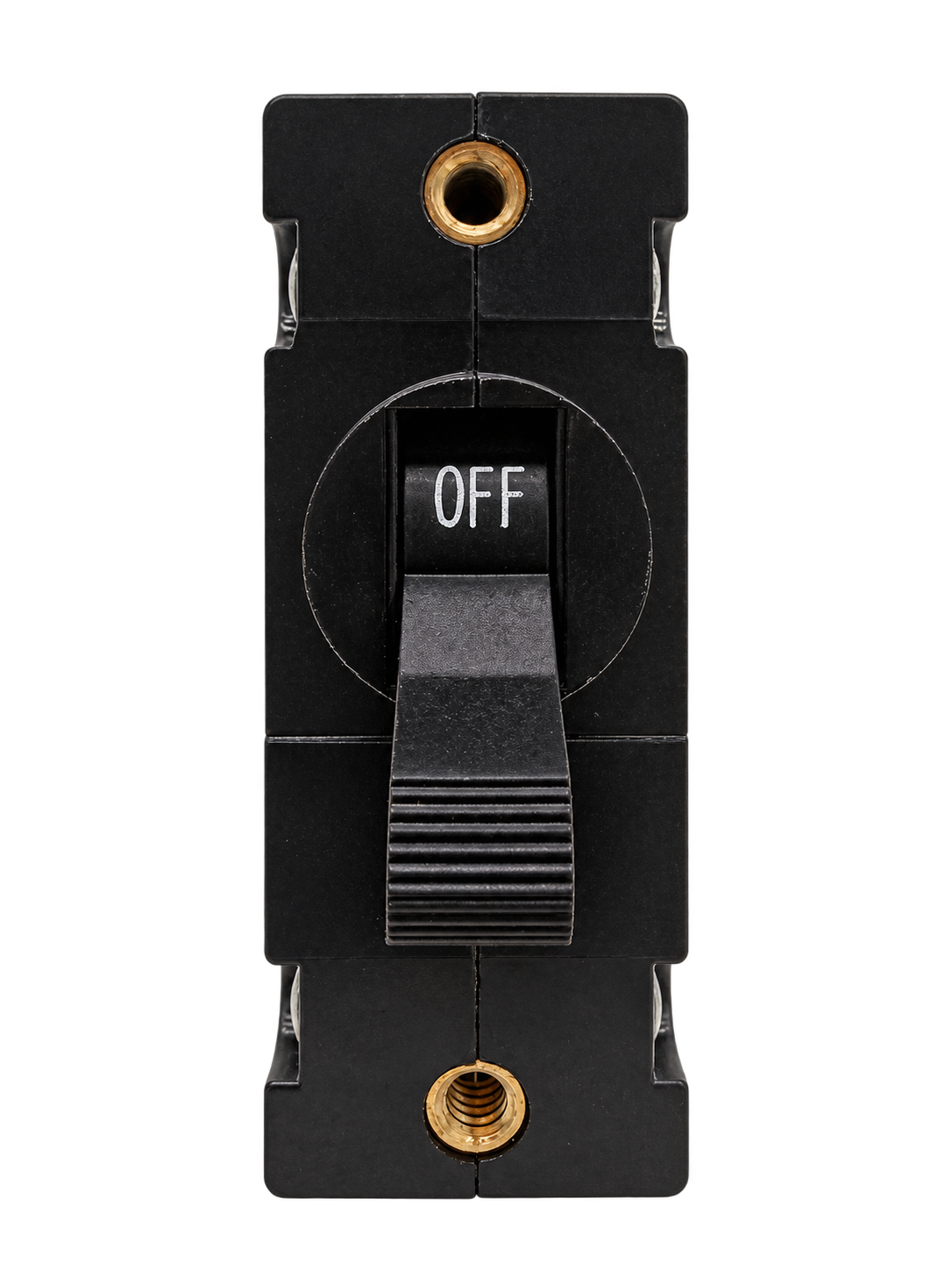

Carling A-Series 15A single-pole hydraulic-magnetic supplementary protector with slant terminals.
SKU CB-AA1-15A-SP
Carling A-Series 15A single-pole hydraulic-magnetic supplementary protector with slant terminals. MPN AA1-B0-34-615-9D1-C. UL 1077 Recognized; CSA Accepted.
- Carling part number
- AA1-B0-34-615-9D1-C
- Current
- 15A
- Poles
- 1
- Protection
- Hydraulic-magnetic supplementary protector
- Trip response
- Medium delay (code 34)
- Terminal
- Slant
- Color
- Black
- Series
- A-Series
Stocked items typically ship the next business day from our US warehouse. 30-day returns on unused stocked items. Exclusions apply. Return policy · Shipping policy
Shopping as a guest. Sign in to save your cart and check out as a dealer.
About this product
AA1-B0-34-615-9D1-C is a Carling A-Series 15A single-pole hydraulic-magnetic component supplementary protector. Its complete ordering identity, rather than the family limits alone, should be used for selection.
Product overview
- Series and poles: A-Series AA1; 1 pole
- Protection: Series-trip hydraulic-magnetic supplementary protector
- Rated current: 15A
- Trip response: Medium delay (code 34)
- Old or replaced part number: AA1-X0-08-529-XD1-C
Verified specifications
- Trip-free: Trips on overload even when the actuator is held ON
- Trip indication: Actuator moves positively to OFF on electrical trip
- Insulation resistance: Minimum 100 megohms at 500 VDC
- Dielectric strength: 1,500 VAC, 60 Hz for one minute between electrically isolated terminals
- Current tolerance: +/-25%
- Mechanical endurance: 10,000 ON-OFF operations at six operations per minute with rated current and voltage
Installation details
- Terminal orientation: Slant
- Terminal configuration: Code 9 CGM slanted rear terminal; 10-32 combination binding-head screw
- Mounting: Two 6-32 x 0.195-inch threaded inserts per pole; no barriers
- Terminal torque: 15-20 in-lb (1.7-2.3 N-m)
Environmental durability
- Operating temperature: -40 C to +85 C
- Shock: 100 G, 6 ms sawtooth, MIL-STD-202 Method 213 Condition I
- Vibration: 0.060-inch excursion at 10-55 Hz and 10 G at 55-500 Hz, Method 204C Condition A
- Salt spray: Method 101 Condition A, 5% NaCl for 96 hours
- Thermal shock: Method 107D Condition A, five cycles from -55 C to +85 C
Agency recognition and selection
- Configuration: UL 1077 Recognized; CSA Accepted
Part-number breakdown
- Reference manual
- Carling A-Series datasheet, UL 1077 Handle Ordering Scheme (p. 6)
- Complete manufacturer part number
- AA1-B0-34-615-9D1-C
- 1. Series
- A — A-Series
- 2. Actuator
- A — Handle, one per pole
- 3. Poles
- 1 — 1 pole
- 4. Circuit
- B — Series trip (current)
- 5. Auxiliary/alarm switch
- 0 — Without auxiliary switch
- 6. Frequency and delay
- 34 — DC / 50–60 Hz medium
- 7. Current rating code
- 615 — 15 A
- 8. Terminal
- 9 — Slant orientation
- 9. Actuator color and legend
- D — Black actuator, white legend (ON–OFF)
- 10. Mounting / barriers
- 1 — Two 6-32 × 0.195 in threaded inserts per pole; no barriers
- 11. Agency approval
- C — UL Recognized; CSA Accepted
Product details
- Carling part number
- AA1-B0-34-615-9D1-C
- Current
- 15A
- Poles
- 1
- Protection
- Hydraulic-magnetic supplementary protector
- Trip response
- Medium delay (code 34)
- Terminal
- Slant
- Color
- Black
- Series
- A-Series
- Circuit
- Series trip (current)
- Voltage
- Not specified
- Amperage
- 15A
- Mounting
- Two 6-32 x 0.195-inch threaded inserts per pole; no barriers
- Frequency
- DC and 50/60 Hz
- Trip Free
- Yes - trips on overload with actuator held ON
- Trip Delay
- Medium delay (code 34)
- Product Type
- Component supplementary protector
- Actuator Type
- Handle, one per pole
- Housing Color
- Black
- Terminal Type
- Slant
- Thermal Shock
- Method 107D, Condition A; five cycles, -55 C to +85 C
- Actuator Color
- Black
- Actuator Style
- Toggle
- Ul Recognition
- QVNU2, File E75596
- Actuator Legend
- ON-OFF with white legend
- Agency Approval
- UL 1077 Recognized; CSA Accepted
- Protection Type
- Hydraulic-magnetic
- Trip Indication
- Positive OFF-position indication on electrical trip
- Shock Resistance
- 100 G, 6 ms sawtooth; MIL-STD-202 Method 213, Condition I
- Csa Certification
- Class 3215 30, File 047848 0 000; CSA C22.2 No. 235
- Current Tolerance
- +/-25%
- Family Max Current
- 50 A
- Family Max Voltage
- 277 VAC / 80 VDC - configuration dependent
- Actuator Color Code
- D
- Current Rating Code
- 615
- Dielectric Strength
- 1,500 VAC, 60 Hz, 1 minute between electrically isolated terminals
- Moisture Resistance
- Method 106D; ten 24-hour cycles at +25 C to +65 C, 80-98% RH; 56 days at +85 C, 85% RH
- Mechanical Endurance
- 10,000 ON-OFF operations at 6 per minute with rated current and voltage
- Replaces Part Number
- AA1-X0-08-529-XD1-C
- Typical Applications
- Marine; renewable energy; telecom; welders; generators; military; industrial automation; commercial food equipment; medical equipment
- Vibration Resistance
- 0.060 in excursion, 10-55 Hz; 10 G, 55-500 Hz; Method 204C, Condition A
- Insulation Resistance
- Minimum 100 megohms at 500 VDC
- Operating Temperature
- -40 C to +85 C
- Salt Spray Resistance
- Method 101, Condition A; 5% NaCl, 96 hours
- Terminal Screw Torque
- 15-20 in-lb (1.7-2.3 N-m)
- Auxiliary Alarm Switch
- None
- Terminal Configuration
- Code 9 CGM slanted rear terminal; 10-32 combination binding-head screw
- Manufacturer Part Number
- AA1-B0-34-615-9D1-C
- Mounting Hardware Torque
- 7-9 in-lb (0.8-1.0 N-m)
- Approximate Weight Per Pole
- 65 g / 2.32 oz
- Family Max Interrupting Capacity
- 7,500 A - configuration dependent
