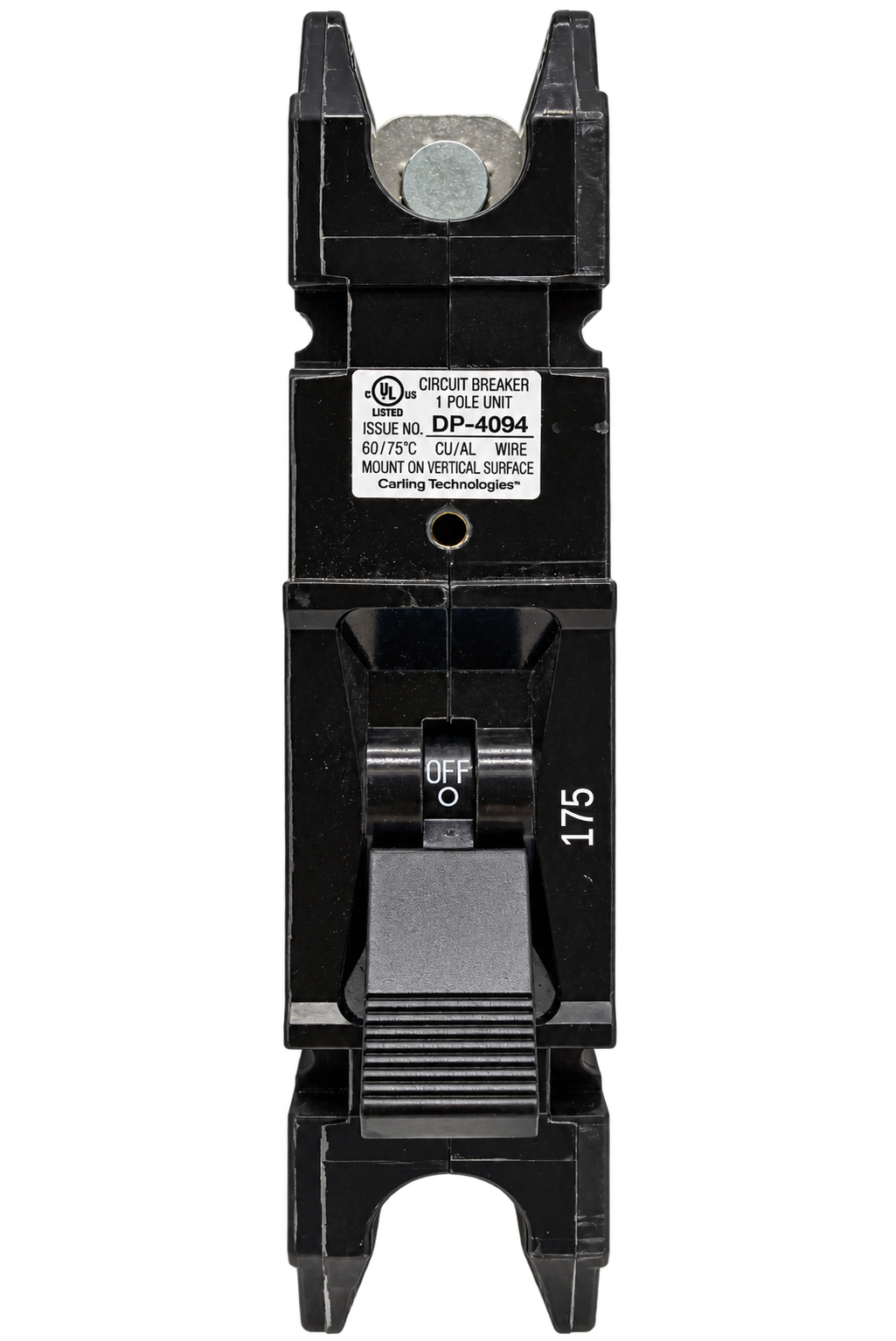

Carling F-Series 175A Single pole UL 489 Circuit Breaker
SKU CB-FA1-UL-DC-175A
Carling F-Series 175A single pole hydraulic-magnetic circuit breaker for 125V DC applications. UL 489 listed and cULus; black handle and 3/8-16 stud terminals.
- Color
- Black
- Series
- F-Series
- Voltage
- 125V DC
- Amperage
- 175A
- Pole Count
- 1 pole
- Device Type
- Circuit breaker
- Current Type
- DC
- Actuator Type
- Handle, one per pole
Stocked items typically ship the next business day from our US warehouse. 30-day returns on unused stocked items. Exclusions apply. Return policy · Shipping policy
Shopping as a guest. Sign in to save your cart and check out as a dealer.
About this product
FA1-B0-14-917-12A-BG is a Carling F-Series hydraulic-magnetic circuit breaker with 1 pole, for 125V DC applications. The model's approval designation is UL 489 listed and cULus.
Product overview
- Series and poles: F-Series; 1 pole
- Current: 175A
- Operating voltage: 125V DC
- Application: DC
Features
- Hydraulic-magnetic overcurrent protection
- Trip-free operation: the breaker trips on overload even when the handle is held ON
Installation details
- Actuator: Black handle, one per pole
- Main terminals: 3/8-16 stud
Part-number breakdown
- Reference manual
- Carling F-Series Details & Ordering Scheme (printed p. 4; family reference, verify exact model/rating)
- Complete manufacturer part number
- FA1-B0-14-917-12A-BG
- 1. Series
- F — F-Series
- 2. Actuator
- A — Handle, one per pole
- 3. Poles
- 1 — 1 pole
- 4. Circuit
- B — Series trip (current)
- 5. Auxiliary/alarm switch
- 0 — Without auxiliary switch
- 6. Frequency and delay
- 14 — DC medium
- 7. Current rating code
- 917 — 175 A
- 8. Terminal
- 1 — 3/8-16 stud, back connected (front mounted only)
- 9. Actuator color and legend
- 2 — Black actuator, white dual legend
- 10. Mounting
- A — 10-32 front mounting inserts; 10-32 screw clearance holes at back
- 11. Maximum application rating
- B — 125 VDC
- 12. Agency approval
- G — UL 489 Listed; cULus
Product details
- Color
- Black
- Series
- F-Series
- Voltage
- 125V DC
- Amperage
- 175A
- Pole Count
- 1 pole
- Device Type
- Circuit breaker
- Current Type
- DC
- Actuator Type
- Handle, one per pole
- Terminal Type
- 3/8-16 stud
- Actuator Color
- Black
- Actuator Style
- Handle, one per pole
