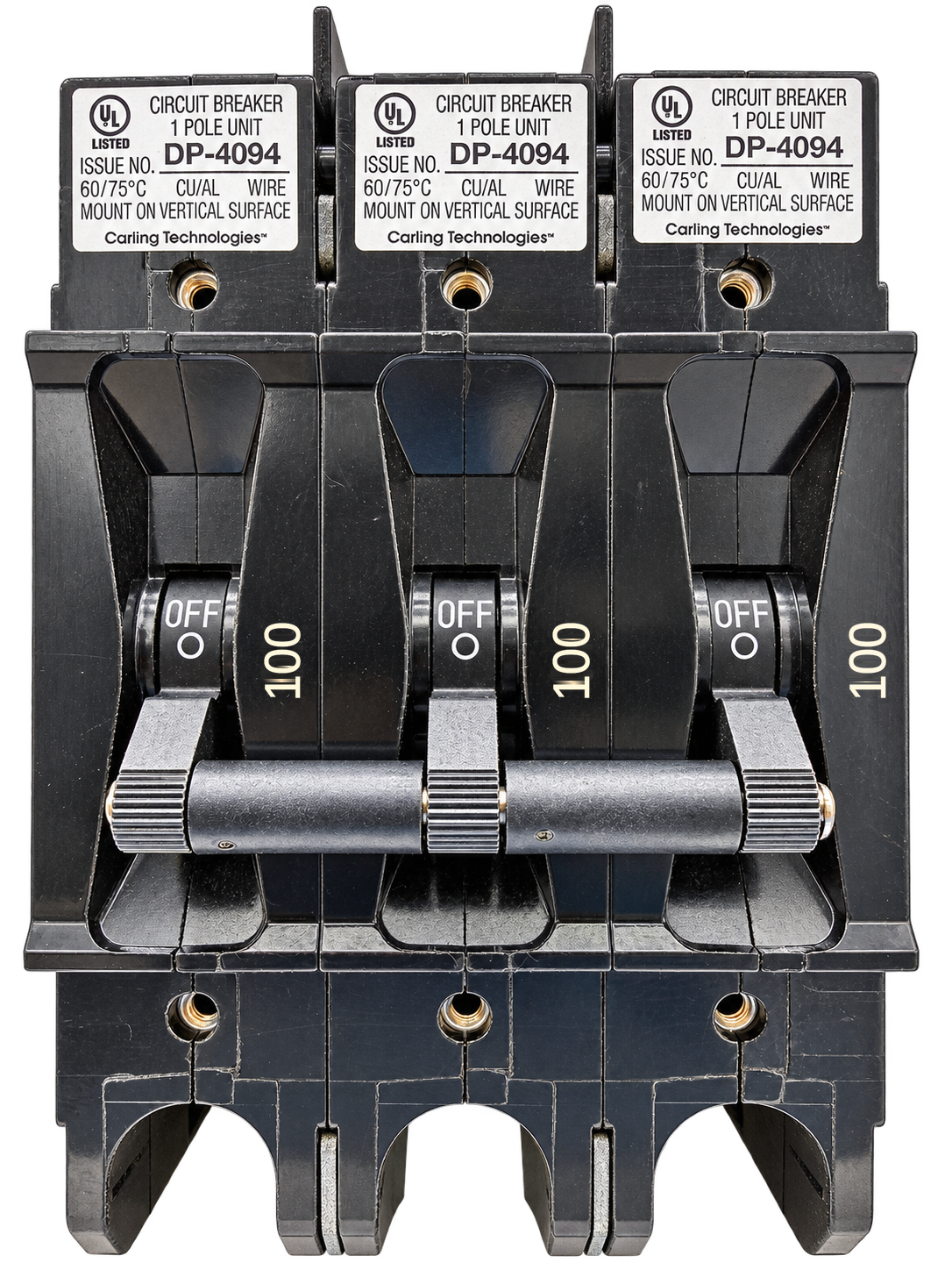

Carling E-Series 100A Triple pole UL 489 Circuit Breaker
SKU CB-EA3-UL-AC-100A
Carling E-Series 100A triple pole hydraulic-magnetic circuit breaker for 120/240V AC applications. UL 489 listed and CSA certified; black handle and 1/4-20 stud terminals.
- Color
- Black
- Series
- E-Series
- Voltage
- 120/240V AC
- Amperage
- 100A
- Pole Count
- 3 poles
- Device Type
- Circuit breaker
- Current Type
- AC
- Actuator Type
- Handle, one per pole
Stocked items typically ship the next business day from our US warehouse. 30-day returns on unused stocked items. Exclusions apply. Return policy · Shipping policy
Shopping as a guest. Sign in to save your cart and check out as a dealer.
About this product
EA3-B0-24-810-22A-CC is a Carling E-Series hydraulic-magnetic circuit breaker with 3 poles, for 120/240V AC applications. The model's approval designation is UL 489 listed and CSA certified.
Product overview
- Series and poles: E-Series; 3 poles
- Current: 100A
- Operating voltage: 120/240V AC
- Application: AC
Features
- Hydraulic-magnetic overcurrent protection
- Trip-free operation: the breaker trips on overload even when the handle is held ON
Installation details
- Actuator: Black handle, one per pole
- Main terminals: 1/4-20 stud
Part-number breakdown
- Reference manual
- Carling E-Series Details & Ordering Scheme (printed p. 6; family reference, verify exact model/rating)
- Complete manufacturer part number
- EA3-B0-24-810-22A-CC
- 1. Series
- E — E-Series
- 2. Actuator
- A — Handle, one per pole
- 3. Poles
- 3 — 3 poles
- 4. Circuit
- B — Series trip (current)
- 5. Auxiliary/alarm switch
- 0 — Without auxiliary switch
- 6. Frequency and delay
- 24 — 50/60 Hz medium
- 7. Current rating code
- 810 — 100 A
- 8. Terminal
- 2 — 1/4-20 stud, all terminals; back connected (front mounted only)
- 9. Actuator color and legend
- 2 — Black actuator, white dual legend
- 10. Mounting / barriers
- A — 6-32 back-connected mounting inserts, front mounted only
- 11. Maximum application rating
- C — 120/240 VAC; ordering scheme lists 100 A maximum
- 12. Agency approval
- C — UL 489 Listed; CSA Certified
Product details
- Color
- Black
- Series
- E-Series
- Voltage
- 120/240V AC
- Amperage
- 100A
- Pole Count
- 3 poles
- Device Type
- Circuit breaker
- Current Type
- AC
- Actuator Type
- Handle, one per pole
- Terminal Type
- 1/4-20 stud
- Actuator Color
- Black
- Actuator Style
- Handle, one per pole
