Carling C-Series CA2 breaker — CB-CA2-UL-DC-80A
SKU CB-CA2-UL-DC-80A

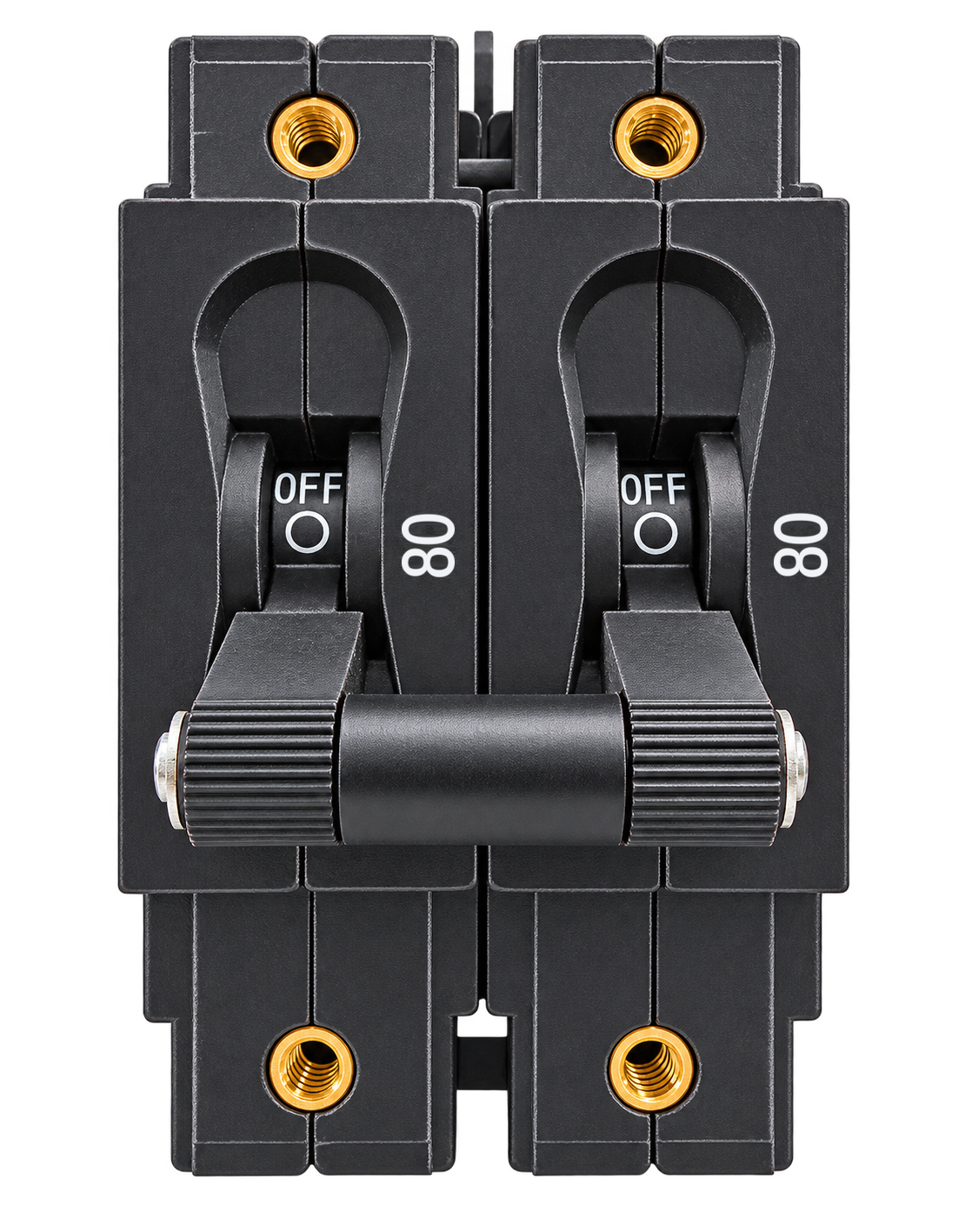

Carling C-Series CA2 circuit breaker. Manufacturer part number: CA2-B0-14-680-321-BG.
- Carling part number
- CA2-B0-14-680-321-BG
- Color
- Black
- Poles
- 2
- Series
- C-Series
- Amperage
- 80A
- Mounting
- Two 6-32 x 0.195-inch threaded inserts per pole; barriers
- Trip Free
- Yes - trips on overload with actuator held ON
- Actuator Type
- Handle, one per pole
Stocked items typically ship the next business day from our US warehouse. 30-day returns on unused stocked items. Exclusions apply. Return policy · Shipping policy
Shopping as a guest. Sign in to save your cart and check out as a dealer.
Part-number breakdown
- Reference manual
- Carling C-Series datasheet, UL 489 Handle Ordering Scheme (p. 8)
- Complete manufacturer part number
- CA2-B0-14-680-321-BG
- 1. Series
- C — C-Series
- 2. Actuator
- A — Handle, one per pole
- 3. Poles
- 2 — 2 poles
- 4. Circuit
- B — Series trip (current)
- 5. Auxiliary/alarm switch
- 0 — Without auxiliary switch
- 6. Frequency and delay
- 14 — DC medium
- 7. Current rating code
- 680 — 80 A
- 8. Terminal
- 3 — 1/4-20 stud
- 9. Actuator color and legend
- 2 — Black actuator; white legend
- 10. Mounting
- 1 — 6-32 × 0.195 in threaded inserts; barriers on multipole units
- 11. Maximum application rating
- B — 125 V DC
- 12. Agency approval
- G — UL 489 Listed; CSA Certified
Product details
- Carling part number
- CA2-B0-14-680-321-BG
- Color
- Black
- Poles
- 2
- Series
- C-Series
- Voltage
- Not specified
- Amperage
- 80A
- Mounting
- Two 6-32 x 0.195-inch threaded inserts per pole; barriers
- Trip Free
- Yes - trips on overload with actuator held ON
- Actuator Type
- Handle, one per pole
- Terminal Type
- 1/4-20 Stud
- Agency Approval
- UL 489 listed and CSA certified circuit breaker
- Terminal Torque
- 30-35 in-lb (3.4-4.0 N-m)
- Trip Indication
- Positive OFF-position indication on electrical trip
- Dielectric Strength
- 1,960 V, 50/60 Hz, 1 minute between electrically isolated terminals
- Mechanical Endurance
- 10,000 ON-OFF operations at 6 per minute with rated current and voltage
- Insulation Resistance
- Minimum 100 megohms at 500 VDC
- Operating Temperature
- -40 C to +85 C
- Mounting Hardware Torque
- 7-9 in-lb (0.8-1.0 N-m)
