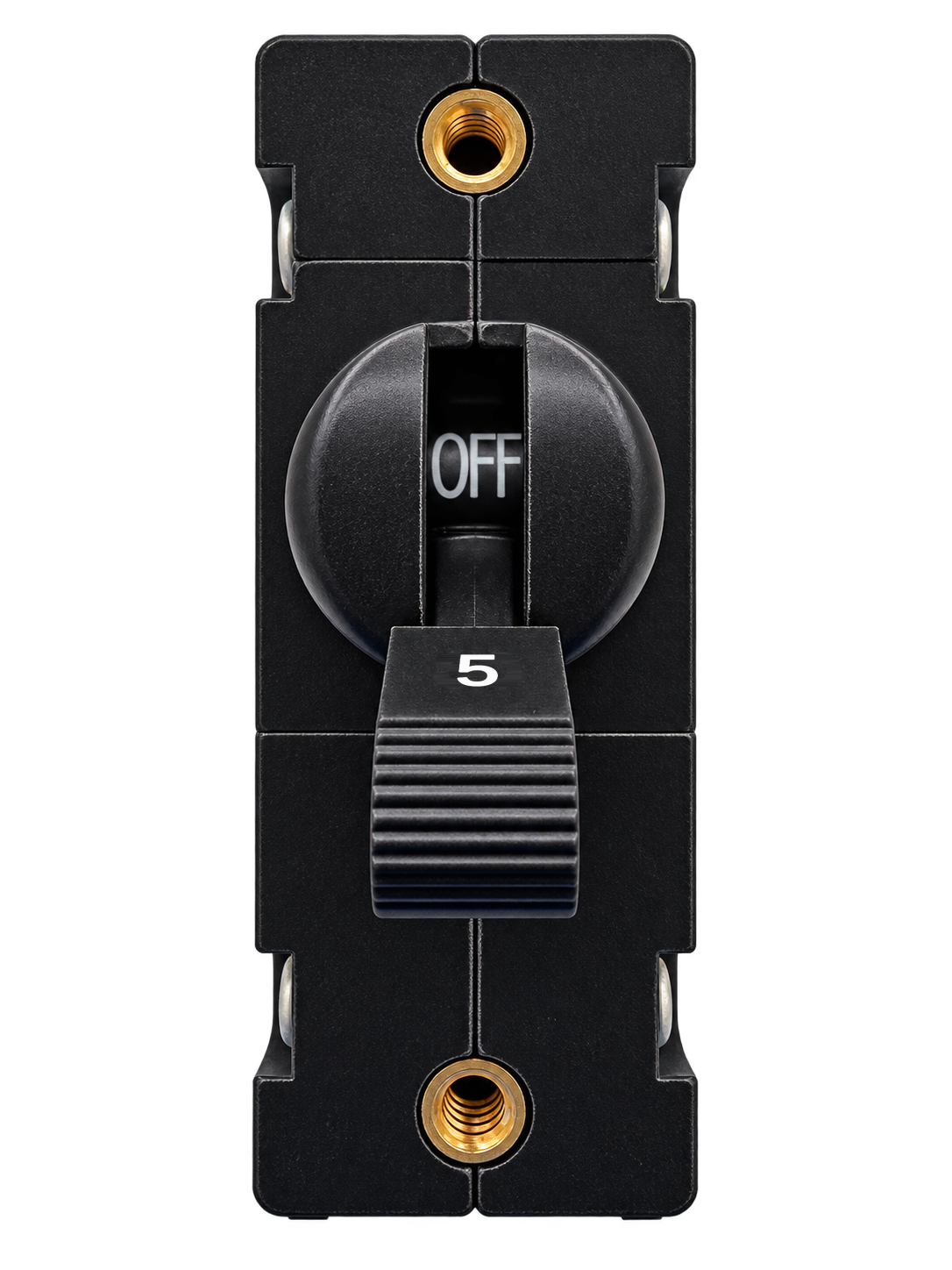

Carling B-Series 5A Single pole UL 489 Circuit Breaker
SKU CB-BA1-UL-120VAC-5A
Carling B-Series 5A single pole hydraulic-magnetic circuit breaker for 120V AC applications. UL 489 listed; black handle and 10-32 bus-type screw terminals.
- Color
- Black
- Series
- B-Series
- Voltage
- 120V AC
- Amperage
- 5A
- Pole Count
- 1 pole
- Device Type
- Circuit breaker
- Current Type
- AC
- Actuator Type
- Handle, one per pole
Stocked items typically ship the next business day from our US warehouse. 30-day returns on unused stocked items. Exclusions apply. Return policy · Shipping policy
Shopping as a guest. Sign in to save your cart and check out as a dealer.
About this product
BA1-B0-24-450-5DA-KG is a Carling B-Series hydraulic-magnetic circuit breaker with 1 pole, for 120V AC applications. The model's approval designation is UL 489 listed.
Product overview
- Series and poles: B-Series; 1 pole
- Current: 5A
- Operating voltage: 120V AC
- Application: AC
Features
- Hydraulic-magnetic overcurrent protection
- Trip-free operation: the breaker trips on overload even when the handle is held ON
Installation details
- Actuator: Black handle, one per pole
- Main terminals: 10-32 bus-type screw
Part-number breakdown
- Reference manual
- Carling B-Series Details & Ordering Scheme (printed p. 8; family reference, verify exact model/rating)
- Complete manufacturer part number
- BA1-B0-24-450-5DA-KG
- 1. Series
- B — B-Series
- 2. Actuator
- A — Handle, one per pole
- 3. Poles
- 1 — 1 pole
- 4. Circuit
- B — Series trip (current)
- 5. Auxiliary/alarm switch
- 0 — Without auxiliary switch
- 6. Frequency and delay
- 24 — 50/60 Hz medium
- 7. Current rating code
- 450 — 5 A
- 8. Terminal
- 5 — Screw 10-32 (bus type)
- 9. Actuator color and legend
- D — Black actuator, white ON–OFF legend
- 10. Mounting / barriers
- A — 6-32 × 0.195 in threaded inserts; barriers
- 11. Maximum application rating
- K — 120 VAC
- 12. Agency approval
- G — UL 489 Listed
Product details
- Color
- Black
- Series
- B-Series
- Voltage
- 120V AC
- Amperage
- 5A
- Pole Count
- 1 pole
- Device Type
- Circuit breaker
- Current Type
- AC
- Actuator Type
- Handle, one per pole
- Terminal Type
- 10-32 Screw (Bus Type)
- Actuator Color
- Black
- Actuator Style
- Handle, one per pole
