Blue Sea Systems ST CLB Circuit Breaker Block - 6 Independent Circuits
SKU BLUE-5050
- Circuits
- 6
- Maximum Amperage
- 32A (per circuit); 40A (per jumped circuit group)
- Maximum Voltage
- 32V DC
- Mounting
- #8 Screw (M4) or #8 Nut
- Source
- Independent Source
- Minimum Operating Temperature
- -10° C
- Maximum Operating Temperature
- 60° C
- Mounting Centers
- 5.63in (143 mm)
Stocked items typically ship the next business day from our US warehouse. 30-day returns on unused stocked items. Exclusions apply. Return policy · Shipping policy
Shopping as a guest. Sign in to save your cart and check out as a dealer.
About this product

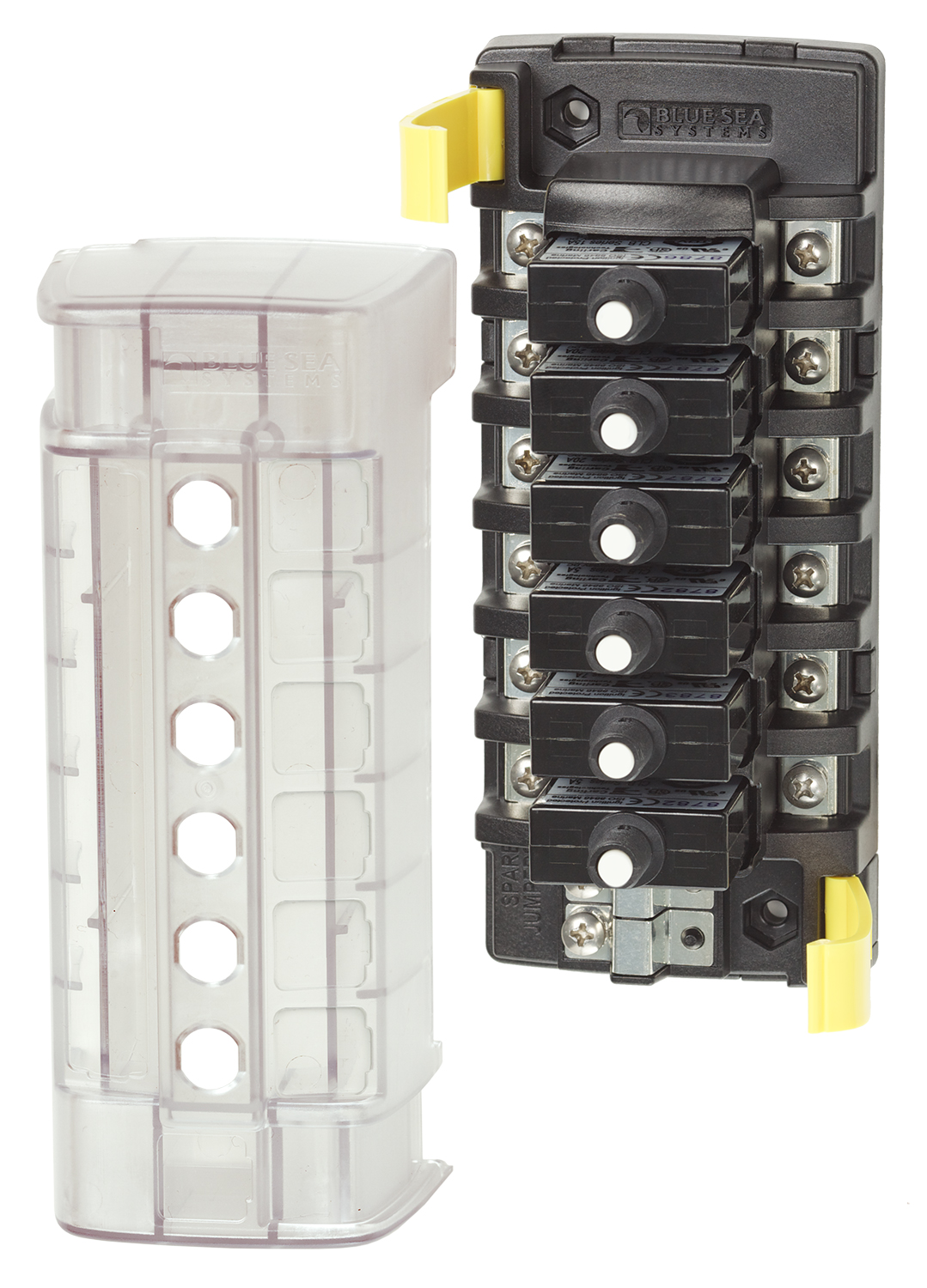

ST CLB Circuit Breaker Block - 6 Independent Circuits. Quick connect clips allow circuit breakers to snap easily into place. Tin-plated copper busses and screw terminals.
Key features
- Quick connect clips allow circuit breakers to snap easily into place
- Tin-plated copper busses and screw terminals

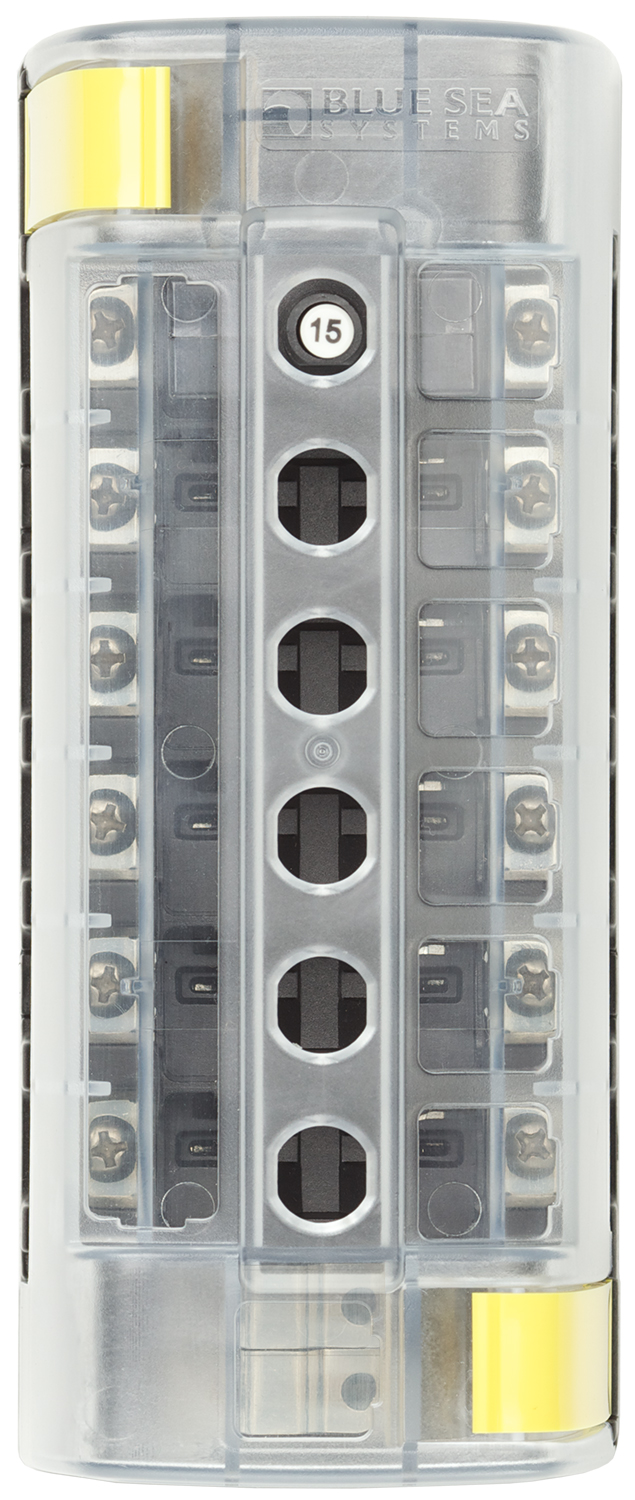

- Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
- Easy to open clip on cover
- Breakouts allow wire access in two directions
- Accepts ring terminals

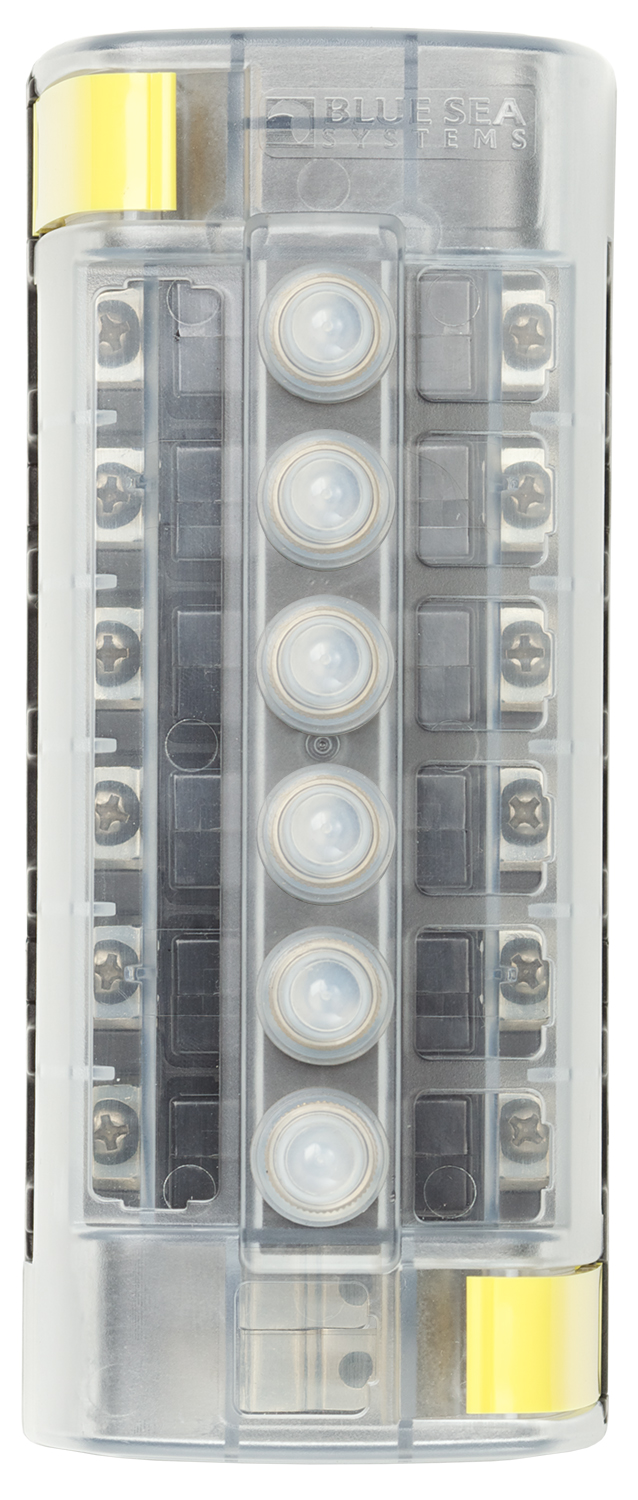

- Optional push button waterproof boots or dress nuts can be installed over cover
- Accepts square labels
For installation planning, check the manufacturer's ratings: maximum amperage: 32A (per circuit); 40A (per jumped circuit group); maximum voltage: 32V DC; mounting: #8 Screw (M4) or #8 Nut; mounting centers: 5.63in (143 mm).
Manufacturer part 5050. Confirm the circuit rating, mounting arrangement, and required accessories against the manufacturer specifications before selecting this part.
Manufacturer specifications
- Circuits
- 6
- Maximum Amperage
- 32A (per circuit); 40A (per jumped circuit group)
- Maximum Voltage
- 32V DC
- Mounting
- #8 Screw (M4) or #8 Nut
- Source
- Independent Source
- Minimum Operating Temperature
- -10° C
- Maximum Operating Temperature
- 60° C
- Mounting Centers
- 5.63in (143 mm)
- Screw Terminal Type
- #8-32 Screws with Captive Star Lock Washer
- Height
- 6.69in (169.93 mm)
- Weight
- 0.75lb (0.34 kg)
Product details
- Voltage
- 32V DC
- Function
- Circuit Breaker Blocks
- Device Type
- Circuit Breaker Blocks
- Manufacturer
- Blue Sea Systems
- Product Type
- Circuit Breaker Blocks
